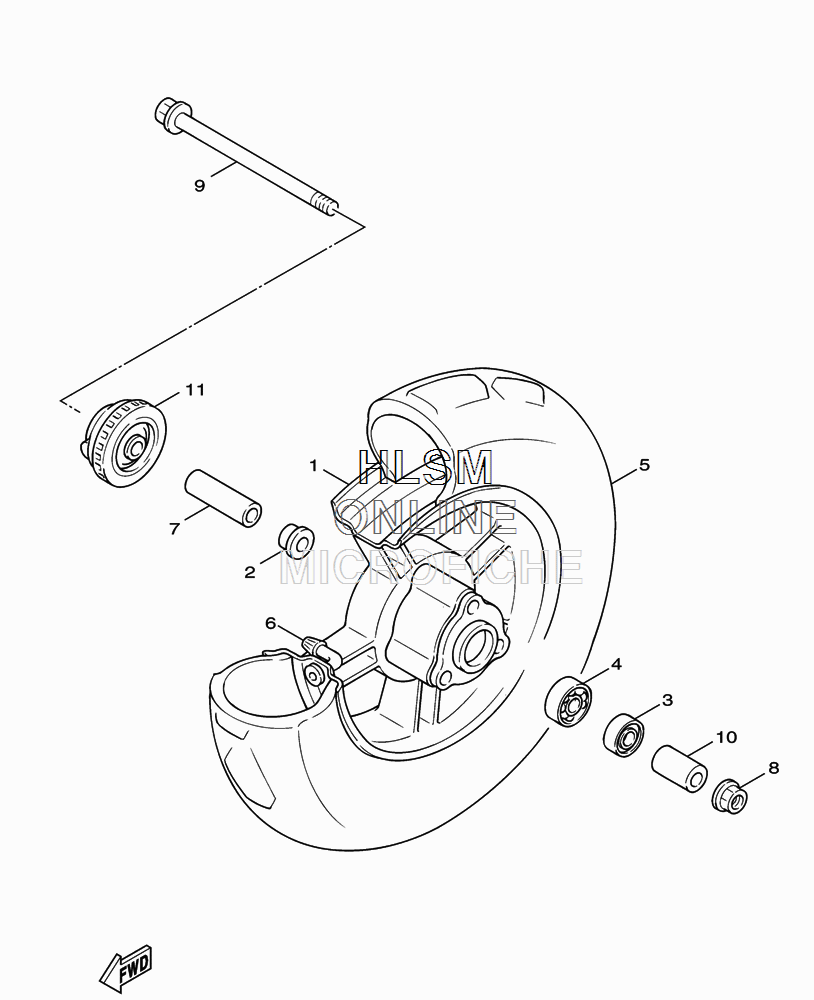

WHEEL - FRONT для Yamaha ZUMA - 2010 года выпуска`
-
№АртикулНазвание
-
14VP-F5168-00-33 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
220A-F5115-00-00 FLANGE, SPACER 1FLANGE, SPACER 1
-
393102-17838-00 OIL SEALOIL SEAL
-
493306-300Y4-00 BEARINGBEARING
-
594112-108S3-00 TIRE (120/90-10 56J TL)TIRE (120/90-10 56J TL)
-
693900-00802-00 VALVE, RIM TR413VALVE, RIM TR413
-
74VP-F5183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
890185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
94VP-F5181-00-00 AXLE, WHEELAXLE, WHEEL
-
1090387-108S0-00 COLLARCOLLAR
-
115DA-F5190-10-00 GEAR UNIT ASSYGEAR UNIT ASSY
