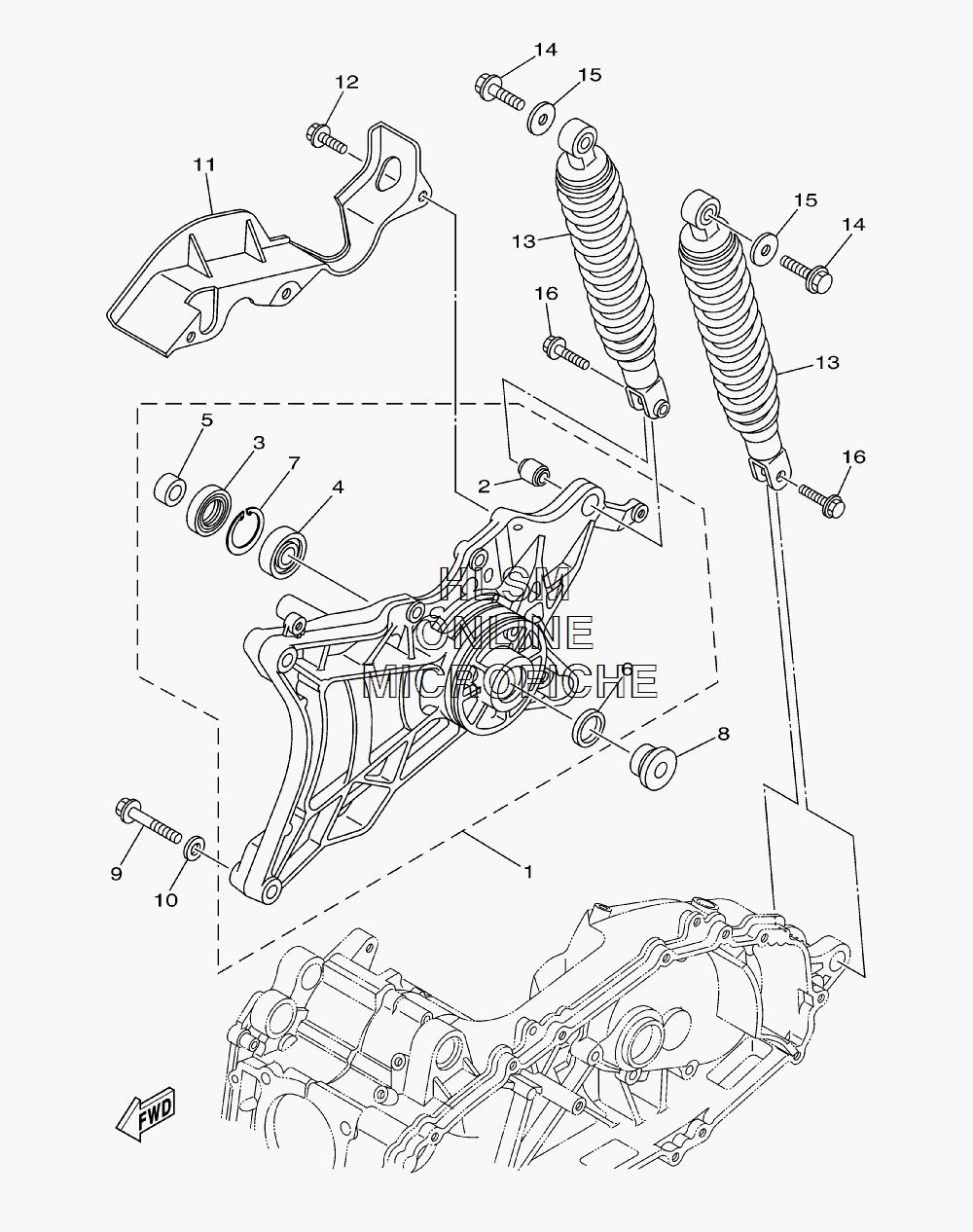

SUSPENSION - REAR ARM W/ SHOCK для Yamaha MORPHOUS - 2007 года выпуска`
-
№АртикулНазвание
-
11B7-22100-01-00 REAR ARM ASSYREAR ARM ASSY
-
25RU-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
393106-26005-00 ...OIL SEAL, DD-TYPE...OIL SEAL, DD-TYPE
-
493306-30212-00 ...BEARING...BEARING
-
590387-15006-00 ...COLLAR...COLLAR
-
693109-28043-00 ...OIL SEAL, SDO-TYPE...OIL SEAL, SDO-TYPE
-
799009-42500-00 ...CIRCLIP...CIRCLIP
-
890387-15005-00 COLLARCOLLAR
-
995817-10060-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-120K4-00 WASHER, PLATEWASHER, PLATE
-
111B7-22866-00-00 COVER, REARCOVER, REAR
-
1290109-063F1-00 BOLTBOLT
-
131B7-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1495827-10035-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1590201-105A2-00 WASHER, PLATEWASHER, PLATE
-
1695817-08030-00 BOLT, FLANGEBOLT, FLANGE
