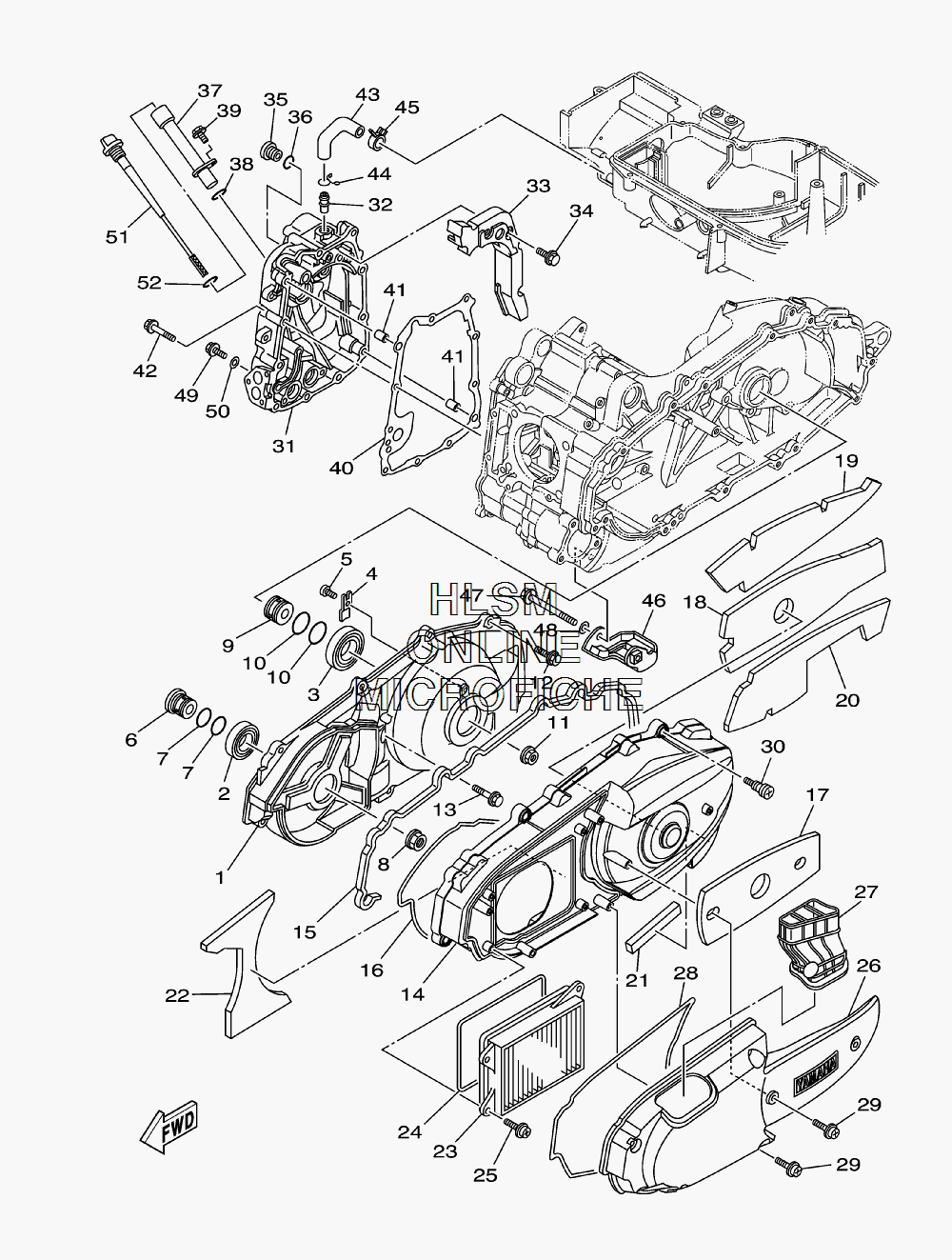

CRANKCASE COVER для Yamaha MORPHOUS - 2007 года выпуска`
-
№АртикулНазвание
-
15RU-15411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
293306-00616-00 BEARINGBEARING
-
393306-00708-00 BEARINGBEARING
-
45RU-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
590149-06004-00 SCREWSCREW
-
65RU-11445-00-00 SPACERSPACER
-
793210-25552-00 O-RINGO-RING
-
890179-18002-00 NUTNUT
-
95VG-17649-00-00 SPACERSPACER
-
1093210-30611-00 O-RINGO-RING
-
1190179-14469-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1295027-06025-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
1395817-08040-00 BOLT, FLANGEBOLT, FLANGE
-
145RU-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
155RU-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
165RU-15472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
171B7-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
185RU-15326-00-00 DAMPER, ENGINE MOUNT 2DAMPER, ENGINE MOUNT 2
-
195RU-15335-00-00 DAMPER 3DAMPER 3
-
205RU-15337-00-00 DAMPER 4DAMPER 4
-
215RU-15338-00-00 DAMPER, ENGINE MOUNT 5DAMPER, ENGINE MOUNT 5
-
225RU-15491-00-00 PROTECTORPROTECTOR
-
235RU-15407-02-00 ELEMENT 1ELEMENT 1
-
245RU-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
2590159-06013-00 SCREW WITH WASHERSCREW WITH WASHER
-
261B7-15471-00-00 DUCT, AIRDUCT, AIR
-
271B7-15473-00-00 DUCT, AIRDUCT, AIR
-
285RU-15434-00-00 SEAL, CLEANER COVERSEAL, CLEANER COVER
-
2990159-06013-00 SCREW WITH WASHERSCREW WITH WASHER
-
303KJ-15481-00-00 BOLT 1BOLT 1
-
311B7-15417-00-00 COVER, CAPCOVER, CAP
-
32371-11167-01-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
335RU-1541A-00-00 STAY, CRANKCASECOVER 1STAY, CRANKCASECOVER 1
-
3490119-06109-00 BOLT WITH WASHERBOLT WITH WASHER
-
3536Y-15189-00-00 PLUGPLUG
-
3693210-16325-00 O-RINGO-RING
-
371B7-13132-00-00 JOINTJOINT
-
3893210-19123-00 O-RINGO-RING
-
3995027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
405RU-15453-00-00 GASKETGASKET
-
4199530-10114-00 PIN, DOWELPIN, DOWEL
-
4295027-06040-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
431B7-1531A-00-00 HOSE, BREATHER 1HOSE, BREATHER 1
-
4490467-16195-00 CLIP, SCISSORCLIP, SCISSOR
-
4590468-08104-00 CLIPCLIP
-
461B7-28418-00-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
4795827-08090-00 BOLT, FLANGEBOLT, FLANGE
-
4892907-08200-00 WASHER (6TC)WASHER (6TC)
-
4995027-06012-00 BOLT, FLANGE (4MY)BOLT, FLANGE (4MY)
-
5090430-06014-00 GASKETGASKET
-
511B7-15363-00-00 PLUG, OILPLUG, OIL
-
5293210-19123-00 O-RINGO-RING
