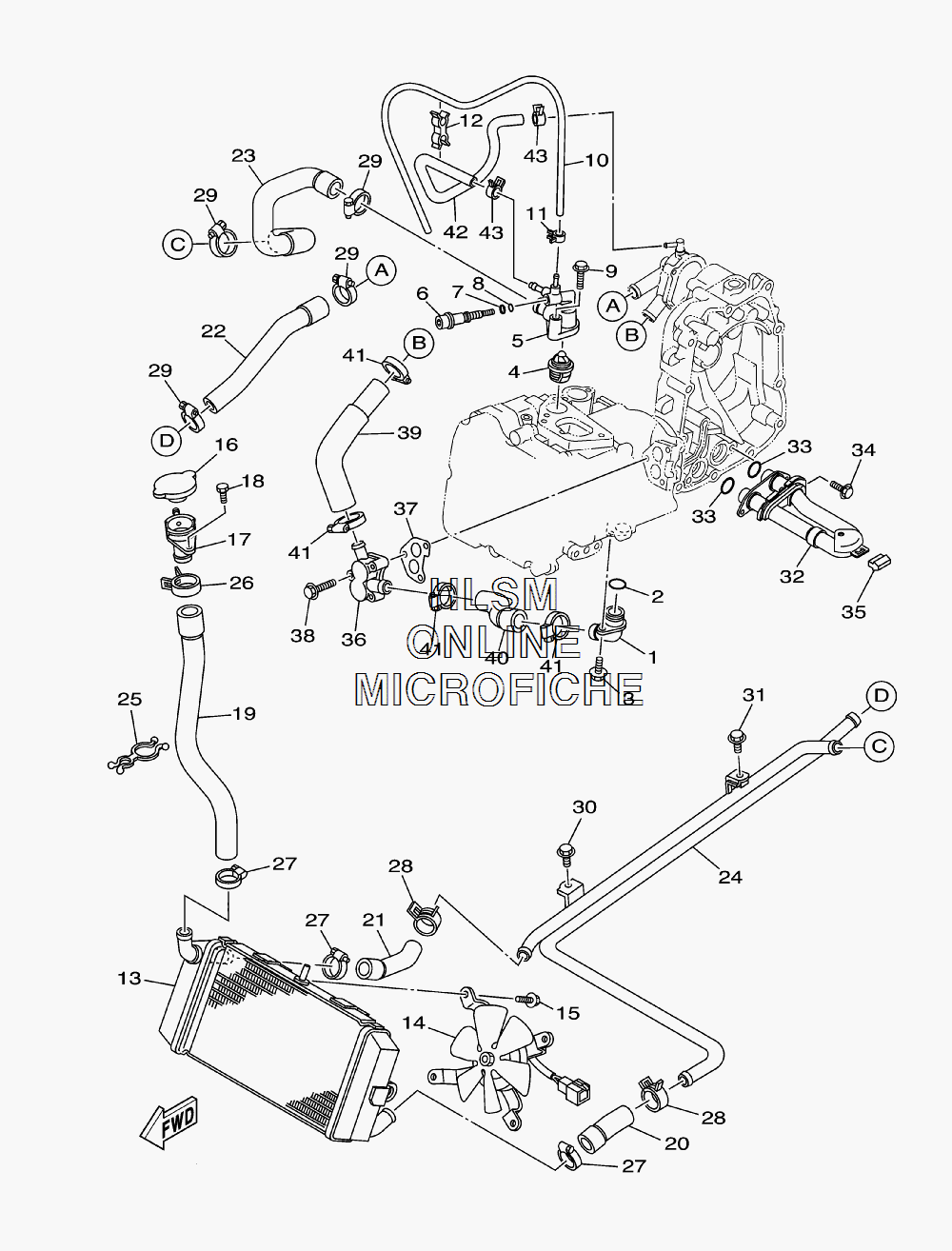

RADIATOR W/ HOSES для Yamaha MORPHOUS - 2007 года выпуска`
-
№АртикулНазвание
-
15RU-12446-01-00 JOINTJOINT
-
293210-18417-00 O-RINGO-RING
-
390105-06049-00 BOLT, FLANGEBOLT, FLANGE
-
45RU-12411-00-00 THERMOSTATTHERMOSTAT
-
55RU-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
65RU-13573-00-00 BOLT 1BOLT 1
-
793210-064A5-00 O-RINGO-RING
-
893210-04122-00 O-RINGO-RING
-
995027-06035-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
101B7-14349-00-00 PIPEPIPE
-
1190467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
1290464-11004-00 CLAMPCLAMP
-
135RU-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
145RU-12405-00-00 BLOWER ASSYBLOWER ASSY
-
155GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
164JH-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
174HC-12591-00-00 SUPPORT, FILLER NECKSUPPORT, FILLER NECK
-
1897027-05012-00 BOLTBOLT
-
191B7-12481-00-00 PIPE 1PIPE 1
-
201B7-12482-00-00 PIPE 2PIPE 2
-
211B7-12483-00-00 PIPE 3PIPE 3
-
221B7-12484-00-00 PIPE 4PIPE 4
-
231B7-12485-00-00 PIPE 5PIPE 5
-
241B7-12476-00-00 PIPE 6PIPE 6
-
2590464-26114-00 CLAMPCLAMP
-
2690467-26131-00 CLIP (3YX)CLIP (3YX)
-
2790450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2890467-22100-00 CLIP (34X)CLIP (34X)
-
2990450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3095807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3195807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
325RU-12466-00-00 EXCHANGER, HEATEXCHANGER, HEAT
-
3393210-18003-00 O-RINGO-RING
-
3490105-06049-00 BOLT, FLANGEBOLT, FLANGE
-
355RU-12437-00-00 STOPPERSTOPPER
-
365RU-1246A-00-00 COVER 1COVER 1
-
375RU-12414-00-00 GASKET, COVERGASKET, COVER
-
3895027-06035-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
395RU-12477-00-00 PIPE 7PIPE 7
-
405RU-1248A-00-00 PIPE 8PIPE 8
-
4190450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
421B7-1243A-00-00 HOSE 1HOSE 1
-
4390467-11090-00 CLIP, SCISSORCLIP, SCISSOR
