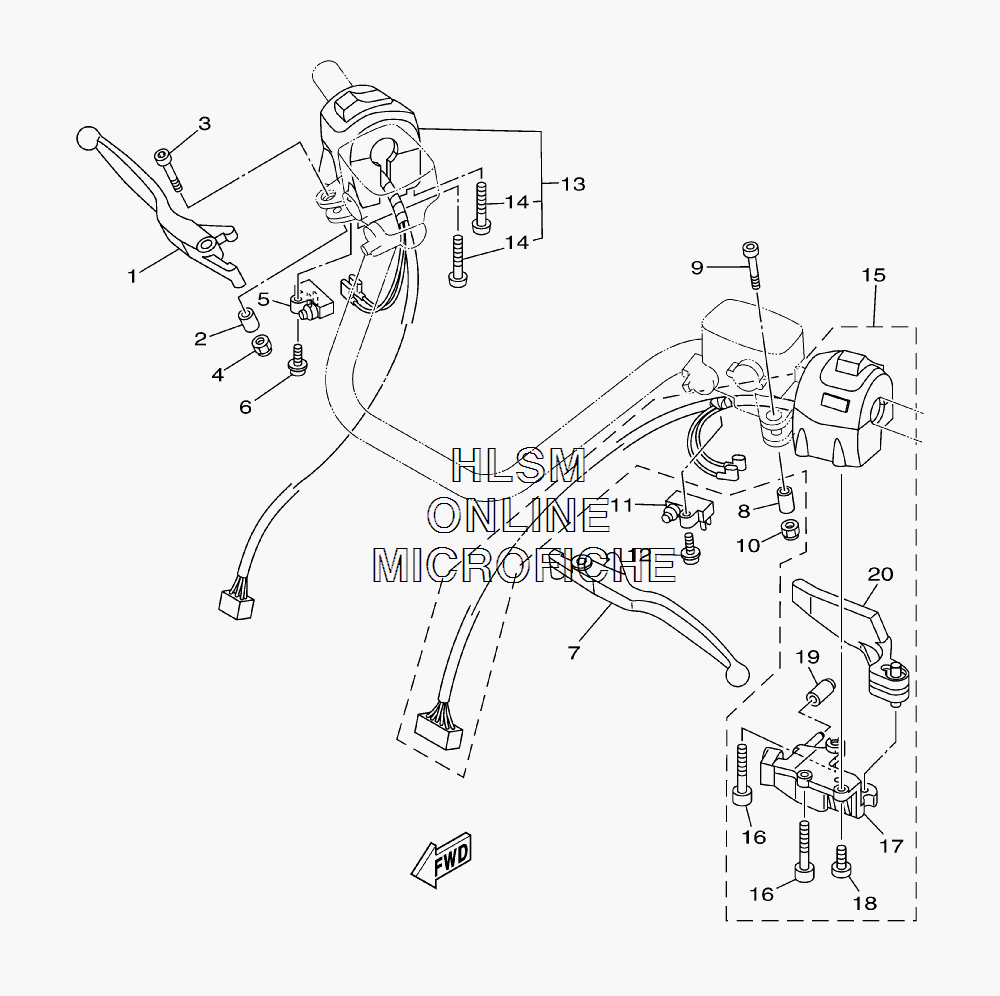

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha MORPHOUS - 2007 года выпуска`
-
№АртикулНазвание
-
15GJ-83922-00-00 LEVER 2LEVER 2
-
236Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
390110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
495607-06100-00 NUT, UNUT, U
-
536Y-82917-00-00 SWITCHSWITCH
-
697607-04216-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
75GJ-83912-00-00 LEVER 1LEVER 1
-
836Y-83913-01-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
990110-06074-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1095607-06100-00 NUT, UNUT, U
-
1136Y-83980-01-00 SWITCH,ALARMSWITCH,ALARM
-
1297607-04216-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
131B7-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1498507-05050-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
151B7-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1691317-05055-00 ...BOLT, SOCKET...BOLT, SOCKET
-
175RB-26396-01-00 ...HOLDER, ADJUSTING...HOLDER, ADJUSTING
-
1898507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
195RB-13569-00-00 ...PLUG, BLIND...PLUG, BLIND
-
205VU-83930-00-00 ...LEVER LOCK ASSY...LEVER LOCK ASSY
