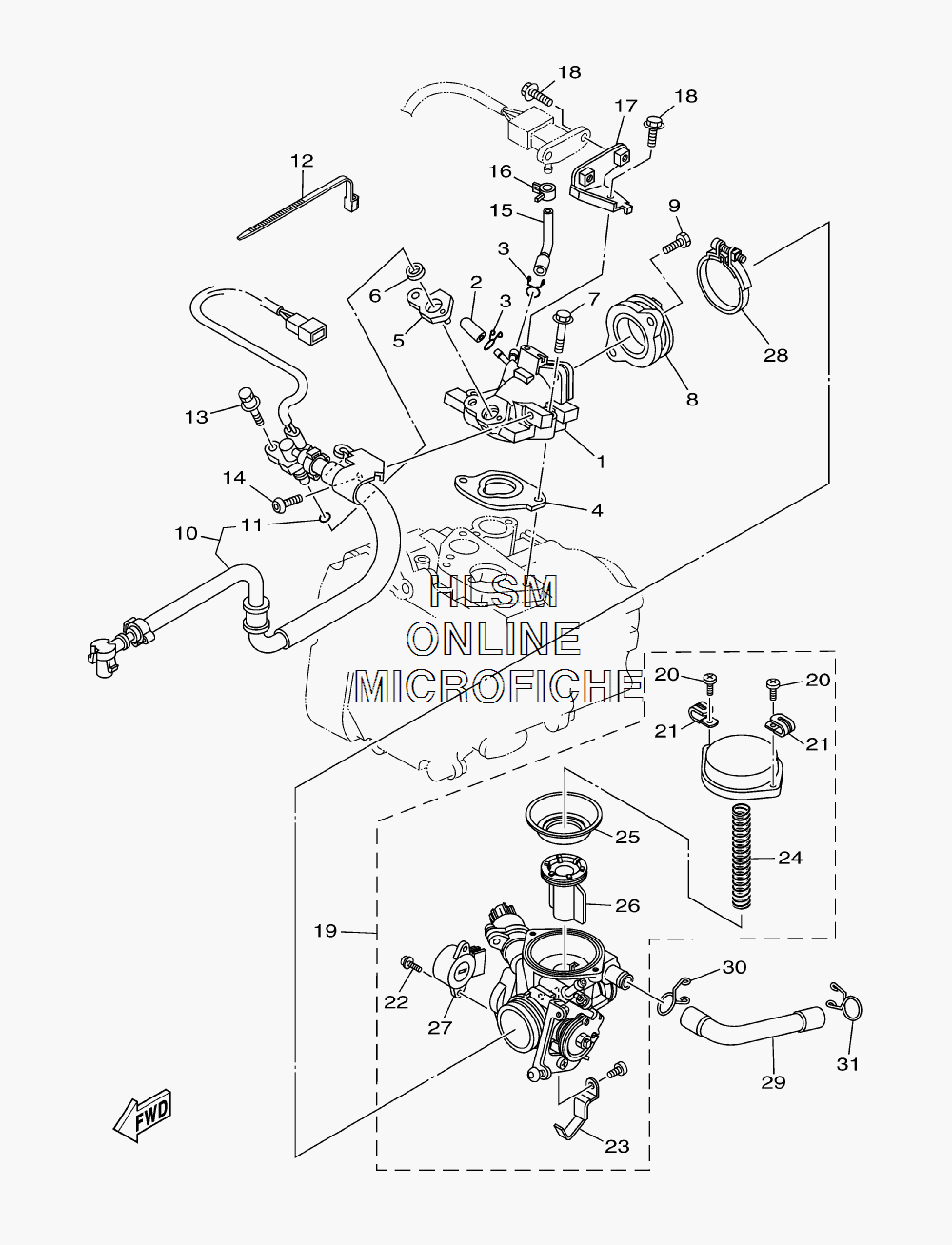

AIR CLEANER ASSY. W/ INTAKE для Yamaha MORPHOUS - 2007 года выпуска`
-
№АртикулНазвание
-
15VG-13585-00-00 MANIFOLDMANIFOLD
-
25PX-13569-00-00 PLUG, BLINDPLUG, BLIND
-
390467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
45VG-13595-00-00 JOINTJOINT
-
55RU-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
690430-09005-00 GASKETGASKET
-
795027-06035-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
85VG-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
997027-06020-00 BOLTBOLT
-
101B7-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
115CA-14147-00-00 ...O-RING...O-RING
-
1290464-13073-00 CLAMPCLAMP
-
1390109-06170-00 BOLTBOLT
-
1492017-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
155RU-13895-00-00 HOSE, AIRHOSE, AIR
-
1690467-07138-00 CLIPCLIP
-
175RU-14291-00-00 BRACKET 1BRACKET 1
-
1895027-06012-00 BOLT, FLANGE (4MY)BOLT, FLANGE (4MY)
-
191B7-13750-11-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
205LB-14216-00-00 ...SCREW...SCREW
-
214KL-14415-00-00 ...HOLDER, WIRE...HOLDER, WIRE
-
225CA-14216-00-00 ...SCREW...SCREW
-
235LP-15484-00-00 ...CLAMP 2...CLAMP 2
-
245VG-14286-00-00 ...SPRING...SPRING
-
255RU-14368-01-00 ...DIAPHRAGM ASSY 1...DIAPHRAGM ASSY 1
-
265RU-14313-00-00 ...SUCTION PISTON...SUCTION PISTON
-
275RU-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
2890450-53004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
291B7-13892-00-00 HOSE, AIR 2HOSE, AIR 2
-
3090467-170A2-00 CLIPCLIP
-
3190467-18196-00 CLIPCLIP
