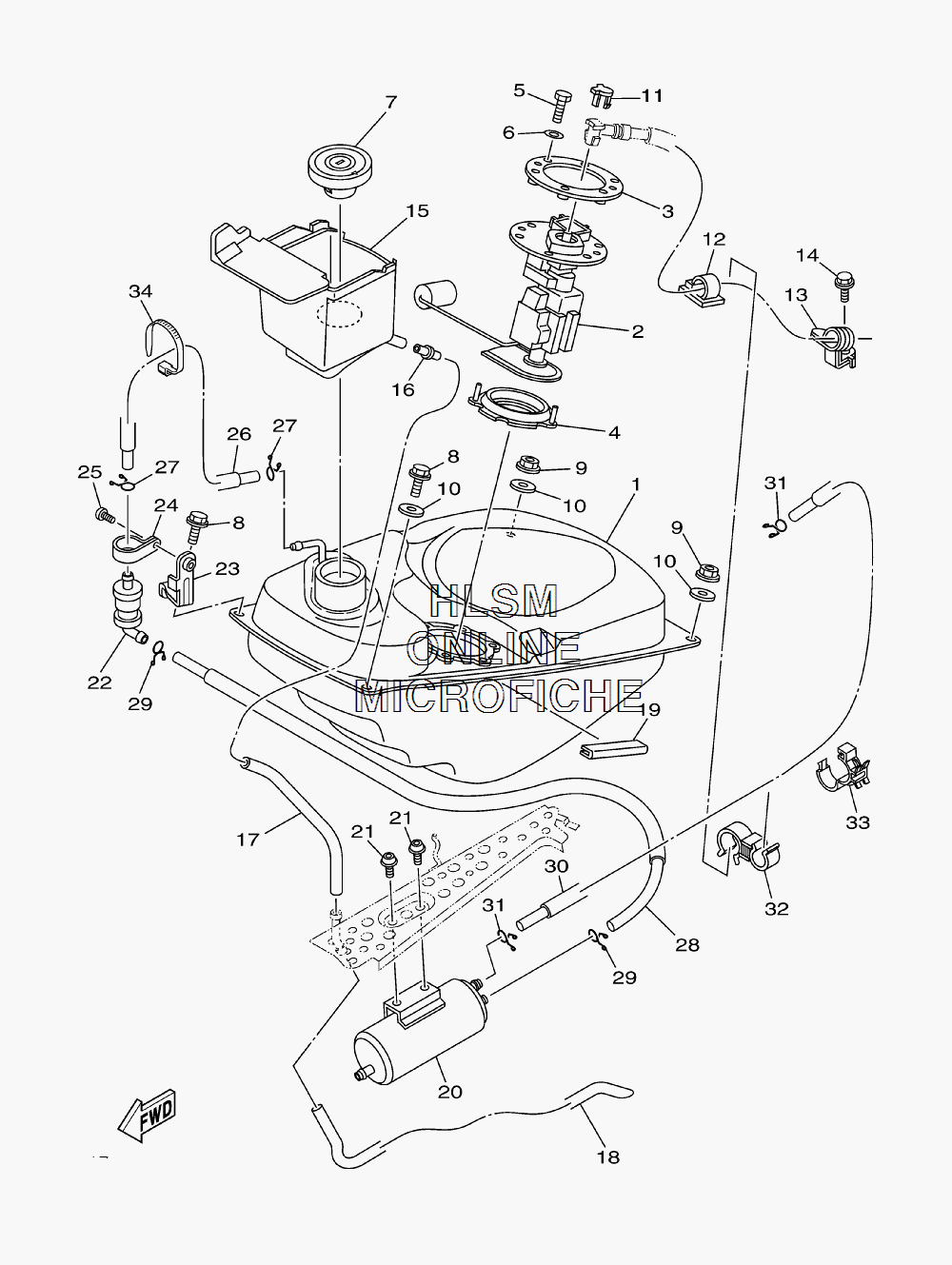

FUEL TANK ASSY. для Yamaha MORPHOUS - 2007 года выпуска`
-
№АртикулНазвание
-
11B7-24110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
21B7-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
35CA-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
45CA-2414G-00-00 SEALSEAL
-
597007-05020-00 BOLT (3JK)BOLT (3JK)
-
692907-05600-00 WASHER, PLATEWASHER, PLATE
-
754K-24602-00-00 CAP ASSYCAP ASSY
-
895827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
995707-06500-00 NUT, FLANGE (4MV)NUT, FLANGE (4MV)
-
1090201-06071-00 WASHER, PLATEWASHER, PLATE
-
115VU-24135-00-00 CLAMP 1CLAMP 1
-
1290464-20003-00 CLAMPCLAMP
-
131B7-24667-00-00 GUIDE, PIPEGUIDE, PIPE
-
1495827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
151B7-2414A-01-00 COVER, FILLERCOVER, FILLER
-
164JP-21753-00-00 BOSS, CONNECTORBOSS, CONNECTOR
-
171B7-24318-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
181B7-24312-00-00 PIPE 2PIPE 2
-
194BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
201B7-24170-10-00 CANISTER ASSYCANISTER ASSY
-
2190111-06009-00 BOLT (3DM)BOLT (3DM)
-
225RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
231B7-24216-10-00 STAYSTAY
-
2490461-15139-00 CLAMPCLAMP
-
2598907-05012-00 BOLT, SOCKETBOLT, SOCKET
-
261B7-24313-10-00 PIPE 3PIPE 3
-
2790467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
281B7-24314-10-00 PIPE 4PIPE 4
-
2990467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
301B7-24315-10-00 PIPE 5PIPE 5
-
3190467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
3290464-18009-00 CLAMPCLAMP
-
3390464-15192-00 CLAMPCLAMP
-
3490464-15195-00 CLAMP (165*7.0MM)CLAMP (165*7.0MM)
