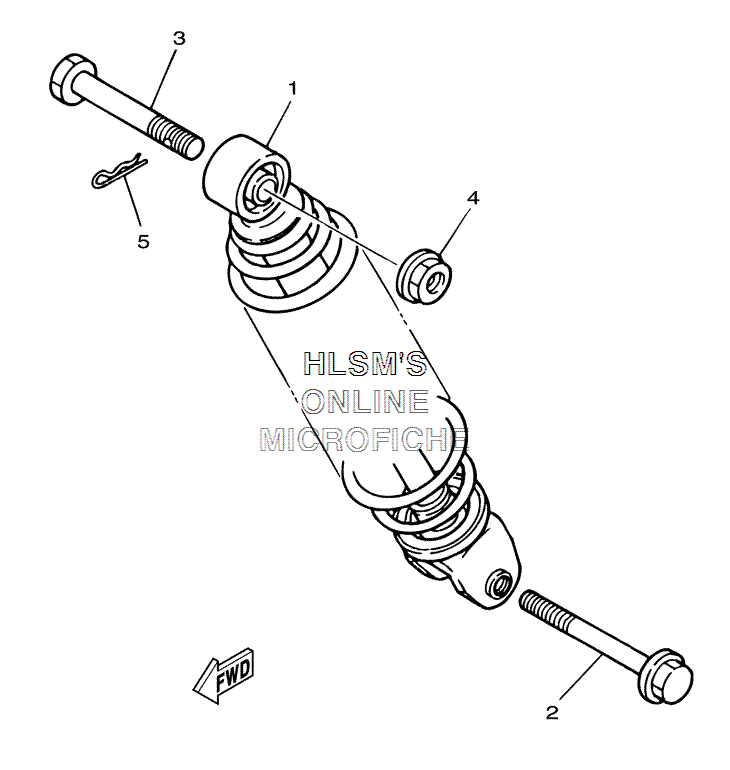

SUSPENSION - REAR SHOCK для Yamaha ZUMA - 2004 года выпуска`
-
№АртикулНазвание
-
15JU-F2210-00-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
290105-08121-00 BOLT, FLANGEBOLT, FLANGE
-
390102-10031-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
495707-10500-00 NUT, FLANGENUT, FLANGE
-
590468-12006-00 CLIPCLIP
