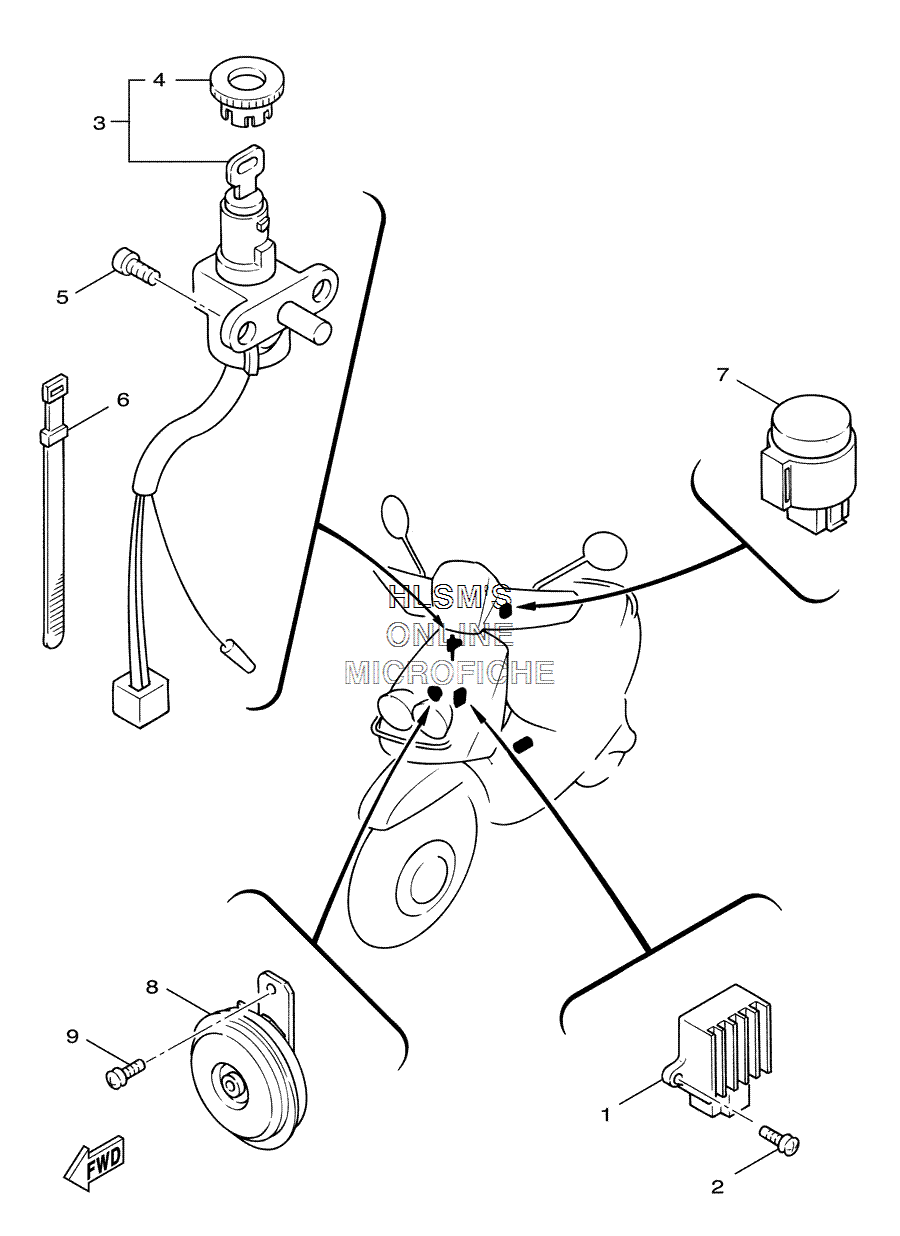

ELECTRICAL для Yamaha ZUMA - 2004 года выпуска`
-
№АртикулНазвание
-
13GF-H1960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
298507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
35PJ-H2501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
44VP-H2552-10-00 ...CAP, SWITCH...CAP, SWITCH
-
59760L-06216-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
623Y-H3936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
75PJ-H3350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
84KP-H3371-01-00 HORNHORN
-
998507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
