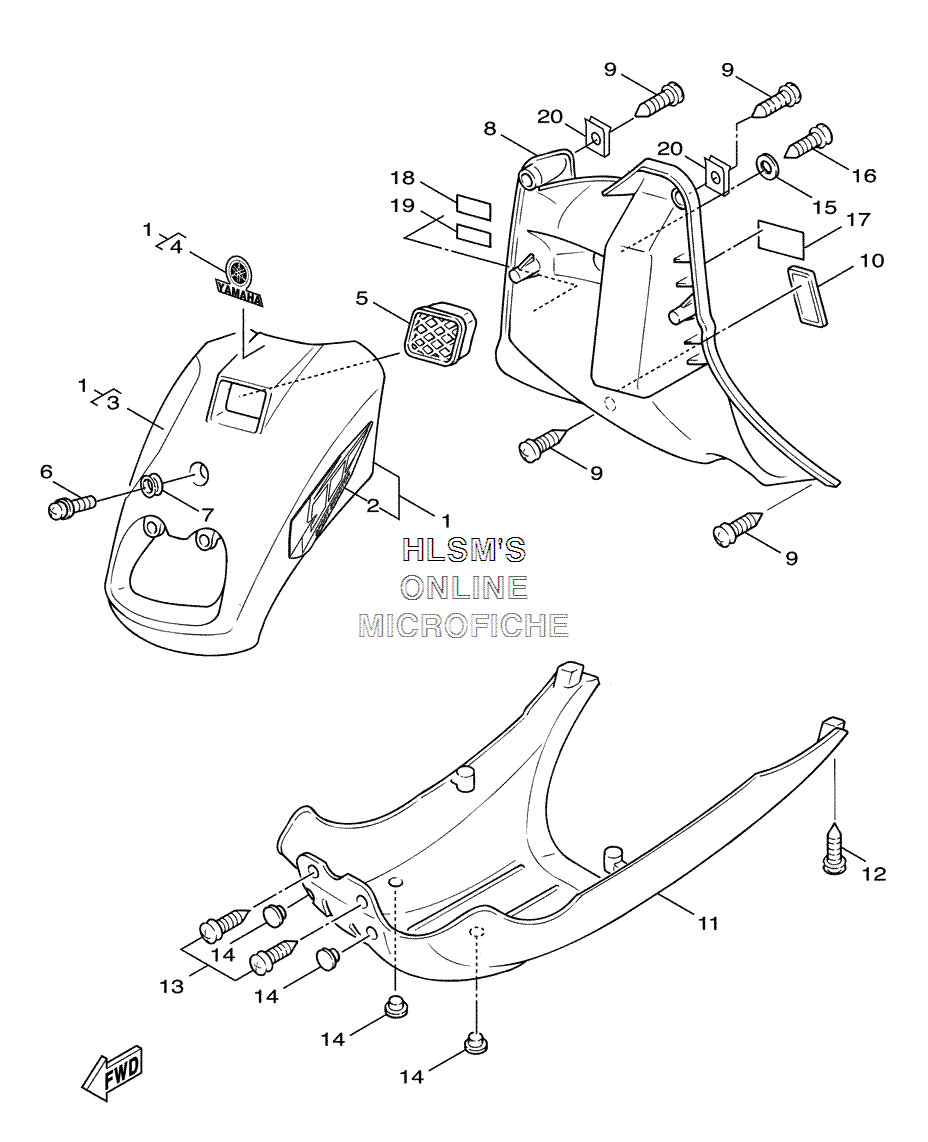

COWLING W/ LEG SHIELD для Yamaha ZUMA - 2004 года выпуска`
-
№АртикулНазвание
-
15PJ-X2831-00-EY LEG SHIELD 1 (HTR)LEG SHIELD 1 (HTR)
-
15PJ-X2831-00-P2 LEG SHIELD 1 (S3)LEG SHIELD 1 (S3)
-
15PJ-X2831-20-P0 LEG SHIELD 1 (DPBMC)LEG SHIELD 1 (DPBMC)
-
25PJ-F832B-00-00 ...EMBLEM 1 (DPBMC)...EMBLEM 1 (DPBMC)
-
35PJ-F832C-00-00 ...GRAPHIC 1 (DPBMC)...GRAPHIC 1 (DPBMC)
-
44TH-F152A-E0-00 ...EMBLEM 3 (DPBMC)...EMBLEM 3 (DPBMC)
-
44TH-F152A-J0-00 ...EMBLEM 3 (HTR)...EMBLEM 3 (HTR)
-
44TH-F152A-H0-00 ...EMBLEM 3 (S3)...EMBLEM 3 (S3)
-
54VP-F834V-00-00 PROTECTOR 1PROTECTOR 1
-
695880-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790387-062M9-00 COLLARCOLLAR
-
84VP-F8300-01-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
997707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
105FM-F8349-00-00 CAPCAP
-
114VP-F8385-01-00 COVER, LOWERCOVER, LOWER
-
1297707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1397707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
143GF-F6199-00-00 PLUG, BLINDPLUG, BLIND
-
1590201-06416-00 WASHER, PLATEWASHER, PLATE
-
1690159-06811-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
174VP-F1668-00-00 LABEL, TIRELABEL, TIRE
-
185PJ-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
195PJ-F179X-00-00 PLATE, EPAPLATE, EPA
-
2090183-05807-00 NUT, SPRINGNUT, SPRING
