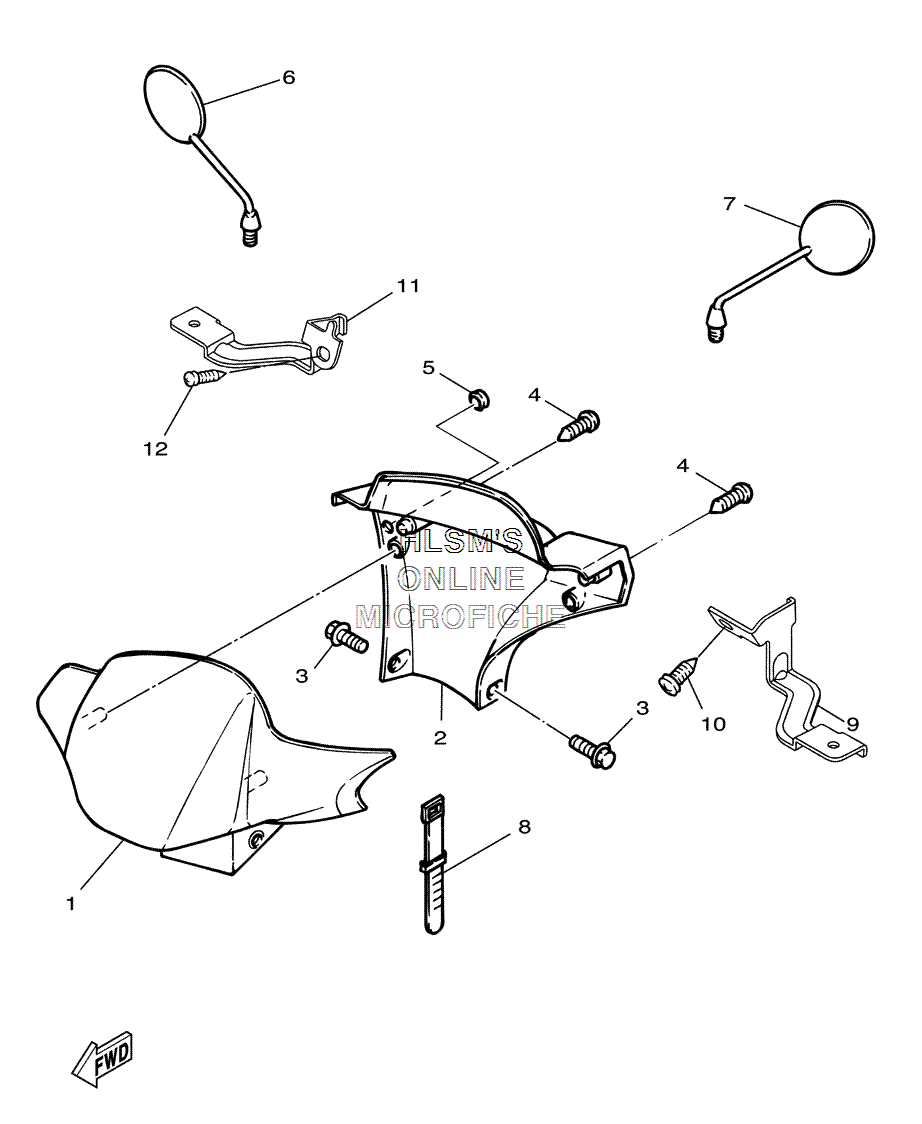

HANDLEBAR - COVER W/ MIRRORS для Yamaha ZUMA - 2004 года выпуска`
-
№АртикулНазвание
-
14VP-F6143-00-P0 COVER, HANDLEBAR UPPER 1 (DPBMC)COVER, HANDLEBAR UPPER 1 (DPBMC)
-
14VP-F6143-00-EY COVER, HANDLEBAR UPPER 1 (HTR)COVER, HANDLEBAR UPPER 1 (HTR)
-
14VP-F6143-00-P7 COVER, HANDLEBAR UPPER 1 (SILVER 3)COVER, HANDLEBAR UPPER 1 (SILVER 3)
-
24VP-F6145-00-00 COVER, HANDLEBAR UPPER 2COVER, HANDLEBAR UPPER 2
-
390159-05831-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
490160-05803-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
53GF-F6199-00-00 PLUG, BLINDPLUG, BLIND
-
64VP-F6290-10-00 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
-
74VP-F6280-10-00 MIRROR ASSY. (LEFT)MIRROR ASSY. (LEFT)
-
890465-13275-00 CLAMPCLAMP
-
95PJ-F612M-00-00 BRACKET 4BRACKET 4
-
1095807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
115PJ-F612N-00-00 BRACKET 5BRACKET 5
-
1295807-06012-00 BOLT, FLANGEBOLT, FLANGE
