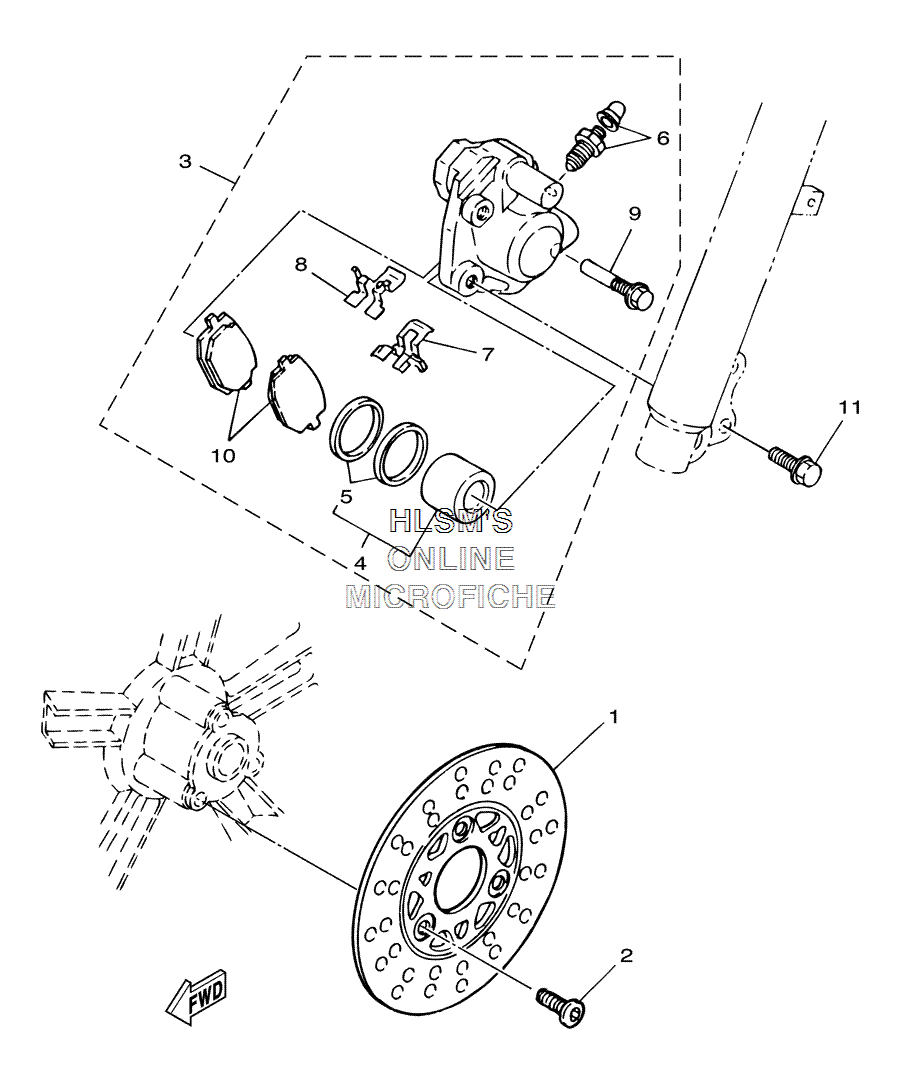

BRAKE - FRONT CALIPER для Yamaha ZUMA - 2004 года выпуска`
-
№АртикулНазвание
-
13UH-F582U-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290149-08814-00 SCREWSCREW
-
33XG-F580T-01-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
43XG-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
53XG-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
63XG-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
73XG-F5919-01-00 ...SUPPORT, PAD...SUPPORT, PAD
-
83XG-F5919-11-00 ...SUPPORT, PAD...SUPPORT, PAD
-
93XG-F5926-01-00 ...BOLT...BOLT
-
103XG-W0045-01-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
1195827-08030-00 BOLT, FLANGEBOLT, FLANGE
