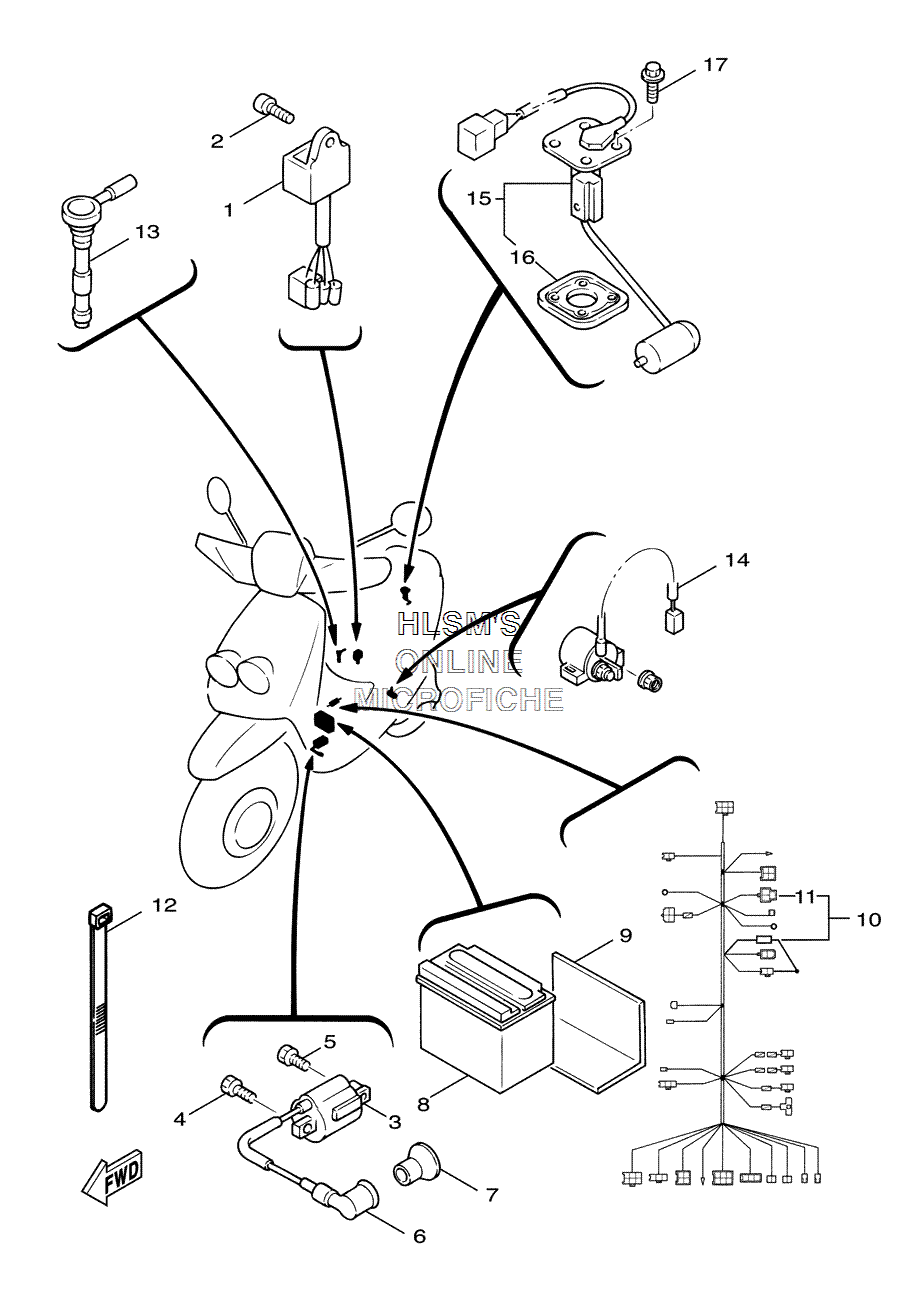

ELECTRICAL 2 для Yamaha ZUMA - 2004 года выпуска`
-
№АртикулНазвание
-
15PJ-H5540-00-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
290159-06056-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
34VP-H2310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
497007-06016-00 BOLTBOLT
-
590153-06839-00 SCREW, HEXAGONSCREW, HEXAGON
-
63GF-H2370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
73GF-H2372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
85PJ-H2100-00-00 BATTERY ASSY.BATTERY ASSY.
-
95DA-H2176-00-00 DAMPERDAMPER
-
105PJ-H2590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
111NT-H2151-00-00 ...FUSE...FUSE
-
1290465-13275-00 CLAMPCLAMP
-
134VP-H5720-00-00 OIL LEVEL GAUGE ASSY.OIL LEVEL GAUGE ASSY.
-
144WX-H1940-00-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
154VP-X8575-00-00 SENDER UNIT ASSY.SENDER UNIT ASSY.
-
1653X-H5753-00-00 ...GASKET, SENDER UNIT...GASKET, SENDER UNIT
