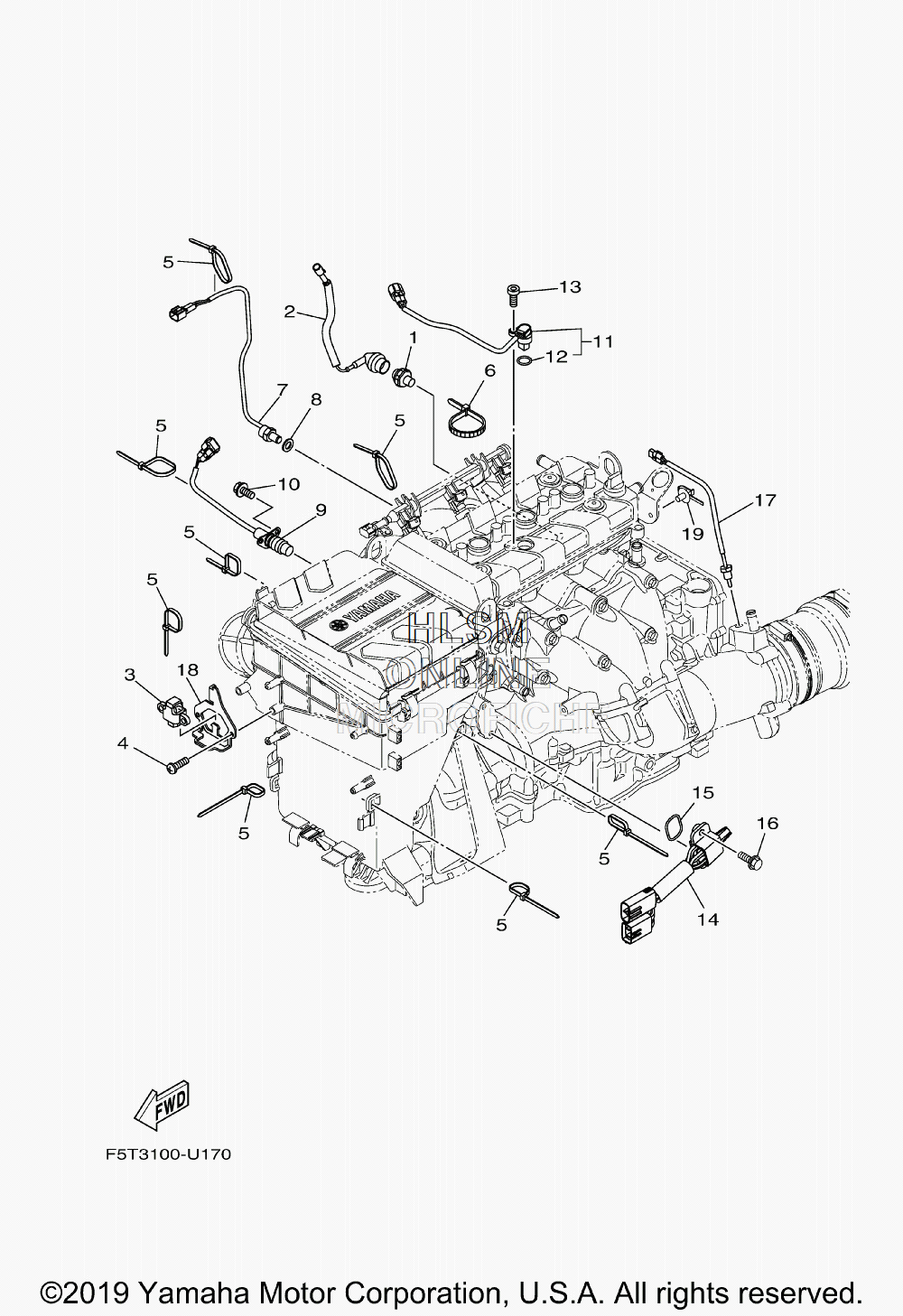

ELECTRICAL 2 для Yamaha VX C - 2019 года выпуска`
-
№АртикулНазвание
-
168V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
260E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
36ET-82576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
497780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
590464-35132-00 CLAMPCLAMP
-
690465-13M39-00 CLAMPCLAMP
-
761A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
892990-10600-00 WASHER, PLATEWASHER, PLATE
-
96CR-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1097595-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
112S3-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
124D9-81168-00-00 ...O-RING...O-RING
-
1391380-06016-00 BOLTBOLT
-
146CS-8273J-10-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
1593210-32172-00 O-RINGO-RING
-
1690119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
176DE-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
186EY-83618-10-00 PLATEPLATE
-
1990464-20005-00 CLAMPCLAMP
