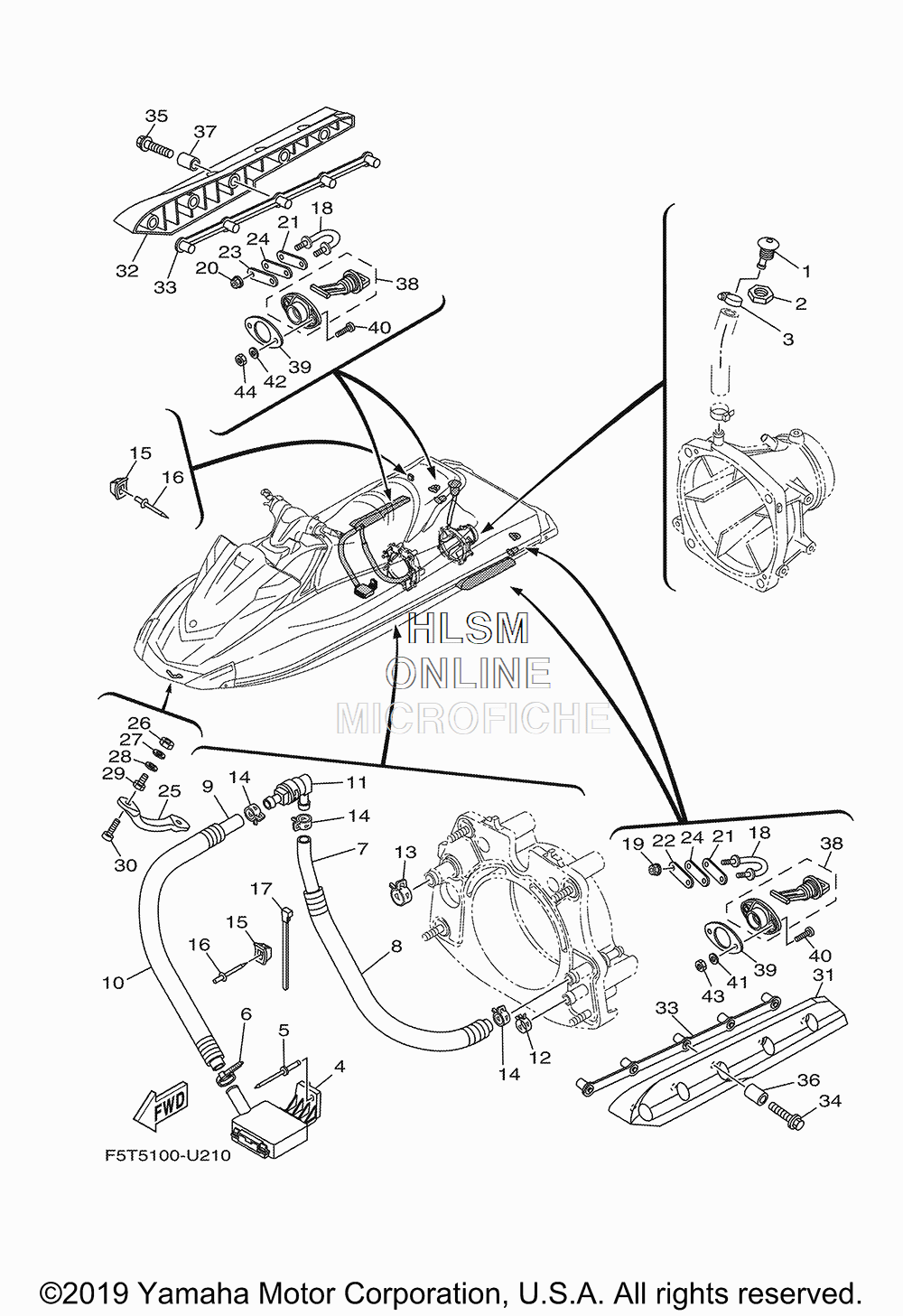

HULL FITTINGS W/ SPONSONS для Yamaha VX C - 2019 года выпуска`
-
№АртикулНазвание
-
1F1W-U269B-00-00 SPOUTSPOUT
-
2EU0-61652-00-00 NUTNUT
-
390601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
4F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
590267-489U8-00 RIVET, BLINDRIVET, BLIND
-
690465-11829-00 CLAMPCLAMP
-
76EY-U771G-00-00 HOSE 2HOSE 2
-
86EY-U773E-00-00 TUBE,2TUBE,2
-
990445-20804-00 HOSE (L860)HOSE (L860)
-
106EX-U773E-00-00 TUBE,2TUBE,2
-
1168N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
1290467-200A3-00 CLIPCLIP
-
1390467-240A3-00 CLIPCLIP
-
1490467-180A5-00 CLIPCLIP
-
15F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1690267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1790464-32801-00 CLAMPCLAMP
-
18F2N-U1628-02-00 STERN EYESTERN EYE
-
199572R-08300-00 NUT, FLANGENUT, FLANGE
-
209572R-08300-00 NUT, FLANGENUT, FLANGE
-
21GP7-U4953-10-00 PLATE APLATE A
-
22GP7-U4953-10-00 PLATE APLATE A
-
23GP7-U4953-10-00 PLATE APLATE A
-
24F1B-U1653-02-00 PACKINGPACKING
-
25F1K-61624-00-00 BOW EYE 1BOW EYE 1
-
2699780-12600-00 NUT.HEX.(COARS)NUT.HEX.(COARS)
-
2792990-12200-00 WASHER, PLAINWASHER, PLAIN
-
28F0X-61637-00-00 WASHERWASHER
-
29F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
3090110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
31F1S-U883N-01-00 STABILIZER LEFT (BLACK)STABILIZER LEFT (BLACK)
-
32F1S-U883P-01-00 STABILIZER RIGHT (BLACK)STABILIZER RIGHT (BLACK)
-
33F1X-U883T-01-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
3490105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
3590105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
36F2N-U8169-00-00 SPACERSPACER
-
37F2N-U8169-00-00 SPACERSPACER
-
38F1S-U2280-02-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
39F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
409788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
419299R-05200-00 WASHERWASHER
-
429299R-05200-00 WASHERWASHER
-
439572R-05300-00 NUT, FLANGENUT, FLANGE
-
449572R-05300-00 NUT, FLANGENUT, FLANGE
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- • HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
