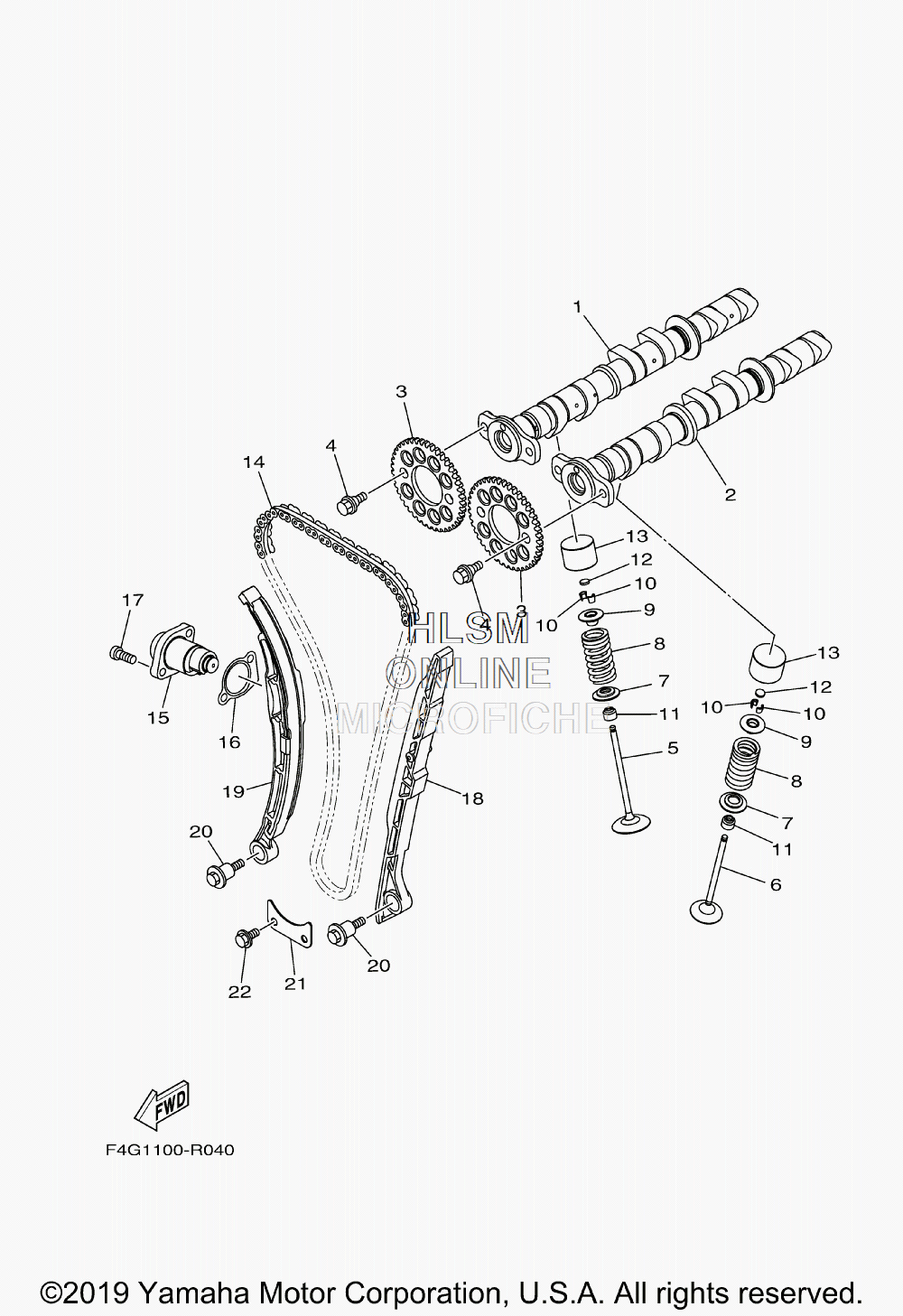

VALVE W/ CAM SHAFTS AND CHAIN для Yamaha VX C - 2019 года выпуска`
-
№АртикулНазвание
-
16EY-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
26EY-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
32HC-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
58GL-12111-10-00 VALVE, INTAKEVALVE, INTAKE
-
68GL-12121-10-00 VALVE, EXHAUSTVALVE, EXHAUST
-
71RC-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
88GL-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
93D7-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
101WG-12118-00-00 LOCK, VALVE SPRING RETAINERLOCK, VALVE SPRING RETAINER
-
112HC-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
121HX-12168-F0-00 PAD, ADJUSTING 2 (1.50) (OPT)PAD, ADJUSTING 2 (1.50) (OPT)
-
121HX-12168-M1-00 PAD, ADJUSTING 2 (1.65) (OPT)PAD, ADJUSTING 2 (1.65) (OPT)
-
121HX-12168-R1-00 PAD, ADJUSTING 2 (1.70) (OPT)PAD, ADJUSTING 2 (1.70) (OPT)
-
121HX-12168-U1-00 PAD, ADJUSTING 2 (1.75) (OPT)PAD, ADJUSTING 2 (1.75) (OPT)
-
121HX-12168-W1-00 PAD, ADJUSTING 2 (1.80) (OPT)PAD, ADJUSTING 2 (1.80) (OPT)
-
121HX-12168-Y1-00 PAD, ADJUSTING 2 (1.85) (OPT)PAD, ADJUSTING 2 (1.85) (OPT)
-
121HX-12169-11-00 PAD, ADJUSTING 2 (1.90) (OPT)PAD, ADJUSTING 2 (1.90) (OPT)
-
121HX-12169-31-00 PAD, ADJUSTING 2 (1.95) (OPT)PAD, ADJUSTING 2 (1.95) (OPT)
-
121HX-12169-50-00 PAD, ADJUSTING 2 (2.00) (OPT)PAD, ADJUSTING 2 (2.00) (OPT)
-
121HX-12169-70-00 PAD, ADJUSTING 2 (2.05) (OPT)PAD, ADJUSTING 2 (2.05) (OPT)
-
121HX-12169-90-00 PAD, ADJUSTING 2 (2.10) (OPT)PAD, ADJUSTING 2 (2.10) (OPT)
-
121HX-12169-E0-00 PAD, ADJUSTING 2 (2.15) (OPT)PAD, ADJUSTING 2 (2.15) (OPT)
-
121HX-12169-G0-00 PAD, ADJUSTING 2 (2.20) (OPT)PAD, ADJUSTING 2 (2.20) (OPT)
-
121HX-12169-J0-00 PAD, ADJUSTING 2 (2.25) (OPT)PAD, ADJUSTING 2 (2.25) (OPT)
-
121HX-12169-L0-00 PAD, ADJUSTING 2 (2.30) (OPT)PAD, ADJUSTING 2 (2.30) (OPT)
-
121HX-12169-N0-00 PAD, ADJUSTING 2 (2.35) (OPT)PAD, ADJUSTING 2 (2.35) (OPT)
-
121HX-12169-T0-00 PAD, ADJUSTING 2 (2.40) (OPT)PAD, ADJUSTING 2 (2.40) (OPT)
-
121HX-12168-H1-00 PAD, ADJUSTING 2 (1.55) (OPT)PAD, ADJUSTING 2 (1.55) (OPT)
-
121HX-12168-K1-00 PAD, ADJUSTING 2 (1.60) (OPT)PAD, ADJUSTING 2 (1.60) (OPT)
-
121HX-12168-00-00 PAD, ADJUSTING 2 (1.20) (OPT)PAD, ADJUSTING 2 (1.20) (OPT)
-
121HX-12168-20-00 PAD, ADJUSTING 2 (1.25) (OPT)PAD, ADJUSTING 2 (1.25) (OPT)
-
121HX-12168-40-00 PAD, ADJUSTING 2 (1.30) (OPT)PAD, ADJUSTING 2 (1.30) (OPT)
-
121HX-12168-60-00 PAD, ADJUSTING 2 (1.35) (OPT)PAD, ADJUSTING 2 (1.35) (OPT)
-
121HX-12168-80-00 PAD, ADJUSTING 2 (1.40) (OPT)PAD, ADJUSTING 2 (1.40) (OPT)
-
121HX-12168-A0-00 PAD, ADJUSTING 2 (1.45) (OPT)PAD, ADJUSTING 2 (1.45) (OPT)
-
136EY-12153-01-00 LIFTER, VALVELIFTER, VALVE
-
1494591-57140-00 CHAIN (98RH2010-140M)CHAIN (98RH2010-140M)
-
158KH-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
162C0-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1790110-06274-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
186EY-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
192HC-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
2090109-06295-00 BOLTBOLT
-
216EY-12279-00-00 PLATEPLATE
-
2295812-06012-00 BOLT, FLANGEBOLT, FLANGE
