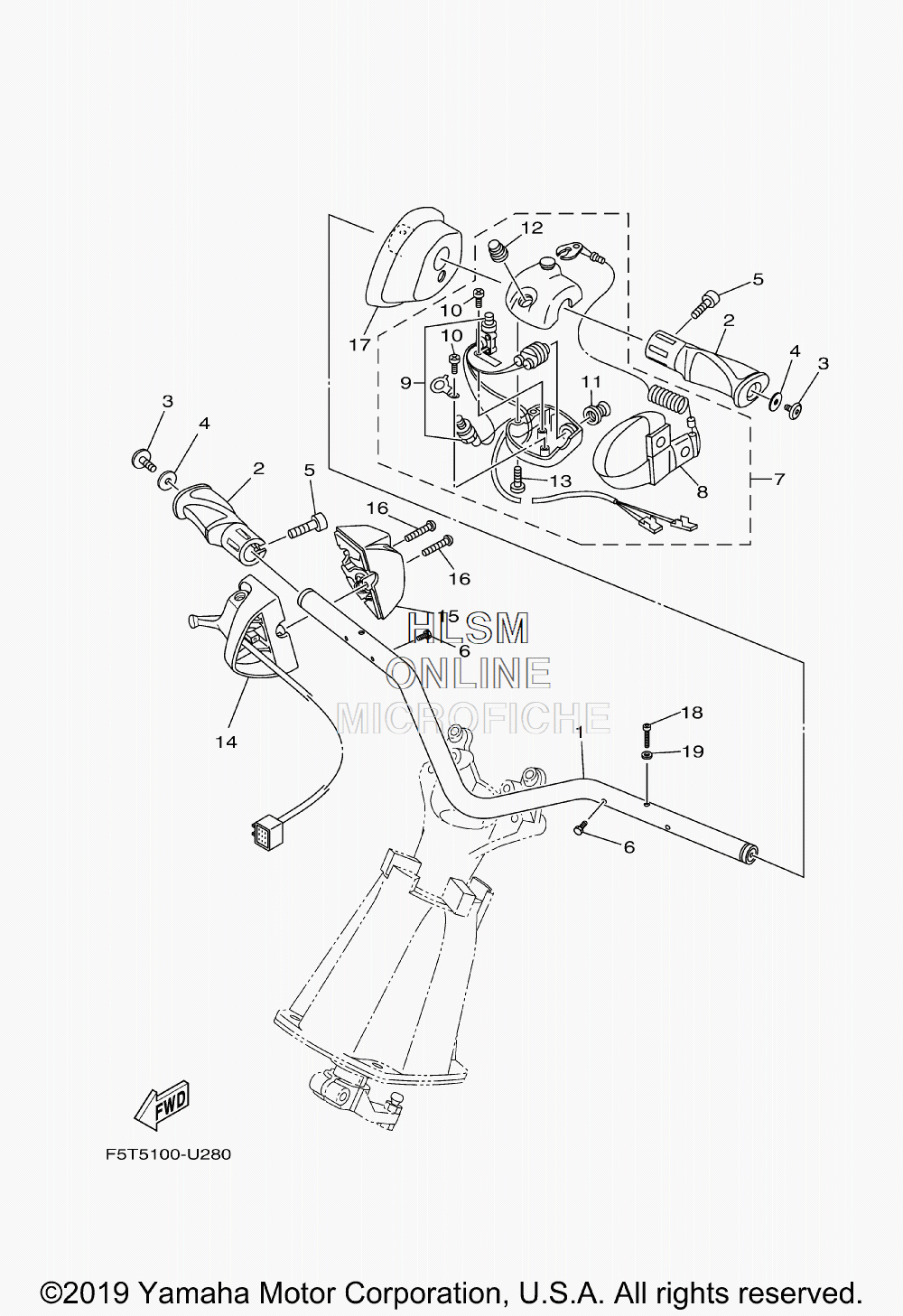

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha VX C - 2019 года выпуска`
-
№АртикулНазвание
-
1F2X-U1552-10-00 HANDLEHANDLE
-
2F2S-U155D-03-00 GRIP, HANDLEGRIP, HANDLE
-
390110-06382-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490201-068G0-00 WASHER, PLATEWASHER, PLATE
-
5F2S-U1516-00-00 BOLTBOLT
-
691380-04030-00 BOLTBOLT
-
7F3Y-68310-00-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
8EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
9FK7-68311-02-00 ...SWITCH SUB ASSY...SWITCH SUB ASSY
-
1097880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
11FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
12FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1397880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
146CS-14305-10-00 THROTTLE LEVER COMPTHROTTLE LEVER COMP
-
156EX-82154-00-00 CASECASE
-
166CS-6725F-00-00 BOLT, THROTTLEBOLT, THROTTLE
-
17F3Y-U143G-00-00 SPACERSPACER
-
1891380-04030-00 BOLTBOLT
-
1990201-04810-00 WASHER, PLATEWASHER, PLATE
