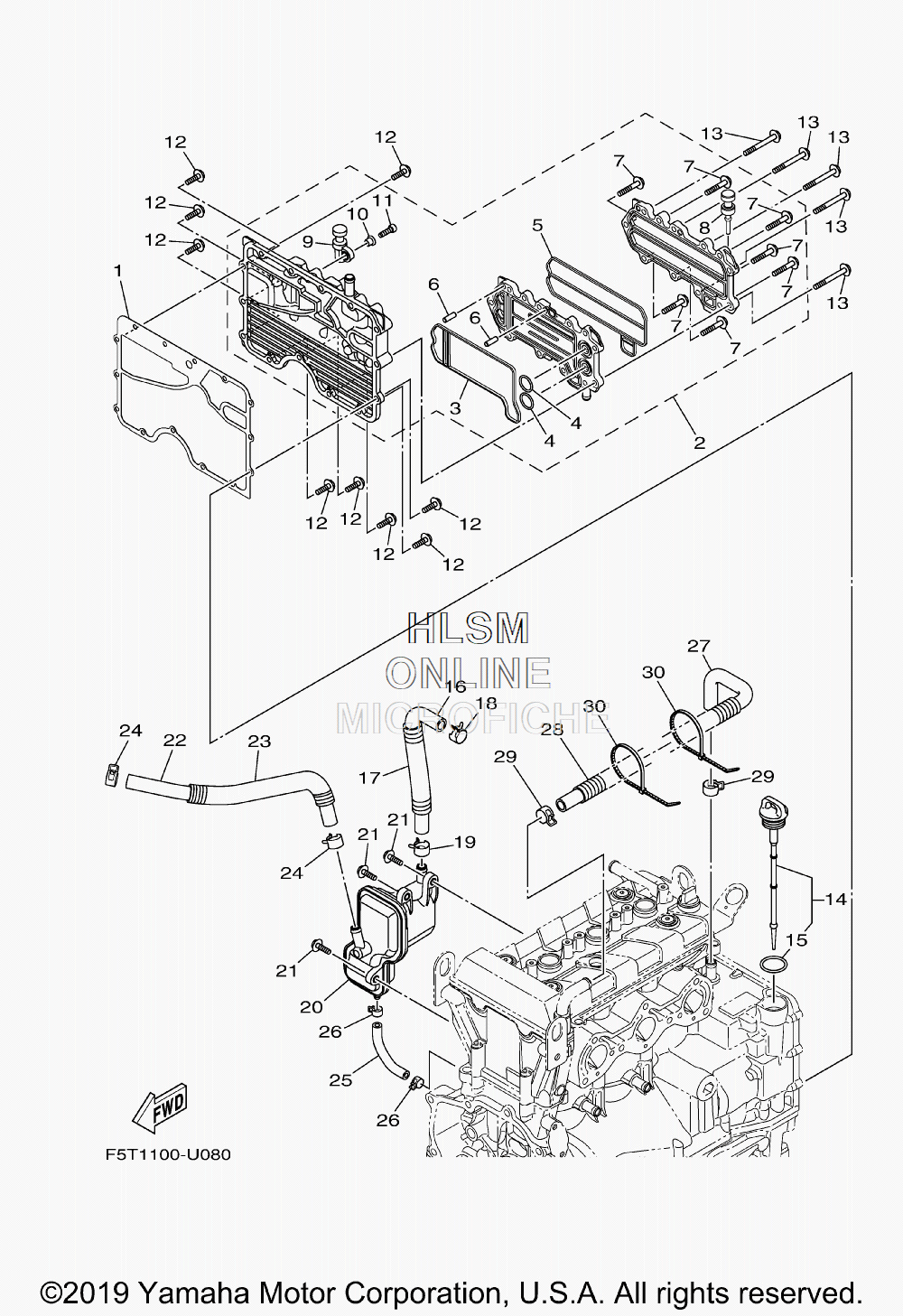

OIL COOLER для Yamaha VX C - 2019 года выпуска`
-
№АртикулНазвание
-
16EY-15453-00-00 GASKETGASKET
-
26EY-13470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
36EY-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
493210-19522-00 ...O-RING...O-RING
-
56EY-13557-00-00 ...GASKET...GASKET
-
693606-19M23-00 ...PIN, DOWEL...PIN, DOWEL
-
795814-06035-00 ...BOLT, FLANGE...BOLT, FLANGE
-
890480-06M46-00 ...GROMMET...GROMMET
-
96S5-81364-10-00 ...GROMMET...GROMMET
-
1090387-06M05-00 ...COLLAR...COLLAR
-
1191380-06020-00 ...BOLT...BOLT
-
1295814-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1395814-06055-00 BOLT, FLANGEBOLT, FLANGE
-
146EY-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1593210-24M79-00 ...O-RING...O-RING
-
166EY-11166-10-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1790447-19004-00 HOSE, WITH SPRING (L130)HOSE, WITH SPRING (L130)
-
1890467-200A3-00 CLIPCLIP
-
1990467-170A4-00 CLIPCLIP
-
206EY-11164-00-00 SEPERATOR, OILSEPERATOR, OIL
-
2190105-06M15-00 BOLT, FLANGEBOLT, FLANGE
-
2290445-18020-00 HOSE (L420)HOSE (L420)
-
2390446-24MF4-00 HOSE (L350)HOSE (L350)
-
2490467-170A4-00 CLIPCLIP
-
256EY-11125-00-00 PIPE, BREATHER 4PIPE, BREATHER 4
-
2690467-110A1-00 CLIPCLIP
-
276EY-11126-10-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
2890447-19014-00 TUBE (L300)TUBE (L300)
-
2990467-170A4-00 CLIPCLIP
-
3090464-35132-00 CLAMPCLAMP
