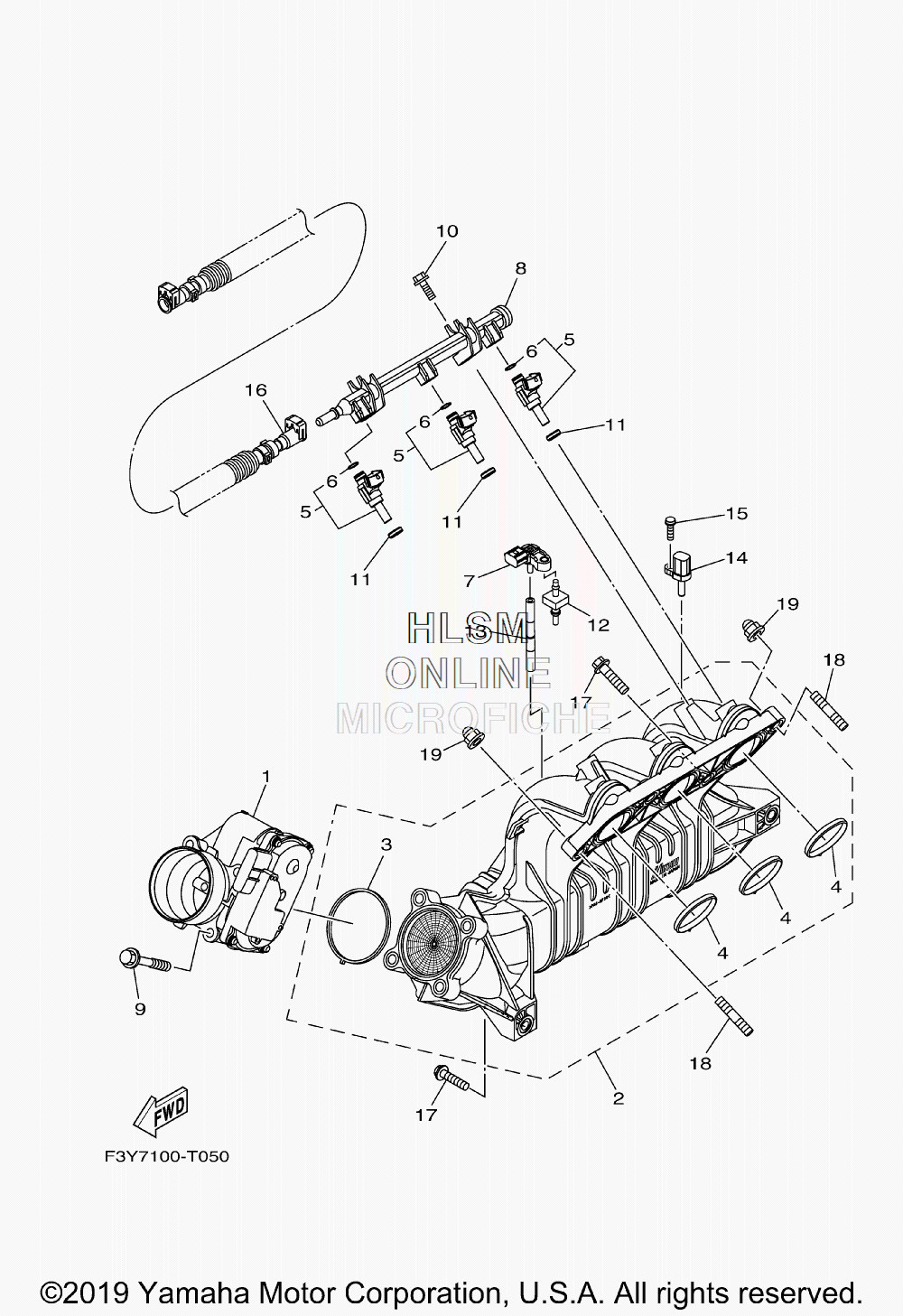

AIR SILENCER W/ INTAKE для Yamaha VX C - 2019 года выпуска`
-
№АртикулНазвание
-
16EY-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
26EY-13641-00-00 MANIFOLD, INTAKE 1MANIFOLD, INTAKE 1
-
36EY-14156-00-00 ...GASKET, INSULATING...GASKET, INSULATING
-
46EY-14126-00-00 ...GASKET...GASKET
-
52HC-13761-00-00 INJECTORINJECTOR
-
668V-1416A-00-00 ...O-RING...O-RING
-
75S7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
86EY-12880-00-00 DELIVERY PIPEDELIVERY PIPE
-
990105-08243-00 BOLT, FLANGEBOLT, FLANGE
-
1095814-06020-00 BOLT, FLANGEBOLT, FLANGE
-
118FP-13556-10-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
126BH-14445-00-00 GROMMETGROMMET
-
136EY-13532-00-00 HOSE, VACUUM SENSING 3HOSE, VACUUM SENSING 3
-
148FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1597702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
166EY-2450B-10-00 FUEL HOSE ASSYFUEL HOSE ASSY
-
1797513-08535-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1895612-08625-00 BOLT, STUDBOLT, STUD
-
1990176-08080-00 NUT, CROWNNUT, CROWN
