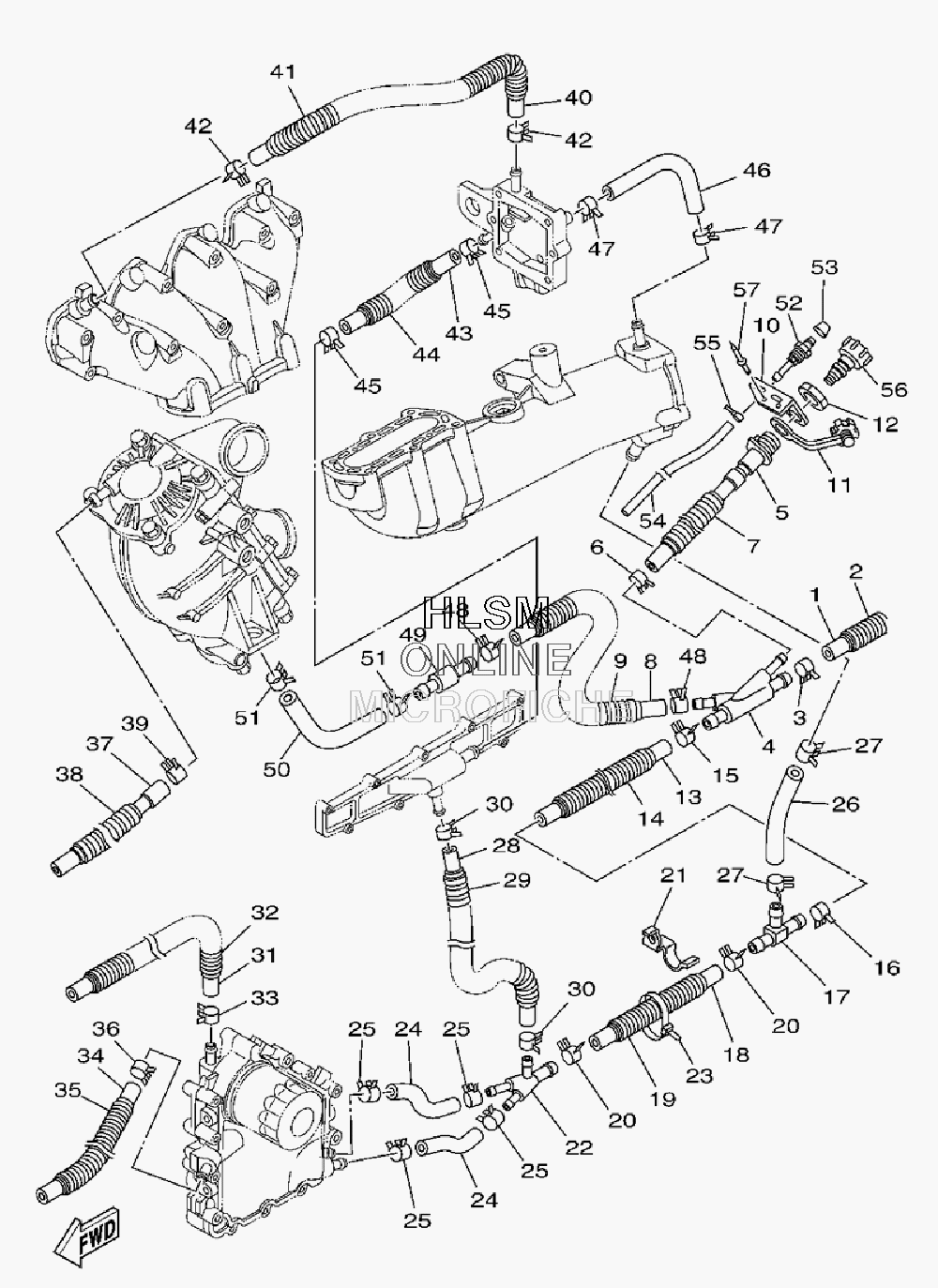

EXHAUST - HOSES для Yamaha FX CRUISER SHO - 2009 года выпуска`
-
№АртикулНазвание
-
190445-21806-00 HOSEHOSE
-
290447-22801-00 TUBETUBE
-
390467-200A0-00 CLIPCLIP
-
46S5-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
563M-12580-00-00 JOINT ASSYJOINT ASSY
-
690467-150A0-00 CLIPCLIP
-
790447-19801-00 TUBETUBE
-
890445-21807-00 HOSEHOSE
-
990447-22802-00 TUBETUBE
-
106S5-12443-00-00 STAYSTAY
-
11682-84385-01-00 CAP,1CAP,1
-
12EU0-61652-00-00 NUTNUT
-
136S5-1243E-00-00 HOSE 2HOSE 2
-
1490447-22011-00 TUBE (L170)TUBE (L170)
-
1590467-200A0-00 CLIPCLIP
-
1690467-200A0-00 CLIPCLIP
-
176S5-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
186S5-1243F-00-00 HOSE, 3HOSE, 3
-
1990447-22013-00 TUBETUBE
-
2090467-200A0-00 CLIPCLIP
-
2190462-10044-00 CLAMPCLAMP
-
226S5-12582-00-00 JOINT, HOSE 2JOINT, HOSE 2
-
2390464-35132-00 CLAMPCLAMP
-
246S5-1244J-00-00 HOSE 6HOSE 6
-
2590467-160A0-00 CLIPCLIP
-
266S5-12589-00-00 HOSE 6HOSE 6
-
2790467-200A0-00 CLIPCLIP
-
286S5-1244H-00-00 HOSE 5HOSE 5
-
2990447-19011-00 TUBETUBE
-
3090467-150A1-00 CLIPCLIP
-
316S5-12588-00-00 HOSE 5HOSE 5
-
3290447-19006-00 HOSE, WITH SPRING (L=630)HOSE, WITH SPRING (L=630)
-
3390467-160A0-00 CLIPCLIP
-
346S5-14987-00-00 HOSEHOSE
-
3590447-19006-00 HOSE, WITH SPRING (L=630)HOSE, WITH SPRING (L=630)
-
3690467-160A0-00 CLIPCLIP
-
376S5-12552-00-00 HOSE 8HOSE 8
-
3890446-24M89-00 HOSE (L420)HOSE (L420)
-
3990467-170A0-00 CLIPCLIP
-
406S5-12577-00-00 HOSE 2HOSE 2
-
4190446-27M55-00 TUBE (L400)TUBE (L400)
-
4290467-160A0-00 CLIPCLIP
-
436S5-12579-00-00 HOSE 4HOSE 4
-
4490447-19011-00 TUBETUBE
-
4590467-160A0-00 CLIPCLIP
-
466S5-1244G-00-00 HOSE, 4HOSE, 4
-
4790467-160A0-00 CLIPCLIP
-
4890467-200A0-00 CLIPCLIP
-
496S5-12594-00-00 JOINT, HOSE 4JOINT, HOSE 4
-
506S5-12576-00-00 HOSE 1HOSE 1
-
5190467-200A0-00 CLIPCLIP
-
5261L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
53663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
5490445-09M21-00 HOSE (L445)HOSE (L445)
-
5590465-11829-00 CLAMPCLAMP
-
5667X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
5790267-489U1-00 RIVET, BLINDRIVET, BLIND
