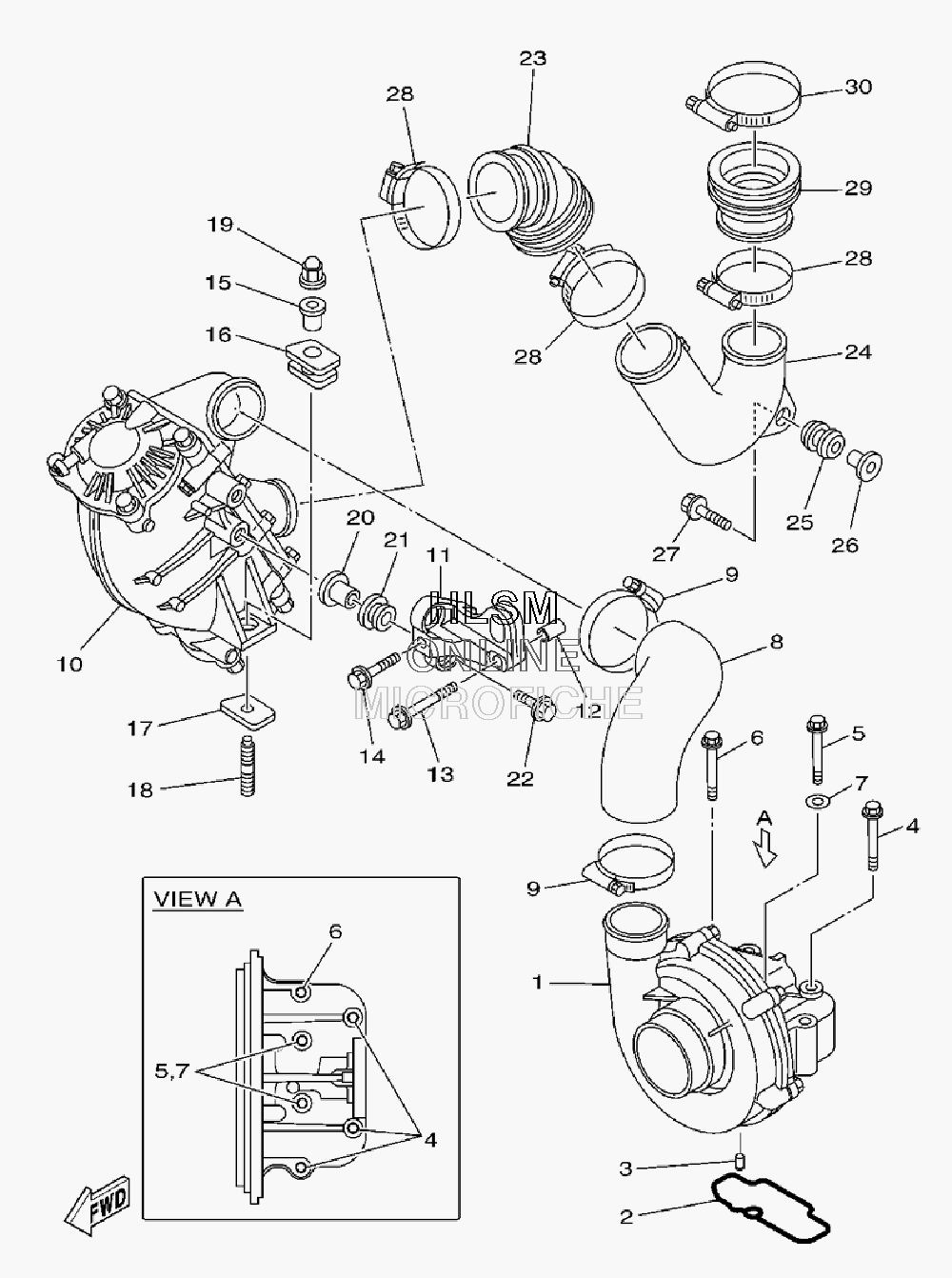

SUPER CHARGER ASSY для Yamaha FX CRUISER SHO - 2009 года выпуска`
-
№АртикулНазвание
-
16S5-141A0-00-00 SUPER CHARGER ASSYSUPER CHARGER ASSY
-
26S5-1416A-00-00 O-RINGO-RING
-
393604-10M03-00 PIN, DOWELPIN, DOWEL
-
495814-08065-00 BOLT, FLANGEBOLT, FLANGE
-
595814-06065-00 BOLT, FLANGEBOLT, FLANGE
-
690105-08188-00 BOLT, FLANGEBOLT, FLANGE
-
790201-06028-00 WASHER, PLATEWASHER, PLATE
-
86S5-14349-00-00 PIPEPIPE
-
990450-75003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
106S5-13670-00-00 AIR COORER ASSY.AIR COORER ASSY.
-
116S5-13691-00-94 BRACKET, AIR COOLERBRACKET, AIR COOLER
-
1299590-14016-00 PIN, DOWELPIN, DOWEL
-
1390119-10047-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490119-10046-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
156S5-14495-00-00 COLLARCOLLAR
-
166S5-14435-00-00 GROMMETGROMMET
-
176S5-14243-00-00 PLATEPLATE
-
1890116-10044-00 BOLT, STUDBOLT, STUD
-
1990176-10001-00 NUT, CROWNNUT, CROWN
-
2090387-11002-00 COLLARCOLLAR
-
2190480-21M63-00 GROMMETGROMMET
-
2290119-10011-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
236S5-14148-00-00 PIPEPIPE
-
246S5-13651-00-00 PIPE, BOOSTPIPE, BOOST
-
2590480-22M15-00 GROMMETGROMMET
-
266D3-14495-00-00 COLLARCOLLAR
-
2790119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2890450-70005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
296S5-13652-00-00 PIPE, INTAKEPIPE, INTAKE
-
3090450-70M13-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
