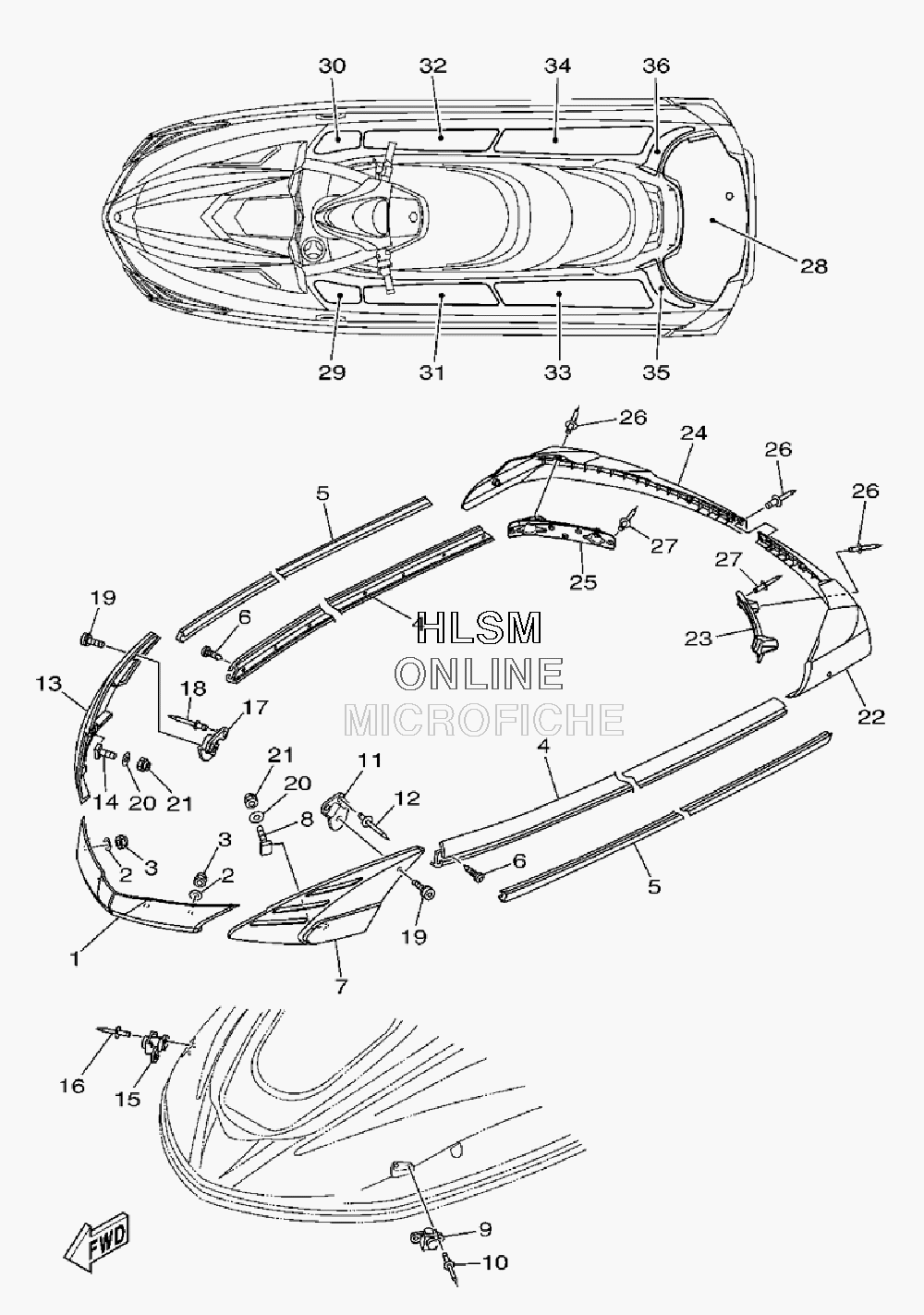

BUMBER W/ GUNWALE MAT для Yamaha FX CRUISER SHO - 2009 года выпуска`
-
№АртикулНазвание
-
1F1W-U2501-11-00 BOW GUNWALE COMP. FOR REDBOW GUNWALE COMP. FOR RED
-
1F1W-U2501-01-00 BOW GUNWALE COMP. FOR GRAYBOW GUNWALE COMP. FOR GRAY
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, NYLONNUT, NYLON
-
4F1B-U2512-00-00 GUNWALE, SIDE (SILVER FOR RED)GUNWALE, SIDE (SILVER FOR RED)
-
4F1B-U2512-20-00 GUNWALE, SIDE FOR GRAYGUNWALE, SIDE FOR GRAY
-
5F1B-U2519-10-00 INNER, GUNWALE (YAMAHA BLACK)INNER, GUNWALE (YAMAHA BLACK)
-
690169-059U1-00 SCREW, TAPPINGSCREW, TAPPING
-
7F1W-U252E-01-00 JOINT, GUNWALE LEFT HAND FOR GRAYJOINT, GUNWALE LEFT HAND FOR GRAY
-
7F1W-U252E-10-00 JOINT, GUNWALE LEFT HAND FOR REDJOINT, GUNWALE LEFT HAND FOR RED
-
8F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
9F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
11F1W-U4949-00-00 BRACKETBRACKET
-
1290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
13F1W-U252F-01-00 JOINT, GUNWALE RIGHT HAND FOR GRAYJOINT, GUNWALE RIGHT HAND FOR GRAY
-
13F1W-U252F-10-00 JOINT, GUNWALE RIGHT HAND FOR REDJOINT, GUNWALE RIGHT HAND FOR RED
-
14F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
15F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1690267-489U6-00 RIVET, BLINDRIVET, BLIND
-
17F1W-U4949-00-00 BRACKETBRACKET
-
1890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1990111-06114-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
209299R-06200-00 WASHERWASHER
-
219572R-06300-00 NUT, NYLONNUT, NYLON
-
22F1W-U251D-01-00 GUNWALE, STERN 1 FOR GRAYGUNWALE, STERN 1 FOR GRAY
-
22F1W-U251D-10-00 GUNWALE, STERN 1 FOR REDGUNWALE, STERN 1 FOR RED
-
23F1W-U251L-01-00 BRACKET, GUNWALE 1BRACKET, GUNWALE 1
-
24F1W-U251E-01-00 GUNWALE, STERN 2 FOR GRAYGUNWALE, STERN 2 FOR GRAY
-
24F1W-U251E-10-00 GUNWALE, STERN 2 FOR REDGUNWALE, STERN 2 FOR RED
-
25F1W-U251M-01-00 BRACKET, GUNWALE 2BRACKET, GUNWALE 2
-
2690267-48825-00 RIVET, BLINDRIVET, BLIND
-
2790267-489U8-00 RIVET, BLINDRIVET, BLIND
-
28F1W-U3581-10-00 MAT, UPPER FOR GRAYMAT, UPPER FOR GRAY
-
28F1W-U3581-00-00 MAT, UPPER FOR REDMAT, UPPER FOR RED
-
29F1W-U351H-10-00 MAT, STEP 1 FOR GRAYMAT, STEP 1 FOR GRAY
-
29F1W-U351H-00-00 MAT, STEP 1 FOR REDMAT, STEP 1 FOR RED
-
30F1W-U351J-10-00 MAT, STEP 2 FOR GRAYMAT, STEP 2 FOR GRAY
-
30F1W-U351J-00-00 MAT, STEP 2 FOR REDMAT, STEP 2 FOR RED
-
31F1W-U351K-10-00 MAT, STEP 3 FOR GRAYMAT, STEP 3 FOR GRAY
-
31F1W-U351K-00-00 MAT, STEP 3 FOR REDMAT, STEP 3 FOR RED
-
32F1W-U351M-10-00 MAT, STEP 4 FOR GRAYMAT, STEP 4 FOR GRAY
-
32F1W-U351M-00-00 MAT, STEP 4 FOR REDMAT, STEP 4 FOR RED
-
33F1W-U351N-10-00 MAT, STEP 5 FOR GRAYMAT, STEP 5 FOR GRAY
-
33F1W-U351N-00-00 MAT, STEP 5 FOR REDMAT, STEP 5 FOR RED
-
34F1W-U351P-10-00 MAT, STEP 6 FOR GRAYMAT, STEP 6 FOR GRAY
-
34F1W-U351P-00-00 MAT, STEP 6 FOR REDMAT, STEP 6 FOR RED
-
35F1W-U351R-10-00 MAT, STEP 7 FOR GRAYMAT, STEP 7 FOR GRAY
-
35F1W-U351R-00-00 MAT, STEP 7 FOR REDMAT, STEP 7 FOR RED
-
36F1W-U351S-10-00 MAT, STEP 8 FOR GRAYMAT, STEP 8 FOR GRAY
-
36F1W-U351S-00-00 MAT, STEP 8 FOR REDMAT, STEP 8 FOR RED
