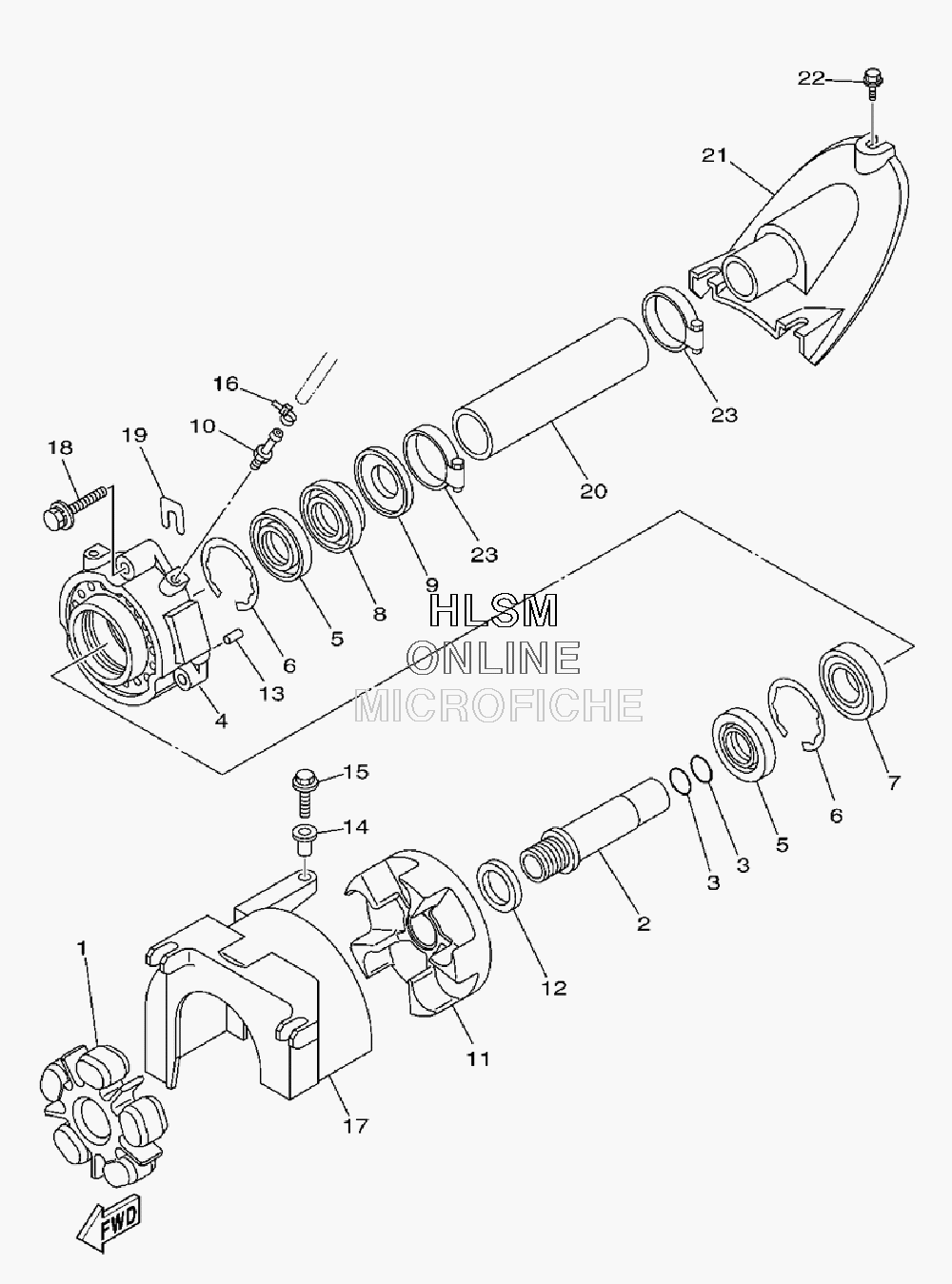

PROPULSION SYSTEM - INTERNAL для Yamaha FX CRUISER SHO - 2009 года выпуска
‹-+›
-
№АртикулНазвание
-
16S5-4581J-01-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
26S5-51323-00-00 SHAFT, COUPLERSHAFT, COUPLER
-
393210-22MF1-00 O-RINGO-RING
-
46S5-45332-00-94 HOUSING, BEARINGHOUSING, BEARING
-
593102-29008-00 OIL SEALOIL SEAL
-
693450-66156-00 CIRCLIPCIRCLIP
-
793306-20655-00 BEARINGBEARING
-
893102-29004-00 OIL SEALOIL SEAL
-
96S5-45613-10-00 WASHER, THRUSTWASHER, THRUST
-
1061L-45378-00-00 NIPPLE, HOSENIPPLE, HOSE
-
116S5-45593-00-94 FLANGE, COUPLING 1FLANGE, COUPLING 1
-
126S5-12289-00-00 WASHERWASHER
-
1393606-12019-00 PIN, DOWELPIN, DOWEL
-
1490387-06M60-00 COLLARCOLLAR
-
1590119-069UD-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690465-11829-00 CLAMPCLAMP
-
176S5-R1381-00-00 COVERCOVER
-
1890119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
19GD0-U7249-00-05 SHIM (T=0.5)SHIM (T=0.5)
-
20F1W-U883B-01-00 PIPE, 1PIPE, 1
-
21F1W-U883E-00-00 JOINT, PIPEJOINT, PIPE
-
2290149-069UA-00 SCREWSCREW
-
2390601-152U3-00 BAND, HOSE 52BAND, HOSE 52
