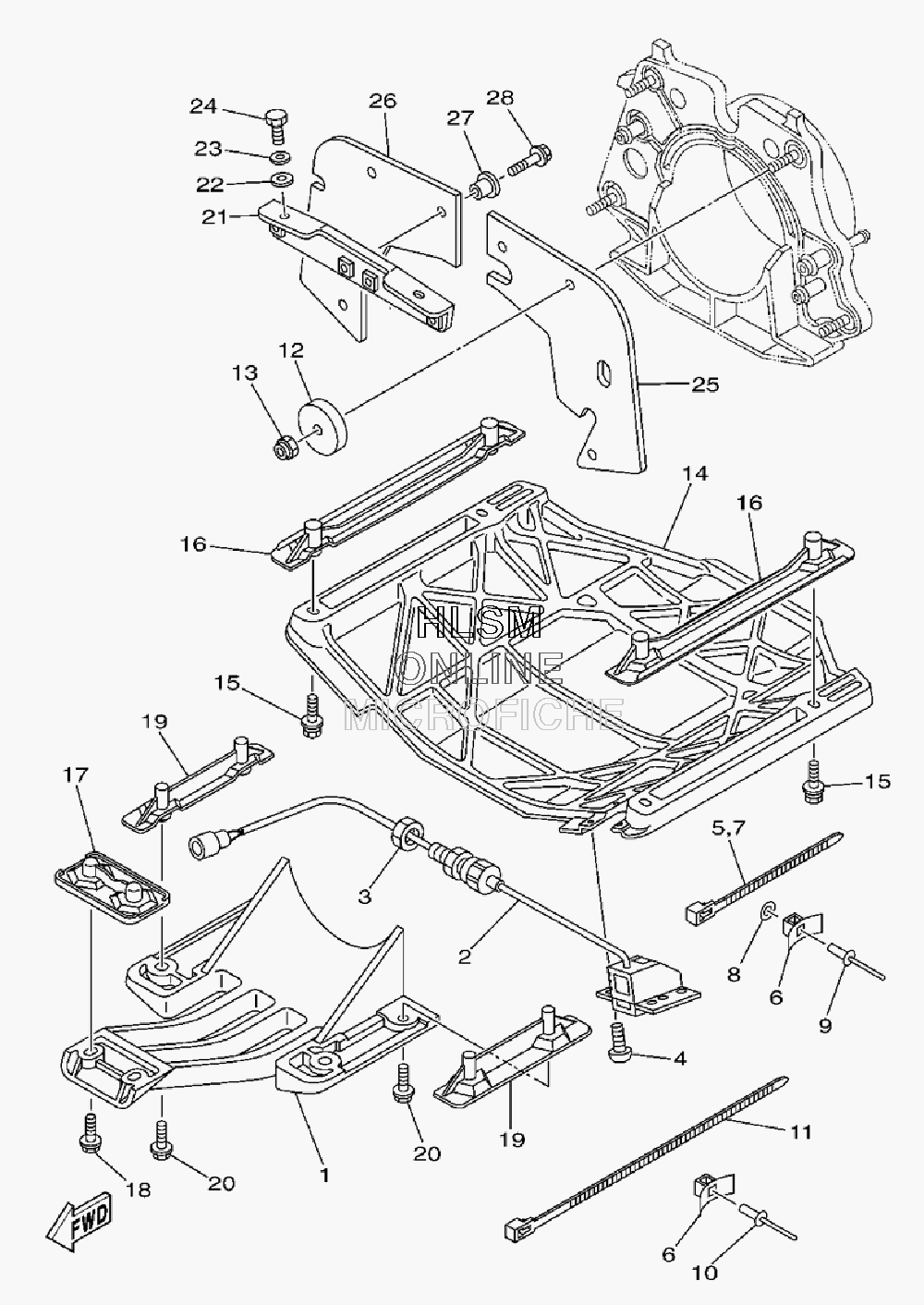

INTAKE AND RIDE PLATE ASSY для Yamaha FX CRUISER SHO - 2009 года выпуска`
-
№АртикулНазвание
-
16S5-R1333-01-00 SCREEN, INTAKESCREEN, INTAKE
-
2F1X-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
3EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
490150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
590464-32801-00 CLAMPCLAMP
-
690600-91736-00 CLAMP COMP.CLAMP COMP.
-
790464-32801-00 CLAMPCLAMP
-
89299R-05200-00 WASHERWASHER
-
990267-48802-00 RIVET, BLINDRIVET, BLIND
-
1090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1190464-99801-00 CLAMPCLAMP
-
12F1S-U725E-00-00 WASHERWASHER
-
139572R-10300-00 NUT, FLANGENUT, FLANGE
-
14F1W-6273B-02-00 PLATE 2PLATE 2
-
1590119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
16F1B-U8572-00-00 BRACKET 2BRACKET 2
-
17F1K-U8577-00-00 BRACKET, 3BRACKET, 3
-
1890119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
19F1G-U8571-00-00 BRACKET 1BRACKET 1
-
2090119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
21F1B-67557-00-00 BRACKETBRACKET
-
2290430-12002-00 GASKETGASKET
-
2392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
2490109-08041-00 BOLTBOLT
-
25F1X-U757E-00-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
26F1X-U757F-00-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
2790387-06080-00 COLLARCOLLAR
-
2890119-06827-00 BOLT, WITH WASHERBOLT, WITH WASHER
