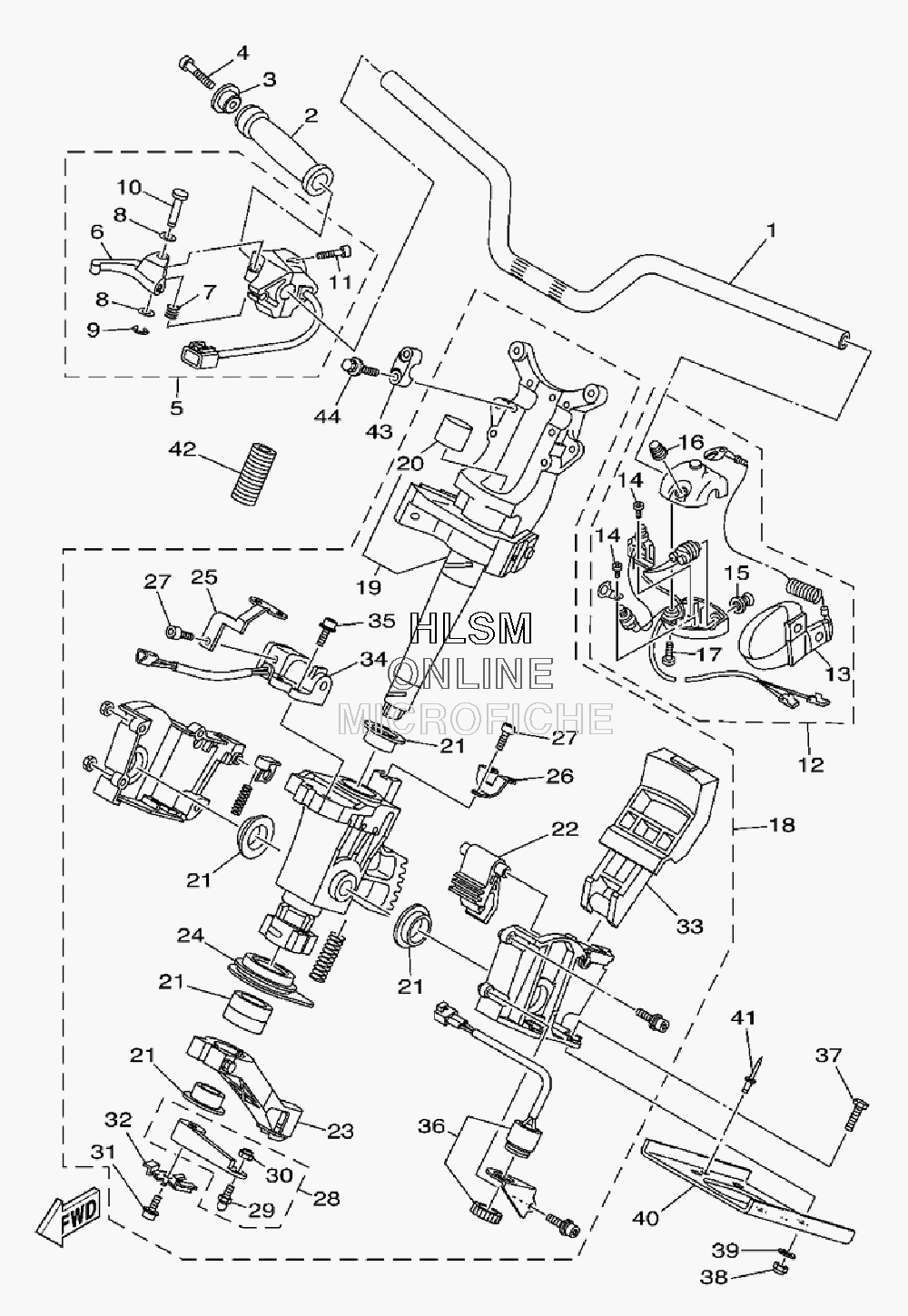

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha FX CRUISER SHO - 2009 года выпуска`
-
№АртикулНазвание
-
1F1S-61552-00-00 HANDLEHANDLE
-
2GP7-U155D-01-00 GRIP, HANDLEGRIP, HANDLE
-
3F1S-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F1W-67250-01-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-02-00 LEVER, THROTTLELEVER, THROTTLE
-
7EW2-67256-00-00 SPRINGSPRING
-
8EW2-67258-01-00 WASHERWASHER
-
9EW2-67259-01-00 E-RINGE-RING
-
10F0D-67257-00-00 SHAFTSHAFT
-
11F1X-6725F-01-00 BOLT, THROTTLEBOLT, THROTTLE
-
12F1S-68310-01-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 LANYARD, STOP SWITCHLANYARD, STOP SWITCH
-
1497880-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
15FK7-68312-02-00 STOP BUTTON COMPSTOP BUTTON COMP
-
16FK7-68313-02-00 START BUTTON COMP.START BUTTON COMP.
-
1797880-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
18F1W-61400-10-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
19F1W-67410-10-00 SHAFT ASSYSHAFT ASSY
-
20F1W-61435-00-00 SEAL, PIPE 30SEAL, PIPE 30
-
21F1W-6773D-00-00 TUBE AND BUSHING SETTUBE AND BUSHING SET
-
22F1S-61782-00-00 LOCK 1LOCK 1
-
23F1S-6146A-00-00 CABLE STOPPER ASSY.CABLE STOPPER ASSY.
-
24F1S-6143C-00-00 SEAL, RUBBERSEAL, RUBBER
-
25F1W-65938-00-00 STAY 1STAY 1
-
26F1S-65939-00-00 STAY 2STAY 2
-
27F1B-613C1-00-00 SCREW, OVAL HEADSCREW, OVAL HEAD
-
28F1S-6153R-01-00 ARM ASSY.ARM ASSY.
-
29EU0-61461-02-00 STUD, JOINT BALLSTUD, JOINT BALL
-
3095720-06300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
31F1W-61355-00-00 BOLTBOLT
-
32F1W-6142B-00-00 PLATE, RETAININGPLATE, RETAINING
-
33F1W-6151M-00-00 LEVER ASSYLEVER ASSY
-
34F1W-68303-00-00 SENSOR ASSYSENSOR ASSY
-
35F1S-61355-00-00 BOLTBOLT
-
36F1S-68341-00-00 BUZZERBUZZER
-
3797080-08035-00 BOLTBOLT
-
389572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
39F1W-U725E-00-00 WASHERWASHER
-
40F1X-U1554-00-00 PLATE, RETAININGPLATE, RETAINING
-
4190267-489U6-00 RIVET, BLINDRIVET, BLIND
-
4290447-22803-00 TUBETUBE
-
43EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4490119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
