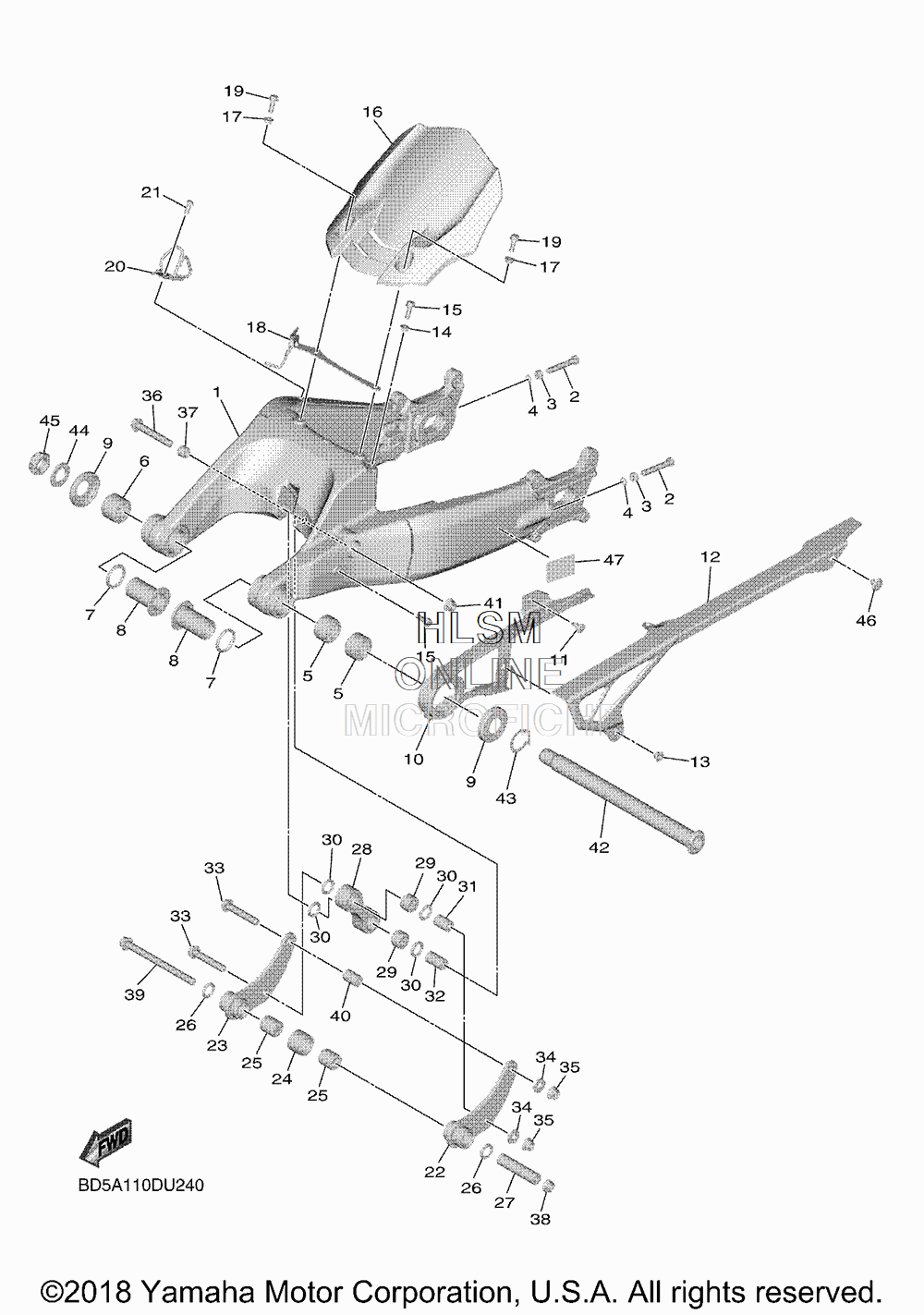

SUSPENSION - REAR ARM для Yamaha NIKIN - 2019 года выпуска`
-
№АртикулНазвание
-
1BD5-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
290101-08013-00 BOLTBOLT
-
395302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
490201-08052-00 WASHER, PLATEWASHER, PLATE
-
593317-330A1-00 BEARINGBEARING
-
693317-330A0-00 BEARINGBEARING
-
793106-30002-00 OIL SEALOIL SEAL
-
890387-25039-00 COLLARCOLLAR
-
92C0-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
10BD5-22151-00-00 SEAL, GUARDSEAL, GUARD
-
1190269-07007-00 RIVETRIVET
-
12BD5-22311-00-00 CASE, CHAINCASE, CHAIN
-
1390387-062X0-00 COLLARCOLLAR
-
1490560-06244-00 SPACERSPACER
-
1595817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
16B67-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
1790560-06244-00 SPACERSPACER
-
18BD5-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
1995817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
20BD5-27267-00-00 GUIDE, WIREGUIDE, WIRE
-
2192017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
22BD5-2217A-00-00 ARM, RELAYARM, RELAY
-
23BD5-2217E-00-00 ARM, RELAY 2ARM, RELAY 2
-
2490445-32002-00 HOSEHOSE
-
2593315-31750-00 BEARINGBEARING
-
2693109-17071-00 OIL SEALOIL SEAL
-
273GB-23448-00-00 SPACERSPACER
-
28BD5-2217M-00-00 ARM 1ARM 1
-
2993315-31758-00 BEARINGBEARING
-
3093109-17071-00 OIL SEALOIL SEAL
-
3190387-1012A-00 COLLARCOLLAR
-
3290387-102R4-00 COLLARCOLLAR
-
3390105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
3490201-10036-00 WASHER, PLATEWASHER, PLATE
-
3595602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
3690105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3790387-1013U-00 COLLARCOLLAR
-
3895602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
3990105-10219-00 BOLT, FLANGEBOLT, FLANGE
-
4090387-1012A-00 COLLARCOLLAR
-
4195602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
42BD5-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
43BD5-22159-00-00 WASHER, SPRING LOWERWASHER, SPRING LOWER
-
4490201-22014-00 WASHER, PLATEWASHER, PLATE
-
4590185-22009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4690269-07076-00 RIVETRIVET
-
47BD5-21668-10-00 LABEL, TIRELABEL, TIRE
