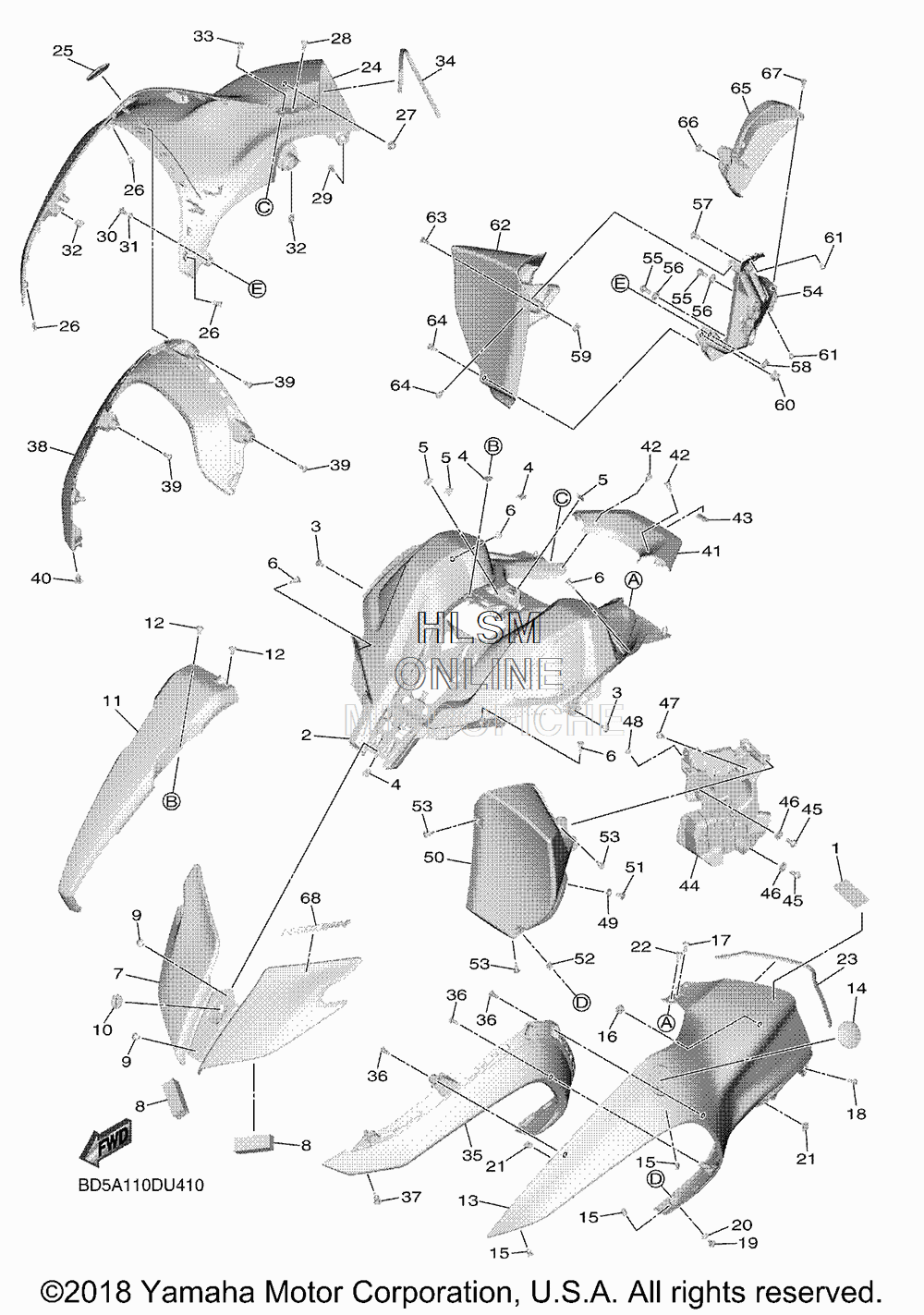

COWLING 2 для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
129P-2816R-00-00 LABEL, WARNING GENERAL INFO.LABEL, WARNING GENERAL INFO.
-
2BD5-23121-00-00 COVER, UPPER 1COVER, UPPER 1
-
390111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
490183-05076-00 NUT, SPRINGNUT, SPRING
-
590183-05042-00 NUT, SPRINGNUT, SPRING
-
690269-06008-00 RIVETRIVET
-
7BD5-2838D-00-P0 COVER, HEADLIGHT 1 (DNMG - DARK GRAY)COVER, HEADLIGHT 1 (DNMG - DARK GRAY)
-
813S-12678-00-00 DAMPER, AIR SHROUD 5DAMPER, AIR SHROUD 5
-
990111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090480-01559-00 GROMMETGROMMET
-
11BD5-23391-00-00 PANEL, FRONTPANEL, FRONT
-
1290111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
13BD5-2842M-00-P0 COVER 1 (DNMG - DARK GRAY)COVER 1 (DNMG - DARK GRAY)
-
141RC-2413B-01-00 EMBLEMEMBLEM
-
1590464-04005-00 CLAMPCLAMP
-
1690269-09006-00 RIVETRIVET
-
1790111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1890105-05002-00 BOLT, FLANGEBOLT, FLANGE
-
1990111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2090202-05180-00 WASHER, PLATEWASHER, PLATE
-
2190183-05076-00 NUT, SPRINGNUT, SPRING
-
2290269-06008-00 RIVETRIVET
-
232C0-2174X-00-00 DAMPERDAMPER
-
24BD5-2842N-00-P0 COVER 2 (DNMG - DARK GRAY)COVER 2 (DNMG - DARK GRAY)
-
251RC-2413B-01-00 EMBLEMEMBLEM
-
2690464-04005-00 CLAMPCLAMP
-
2790269-09006-00 RIVETRIVET
-
2890111-05034-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2990105-05002-00 BOLT, FLANGEBOLT, FLANGE
-
3090111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190202-05180-00 WASHER, PLATEWASHER, PLATE
-
3290183-05076-00 NUT, SPRINGNUT, SPRING
-
3390269-06008-00 RIVETRIVET
-
342C0-2174X-00-00 DAMPERDAMPER
-
35BD5-28345-00-00 MOLE 1MOLE 1
-
3697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3790269-07007-00 RIVETRIVET
-
38BD5-28346-00-00 MOLE 2MOLE 2
-
3997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
4090269-07007-00 RIVETRIVET
-
41BD5-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
4290269-06008-00 RIVETRIVET
-
435LP-82176-00-00 DAMPERDAMPER
-
44BD5-2836H-00-00 BRACKET 5BRACKET 5
-
4590111-06059-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4690387-06170-00 COLLARCOLLAR
-
4790269-06008-00 RIVETRIVET
-
4890338-06018-00 PLUGPLUG
-
4990183-05076-00 NUT, SPRINGNUT, SPRING
-
50BD5-21248-01-00 BOXBOX
-
5190111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5290183-05076-00 NUT, SPRINGNUT, SPRING
-
5390269-06008-00 RIVETRIVET
-
54BD5-2836J-00-00 BRACKET 6BRACKET 6
-
5590111-06059-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5690387-06170-00 COLLARCOLLAR
-
5790269-06081-00 RIVETRIVET
-
5890183-05076-00 NUT, SPRINGNUT, SPRING
-
5990183-05042-00 NUT, SPRINGNUT, SPRING
-
6090183-061A1-00 NUT, SPRINGNUT, SPRING
-
6190338-06018-00 PLUGPLUG
-
62BD5-21258-00-00 BOXBOX
-
6390167-05080-00 SCREW, TAPPINGSCREW, TAPPING
-
6490269-06008-00 RIVETRIVET
-
65BD5-2135F-00-00 COVERCOVER
-
6690387-06009-00 COLLARCOLLAR
-
6790269-06008-00 RIVETRIVET
-
68BD5-2839B-00-00 EMBLEM 3DEMBLEM 3D
