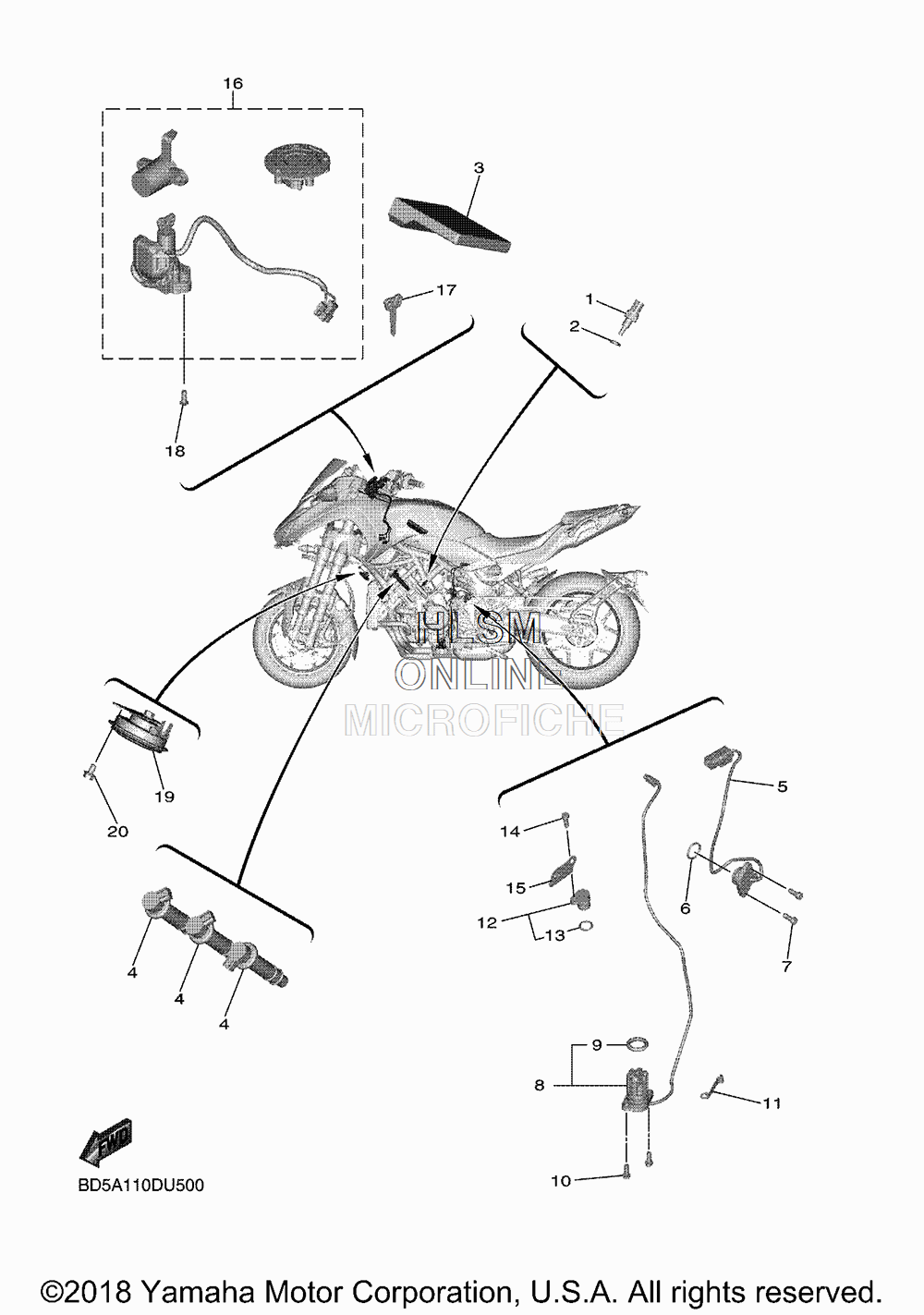

ELECTRICAL 2 для Yamaha NIKIN - 2019 года выпуска`
-
№АртикулНазвание
-
190430-10004-00 GASKETGASKET
-
24P9-83591-00-00 THERMO UNITTHERMO UNIT
-
3BD5-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
439P-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
5BD5-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
693210-21001-00 O-RINGO-RING
-
790110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
85S7-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
95VY-8A8E0-00-00 ...O-RING...O-RING
-
1095022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1190465-08053-00 CLAMPCLAMP
-
123P6-15399-00-00 PLUG, BLINDPLUG, BLIND
-
1393210-15566-00 ...O-RING...O-RING
-
1490110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
15BD5-15113-00-00 PLATEPLATE
-
16BD5-Y825C-01-00 MAIN SWITCH SETMAIN SWITCH SET
-
174BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
1890109-08195-00 BOLTBOLT
-
19BD5-83371-00-00 HORNHORN
-
2095807-06010-00 BOLT, FLANGEBOLT, FLANGE
