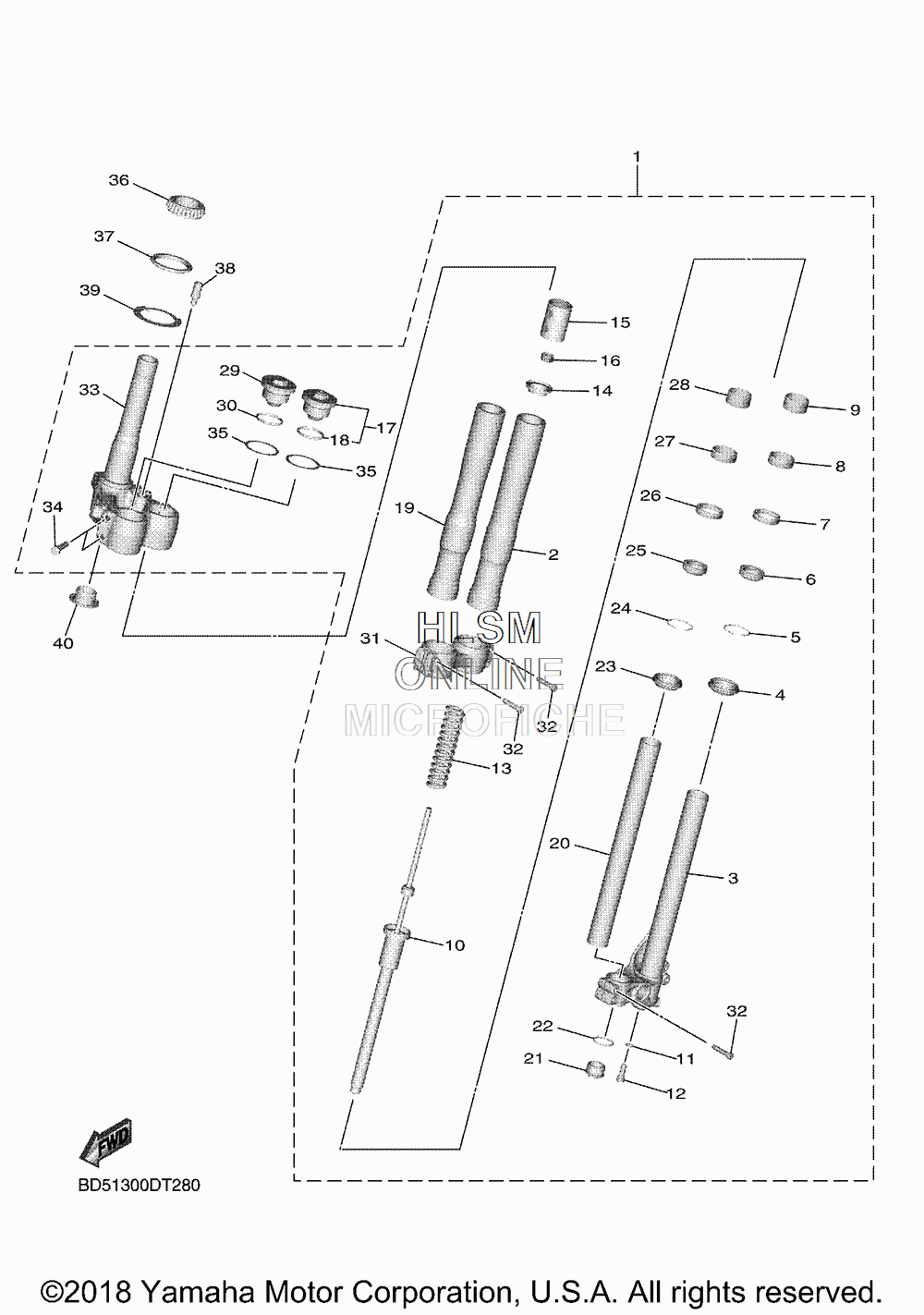

FRONT FORK 1 для Yamaha NIKIN - 2019 года выпуска`

№

Артикул

Название
1

BD5-23130-00-00 FORK UNIT ASSY

FORK UNIT ASSY

355 630 ₽
2

BD5-23126-00-00 ...TUBE, OUTER (LEFT HAND)

...TUBE, OUTER (LEFT HAND)

69 920 ₽
3

BD5-23110-00-00 ......INNER TUBE COMP. 1

......INNER TUBE COMP. 1

65 200 ₽
4

4PU-23144-00-00 ......SEAL, DUST (INCL. IN 4PU FORK SEAL KIT)

......SEAL, DUST (INCL. IN 4PU FORK SEAL KIT)

1 440 ₽
5

4V4-23153-L0-00 ...RING, SNAP (KYB)

...RING, SNAP (KYB)

500 ₽
6

4PU-23145-01-00 ......OIL SEAL (INCL. IN 4PU FORK SEAL KIT)

......OIL SEAL (INCL. IN 4PU FORK SEAL KIT)

1 260 ₽
7

4V4-23146-L0-00 ...WASHER, OIL SEAL (KYB)

...WASHER, OIL SEAL (KYB)

690 ₽
8

2CR-23125-00-00 ...METAL, SLIDE 1

...METAL, SLIDE 1

970 ₽
9

5EB-23171-00-00 ...PISTON, FRONT FORK

...PISTON, FRONT FORK

2 200 ₽
10

BD5-23170-00-00 ...CYLINDER COMP., FRONT FORK

...CYLINDER COMP., FRONT FORK

51 340 ₽
11

509-23158-L0-00 ...GASKET (KYB)

...GASKET (KYB)

880 ₽
12

5UX-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD

...BOLT, HEXAGON SOCKET HEAD

1 730 ₽
13

BD5-23141-00-00 ...SPRING, FRONT FORK

...SPRING, FRONT FORK

7 870 ₽
14

4XV-23142-00-00 ...SEAT, SPRING UPPER

...SEAT, SPRING UPPER

1 200 ₽
15

BD5-23118-00-00 ...SPACER

...SPACER

1 330 ₽
16

3LC-23357-00-00 ...NUT

...NUT

430 ₽
17

BD5-23111-00-00 ...BOLT, CAP

...BOLT, CAP

26 140 ₽
18

3XJ-23147-L0-00 ......O-RING

......O-RING

620 ₽
19

BD5-23136-00-00 ...TUBE, OUTER 2

...TUBE, OUTER 2

69 920 ₽
20

BD5-2332L-00-00 ...TUBE, INNER

...TUBE, INNER

21 570 ₽
21

BD5-2384M-00-00 ...CAP

...CAP

3 460 ₽
22

1TP-23188-00-00 ...O-RING

...O-RING

620 ₽
23

4EB-23144-00-00 ...SEAL, DUST (INCL. IN 4EB FORK SEAL KIT)

...SEAL, DUST (INCL. IN 4EB FORK SEAL KIT)

1 880 ₽
24

26H-23156-00-00 ...RING, SNAP

...RING, SNAP

480 ₽
25

4EB-23145-01-00 ...OIL SEAL (INCL. IN 4EB FORK SEAL KIT)

...OIL SEAL (INCL. IN 4EB FORK SEAL KIT)

1 060 ₽
26

36Y-23146-10-00 ...WASHER, OIL SEAL

...WASHER, OIL SEAL

1 040 ₽
27

1RC-23125-00-00 ...METAL, SLIDE 1

...METAL, SLIDE 1

1 440 ₽
28

4FM-23171-40-00 ...METAL, SLIDE

...METAL, SLIDE

2 200 ₽
29

BD5-2311J-00-00 ...BOLT, CAP 2

...BOLT, CAP 2

10 550 ₽
30

3XJ-23147-L0-00 ...O-RING

...O-RING

620 ₽
31

BD5-2386B-00-00 ......BRACKET, STABILIZER FRONT

......BRACKET, STABILIZER FRONT

36 380 ₽
32

91314-08035-00 ...BOLT, HEXAGON SOCKET HEAD

...BOLT, HEXAGON SOCKET HEAD

350 ₽
33

BD5-23340-00-00 ...UNDER BRACKET COMP.

...UNDER BRACKET COMP.

124 730 ₽
34

BD5-23436-00-00 ...BOLT

...BOLT

1 130 ₽
35

BD5-23153-00-00 ...RING, SNAP

...RING, SNAP

810 ₽
36

BD5-234H0-00-00 INNER RACE ASSY. 2

INNER RACE ASSY. 2

7 550 ₽
37

BD5-23462-00-00 SEAL, DUST

SEAL, DUST

1 000 ₽
38

BD5-2348H-00-00 SCREW,STOPPER

SCREW,STOPPER

2 200 ₽
39

BD5-23416-00-00 COVER, BALL RACE 2

COVER, BALL RACE 2

1 320 ₽
40

BD5-2319U-00-00 CAP

CAP

920 ₽
41

4PU-W003B-00-00 FORK SEAL KIT (INNER TUBE COMP. 1 & 2)

FORK SEAL KIT (INNER TUBE COMP. 1 & 2)

5 660 ₽
42

4EB-W003B-00-00 FORK SEAL KIT (TUBE, INNER)

FORK SEAL KIT (TUBE, INNER)

5 030 ₽
