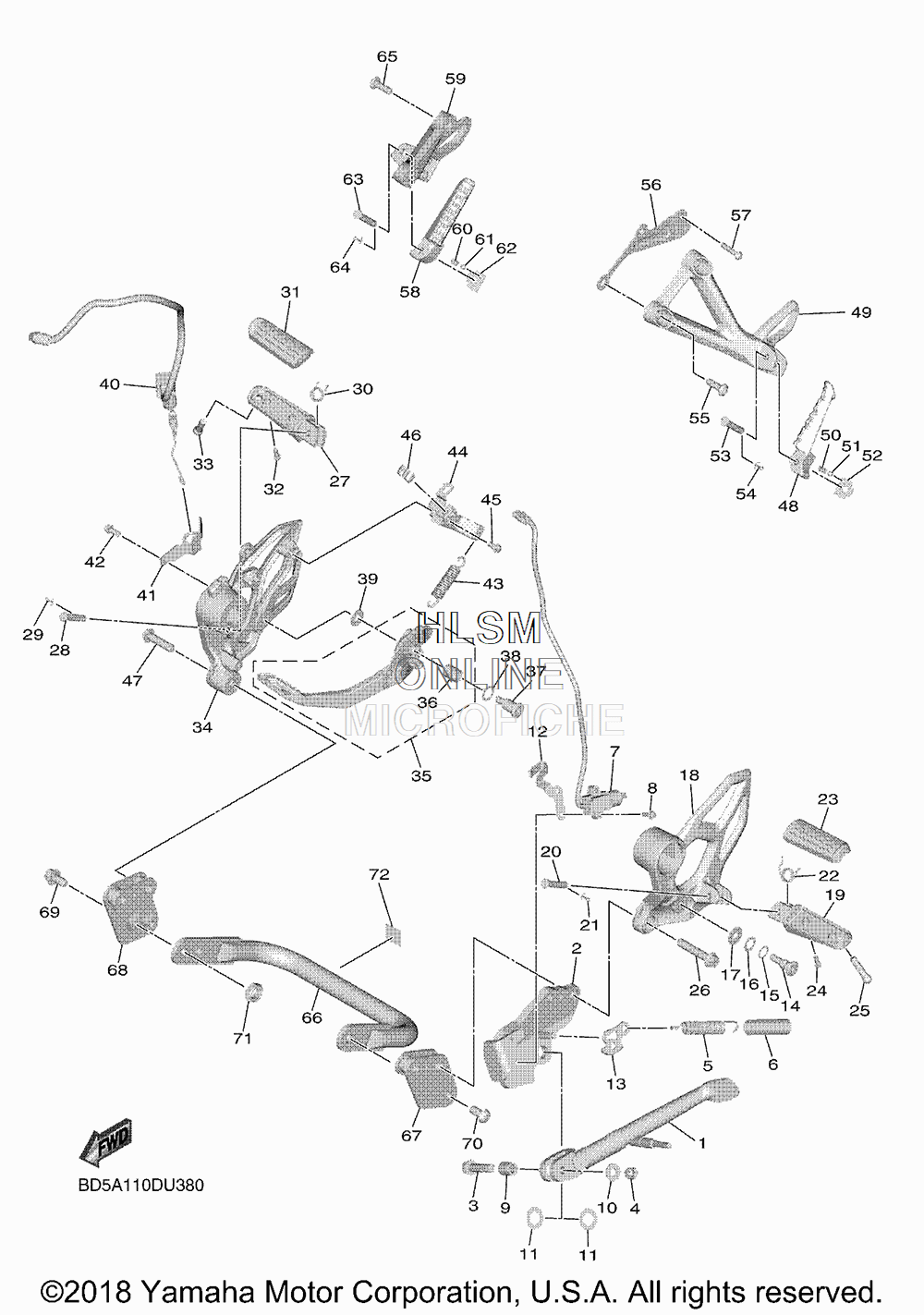

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha NIKIN - 2019 года выпуска
-
№АртикулНазвание
-
1BD5-27311-00-00 STAND, SIDESTAND, SIDE
-
2BD5-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
390105-10188-00 BOLT, FLANGEBOLT, FLANGE
-
495612-10100-00 NUT, UNUT, U
-
52S3-27116-00-00 SPRING, MAIN STANDSPRING, MAIN STAND
-
690445-197J2-00 HOSE (L60)HOSE (L60)
-
71RC-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
890110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990387-10050-00 COLLARCOLLAR
-
1090201-10035-00 WASHER, PLATEWASHER, PLATE
-
1190201-17018-00 WASHER, PLATEWASHER, PLATE
-
12BD5-27323-00-00 BRACKET 1BRACKET 1
-
132S3-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
142S3-27217-00-00 BOLTBOLT
-
1590206-12074-00 WASHER, WAVEWASHER, WAVE
-
1690201-12013-00 WASHER, PLATEWASHER, PLATE
-
1790201-080H1-00 WASHER, PLATEWASHER, PLATE
-
18BD5-27442-00-00 BRACKET 2BRACKET 2
-
194BH-27451-01-00 FOOTRESTFOOTREST
-
2091701-08040-00 PINPIN
-
2191401-25015-00 PIN, COTTERPIN, COTTER
-
2290508-183B9-00 SPRING, TORSIONSPRING, TORSION
-
23BD5-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2490157-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2590109-08231-00 BOLTBOLT
-
2690105-10329-00 BOLT, FLANGEBOLT, FLANGE
-
274BH-27461-01-00 FOOTRESTFOOTREST
-
2891701-08040-00 PINPIN
-
2991402-25015-00 PIN, COTTERPIN, COTTER
-
3090508-184B0-00 SPRING, TORSIONSPRING, TORSION
-
31BD5-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
3290157-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3390109-08231-00 BOLTBOLT
-
34BD5-27443-00-00 BRACKET 3BRACKET 3
-
35BD5-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
3690386-14171-00 ...BUSH...BUSH
-
374C8-27434-00-00 BOLTBOLT
-
3890206-14086-00 WASHER, WAVEWASHER, WAVE
-
3990201-08103-00 WASHER, PLATEWASHER, PLATE
-
40BD5-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
41BD5-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
4290110-06398-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4390506-26012-00 SPRING, TENSIONSPRING, TENSION
-
44BD5-27263-00-00 BRACKET 1BRACKET 1
-
4595022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4690464-11015-00 CLAMPCLAMP
-
4790105-10246-00 BOLT, FLANGEBOLT, FLANGE
-
48B5C-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
49BD5-2741L-00-00 BRACKET 4BRACKET 4
-
5090501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5193501-04011-00 BALLBALL
-
525VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
5391702-08040-00 PIN, CLEVISPIN, CLEVIS
-
5491401-25015-00 PIN, COTTERPIN, COTTER
-
5590111-08083-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
56BD5-27911-00-00 HOLDERHOLDER
-
5792017-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
58B5C-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
59BD5-2742L-00-00 BRACKET 5BRACKET 5
-
6090501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
6193501-04011-00 BALLBALL
-
625VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
6391702-08040-00 PIN, CLEVISPIN, CLEVIS
-
6491401-25015-00 PIN, COTTERPIN, COTTER
-
6590111-08083-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
66BD5-27133-00-00 TUBE, CROSS 1TUBE, CROSS 1
-
67BD5-274A3-00-00 BRACKET, ADAPTER 1BRACKET, ADAPTER 1
-
68BD5-274A4-00-00 BRACKET, ADAPTER 2BRACKET, ADAPTER 2
-
6995817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
7092017-10025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7190185-10170-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
72BD5-2815P-00-00 LABEL, NOTICE 1LABEL, NOTICE 1
