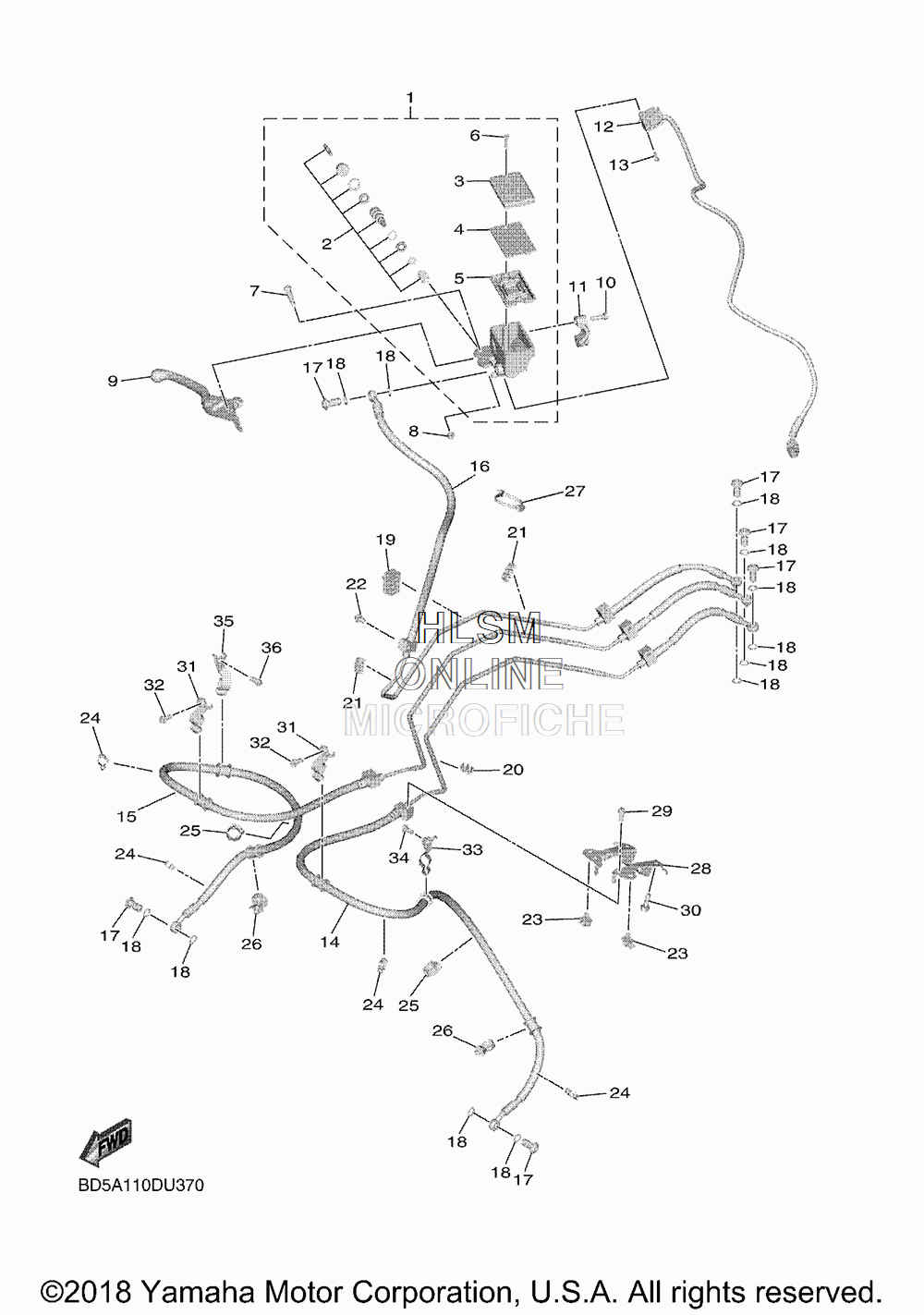

BRAKE - FRONT MASTER CYLINDER для Yamaha NIKIN - 2019 года выпуска`
-
№АртикулНазвание
-
1BD5-2580A-00-00 MASTER CYLINDER SUB ASSY 2MASTER CYLINDER SUB ASSY 2
-
2BD5-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VS-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
45VS-25855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
520S-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
95VS-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
115VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
12BD5-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1397602-04214-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
14BD5-2584A-00-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
15BD5-2584B-00-00 HOSE, BRAKEHOSE, BRAKE
-
16BD5-2584C-01-00 HOSE, BRAKEHOSE, BRAKE
-
1790401-10172-00 BOLT, UNIONBOLT, UNION
-
1890430-10005-00 GASKETGASKET
-
1990464-07262-00 CLAMPCLAMP
-
2090468-15139-00 CLIPCLIP
-
2190464-07003-00 CLAMPCLAMP
-
2290111-06160-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2390464-07001-00 CLAMPCLAMP
-
2490464-12013-00 CLAMPCLAMP
-
2590464-16003-00 CLAMPCLAMP
-
2690464-14013-00 CLAMPCLAMP
-
2790464-45009-00 CLAMPCLAMP
-
28BD5-2133J-00-00 BRACKET, BRAKE PIPE 2BRACKET, BRAKE PIPE 2
-
2995027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3095807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
31BD5-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
3295027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
33BD5-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3495027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
35BD5-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3695027-06014-00 BOLT, FLANGEBOLT, FLANGE
