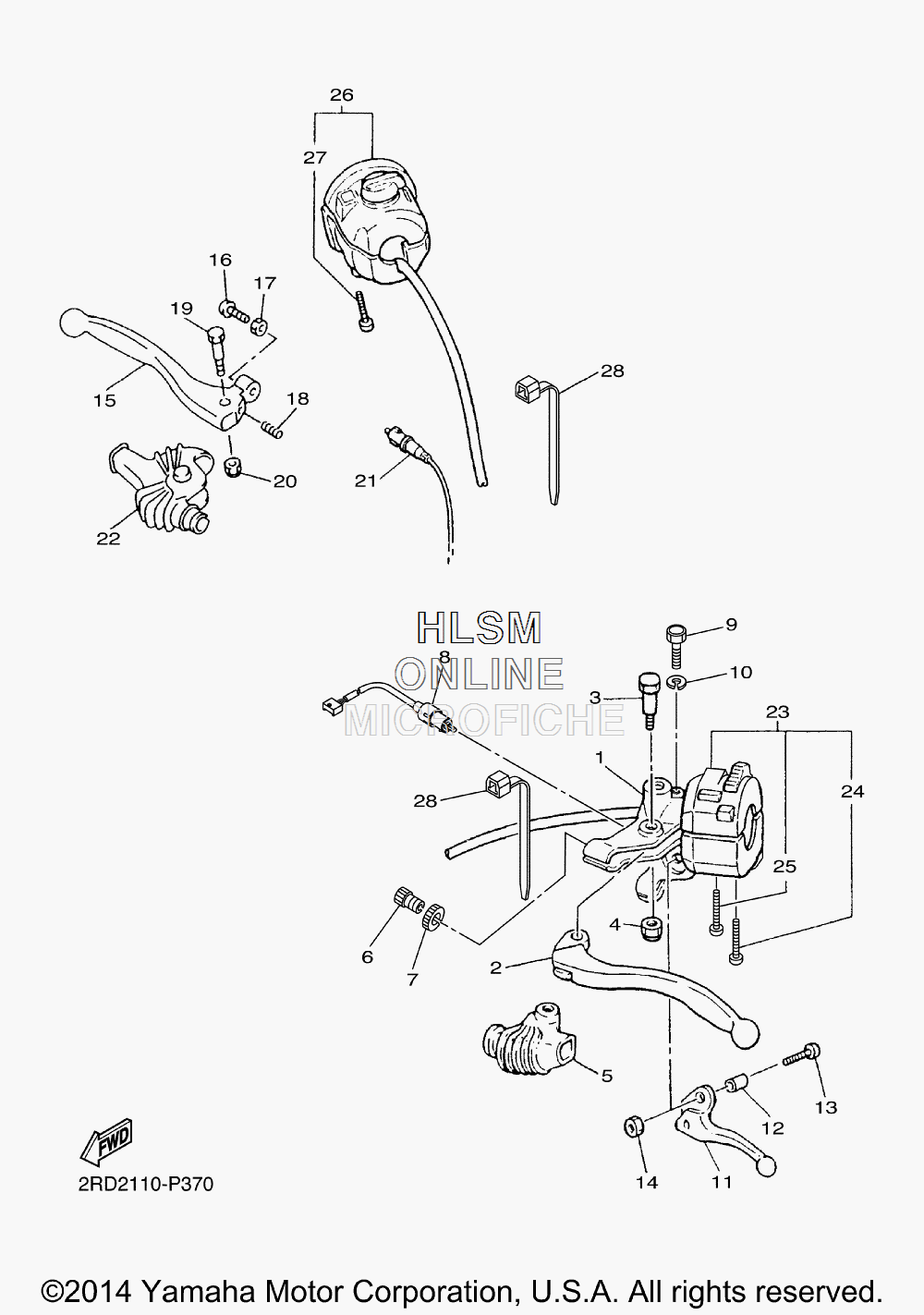

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha SR400 - 2015 года выпуска`
-
№АртикулНазвание
-
13HT-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
22HT-83912-01-00 LEVER 1LEVER 1
-
33HT-83945-00-00 BOLT, LEVERBOLT, LEVER
-
495607-06100-00 NUT, UNUT, U
-
51E6-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
690123-08046-00 BOLTBOLT
-
790179-08148-00 NUTNUT
-
83HT-82917-00-00 SWITCHSWITCH
-
997007-06022-00 BOLTBOLT
-
1092907-06100-00 .WASHER, SPRING.WASHER, SPRING
-
11583-83981-00-00 LEVER, DECOMPRESSIONLEVER, DECOMPRESSION
-
12583-83913-00-00 COLLAR, DECOMPRESSION LEVERCOLLAR, DECOMPRESSION LEVER
-
1398507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1495607-05100-00 NUT, UNUT, U
-
1538W-83922-01-00 LEVER 2LEVER 2
-
1690149-06131-00 SCREWSCREW
-
1790170-06021-00 NUTNUT
-
1890501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1990109-06577-00 BOLTBOLT
-
2095607-06100-00 NUT, UNUT, U
-
213HT-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
221T5-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
232RD-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
2498507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2598507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
262RD-83976-00-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
2798507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2890464-13073-00 CLAMPCLAMP
