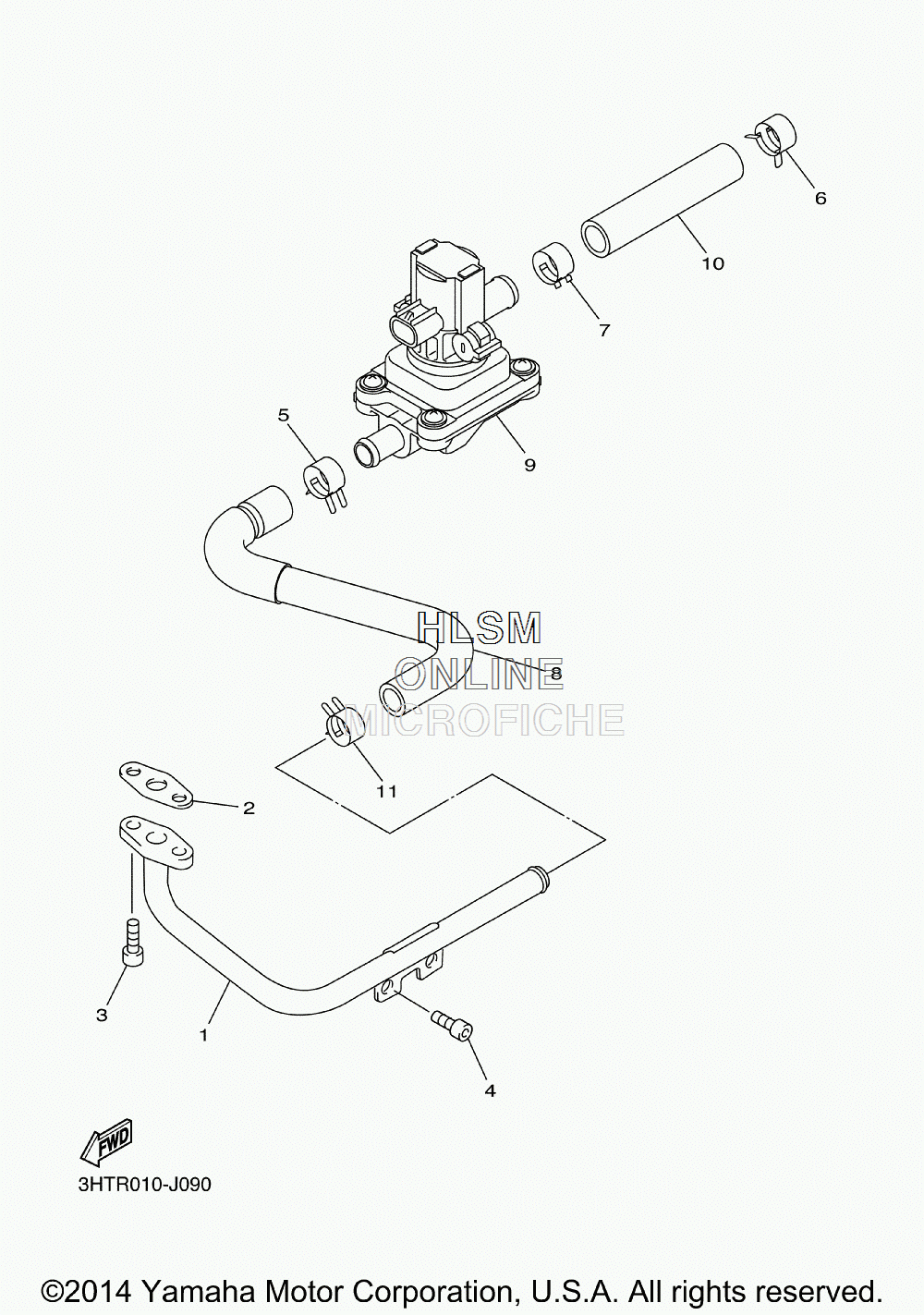

AIR INDUCTION SYSTEM для Yamaha SR400 - 2015 года выпуска`
-
№АртикулНазвание
-
13HT-14871-00-00 PIPE 1PIPE 1
-
23HT-14815-00-00 GASKETGASKET
-
391380-06016-00 BOLTBOLT
-
491314-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590468-08104-00 CLIPCLIP
-
690467-16009-00 CLIPCLIP
-
790467-160A1-00 CLIPCLIP
-
83HT-14881-R0-00 HOSE, BEND 1HOSE, BEND 1
-
93HT-14803-R0-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
103HT-14882-R0-00 HOSE, BEND 2HOSE, BEND 2
-
1190467-140A5-00 CLIPCLIP
