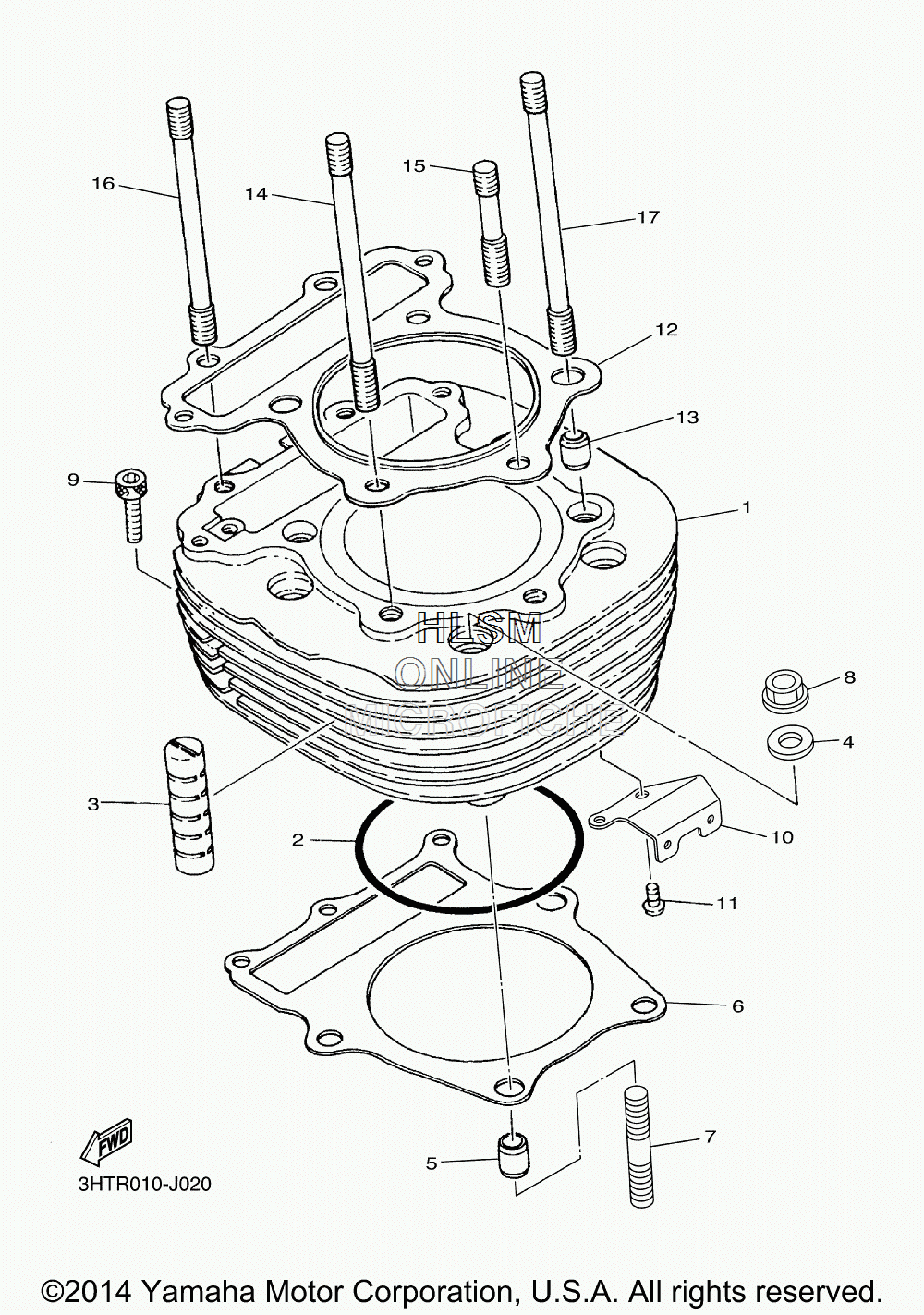

CYLINDER для Yamaha SR400 - 2015 года выпуска
-
№АртикулНазвание
-
13HT-11310-20-00 CYLINDERCYLINDER
-
293210-92295-00 O-RINGO-RING
-
3583-11127-00-00 ABSORBER 3ABSORBER 3
-
490201-10590-00 WASHER, PLATEWASHER, PLATE
-
599530-14016-00 PIN, DOWELPIN, DOWEL
-
63HT-11351-R0-00 GASKET, CYLINDERGASKET, CYLINDER
-
790116-10087-00 BOLT, STUDBOLT, STUD
-
890179-10030-00 NUTNUT
-
991312-06030-00 BOLTBOLT
-
103HT-11395-00-00 HOLDERHOLDER
-
1192014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
123HT-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1399530-14016-00 PIN, DOWELPIN, DOWEL
-
1490116-10222-00 BOLT, STUDBOLT, STUD
-
1590116-10223-00 BOLT, STUDBOLT, STUD
-
1690116-08190-00 BOLT, STUDBOLT, STUD
-
1790116-10225-00 BOLT, STUDBOLT, STUD
