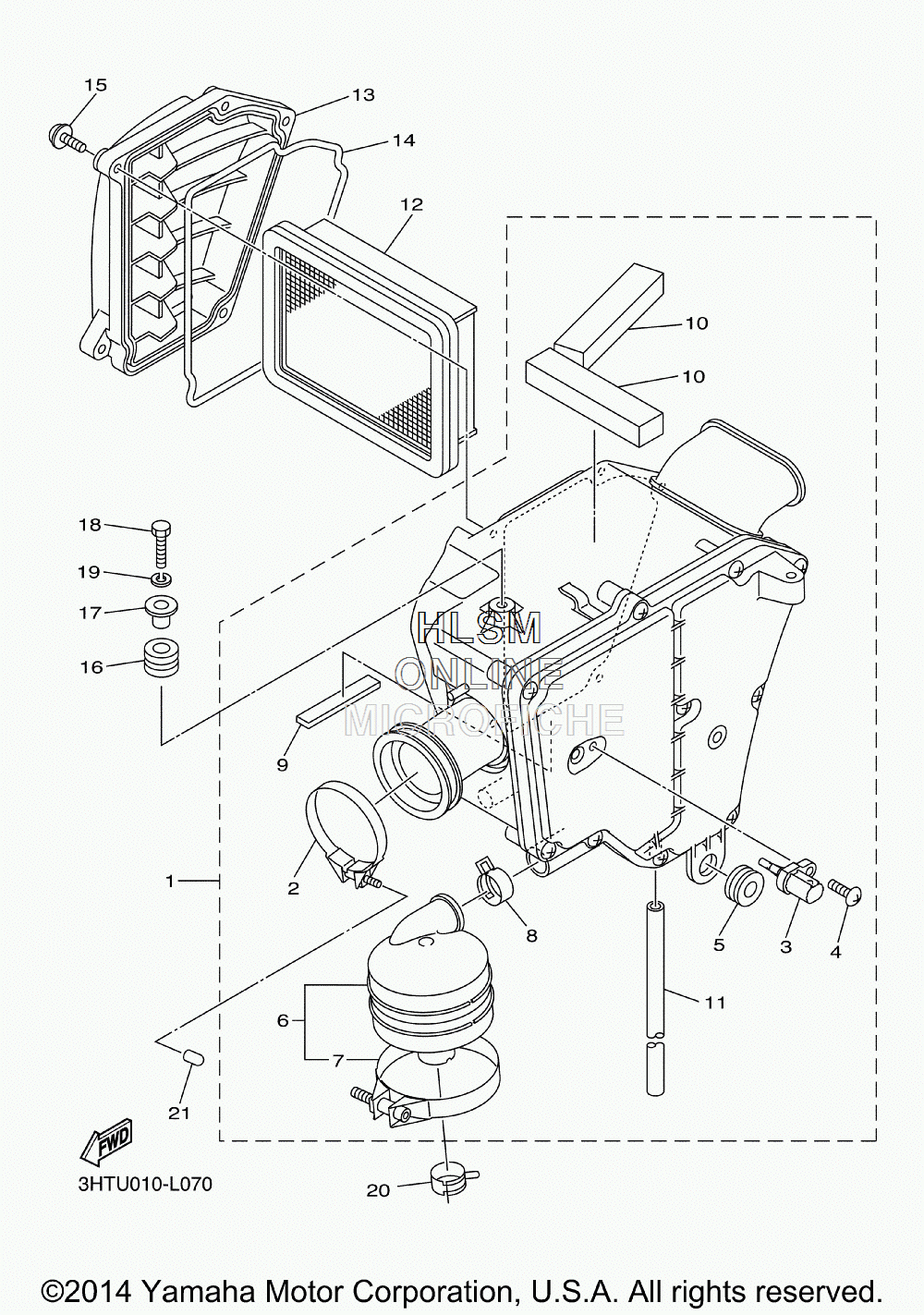

AIR CLEANER W/ INTAKE для Yamaha SR400 - 2015 года выпуска`
-
№АртикулНазвание
-
13HT-14401-R0-00 AIR CLEANER CASE ASSYAIR CLEANER CASE ASSY
-
290450-55001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
38FP-85886-00-00 ...SENSOR, AIR TEMPERATURE...SENSOR, AIR TEMPERATURE
-
498902-05012-00 ...SCREW, BIND...SCREW, BIND
-
590480-14329-00 ...GROMMET...GROMMET
-
63HT-15370-R0-00 ...BREATHER ASSY...BREATHER ASSY
-
790450-73002-00 ......HOSE CLAMP ASSY......HOSE CLAMP ASSY
-
890467-20154-00 ...CLIP...CLIP
-
93HT-14425-R0-00 ...DAMPER 1...DAMPER 1
-
103HT-14426-R0-00 ...DAMPER 2...DAMPER 2
-
1190445-10140-00 ...HOSE (L280)...HOSE (L280)
-
124B5-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
133HT-1441A-R0-00 COVER, CLEANER CASE 1COVER, CLEANER CASE 1
-
143HT-14462-R0-00 SEALSEAL
-
1598902-05020-00 SCREW, BINDSCREW, BIND
-
1690480-14102-00 GROMMETGROMMET
-
1790387-07391-00 COLLARCOLLAR
-
1897007-06025-00 BOLTBOLT
-
1992907-06100-00 .WASHER, SPRING.WASHER, SPRING
-
2090467-20154-00 CLIPCLIP
-
21895-14169-00-00 CAPCAP
