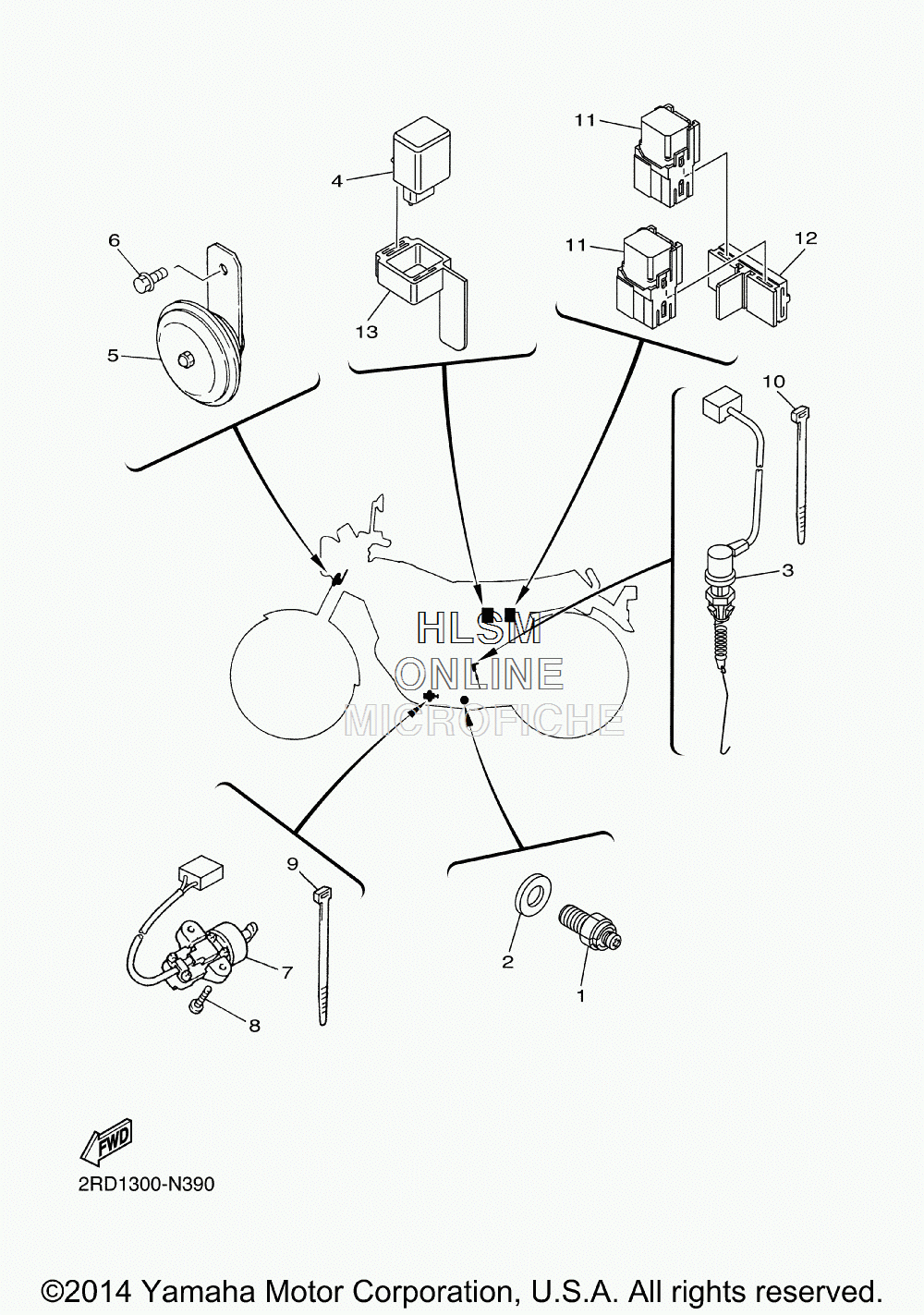

ELECTRICAL 2 для Yamaha SR400 - 2015 года выпуска`
-
№АртикулНазвание
-
14KM-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
290430-10148-00 GASKETGASKET
-
33HT-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
43HT-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
525G-83371-00-00 HORNHORN
-
695807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
73D8-82566-70-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
890157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
91UA-82591-00-00 BANDBAND
-
101UA-82591-00-00 BANDBAND
-
115UM-81950-E0-00 RELAY ASSYRELAY ASSY
-
125XT-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
133HT-82176-00-00 DAMPERDAMPER
