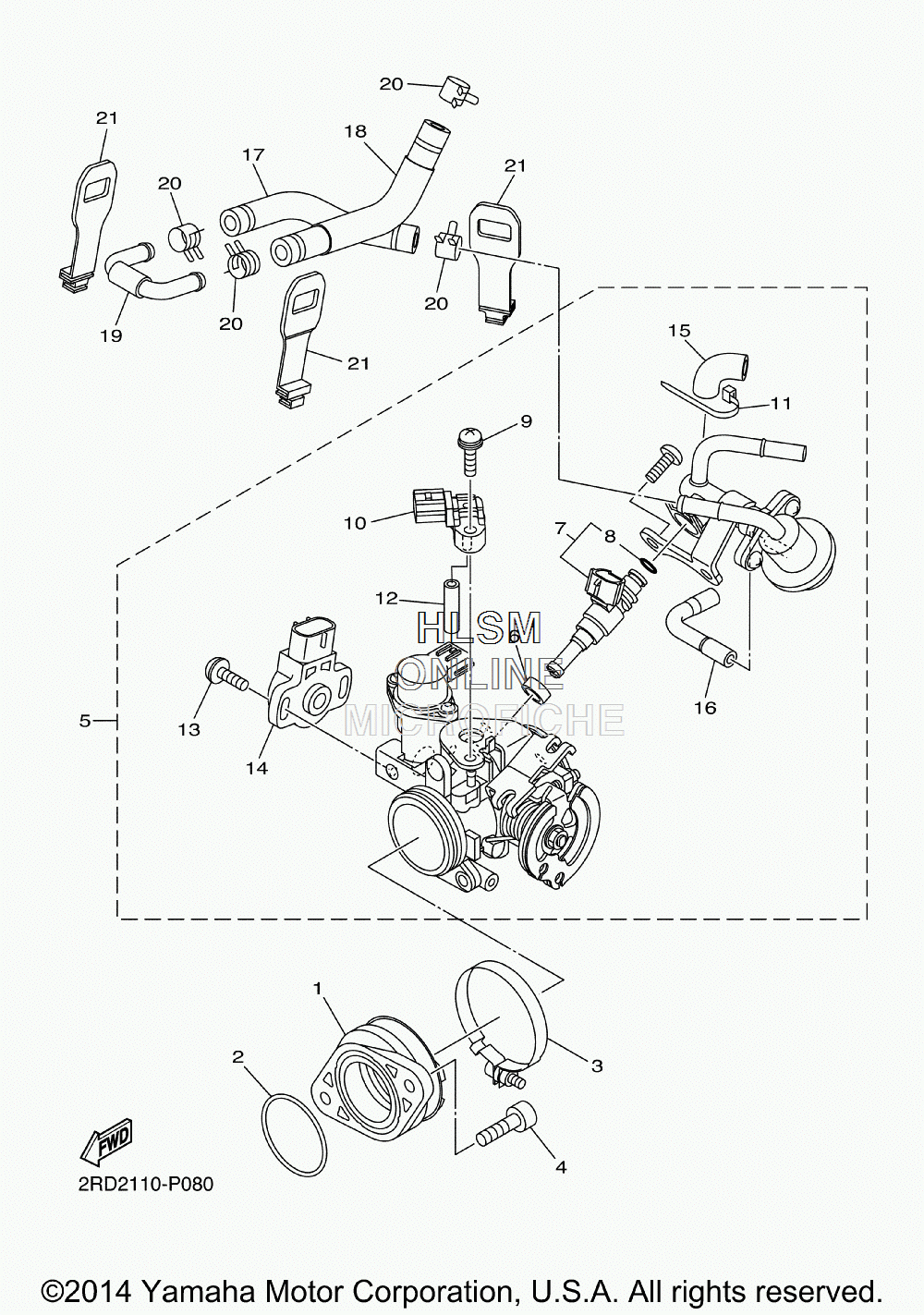

THROTTLE BODY ASSY. для Yamaha SR400 - 2015 года выпуска`
-
№АртикулНазвание
-
13HT-13586-R0-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-40659-00 O-RINGO-RING
-
390450-54006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
491317-06020-00 BOLTBOLT
-
53HT-13750-R0-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
52RD-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
68FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
74C8-13761-00-00 ...INJECTOR...INJECTOR
-
85PS-14147-00-00 ......O-RING......O-RING
-
92C0-14216-00-00 ...SCREW...SCREW
-
105S7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
114KM-14137-00-00 ...CLIP...CLIP
-
125FL-14348-10-00 ...PIPE 1...PIPE 1
-
138CC-14216-10-00 ...SCREW...SCREW
-
143P6-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
153D7-14987-00-00 ...HOSE...HOSE
-
163HT-13544-R0-00 ...HOSE, VACUUM SENSING 2...HOSE, VACUUM SENSING 2
-
172RD-13972-00-00 PIPE, FUEL 2PIPE, FUEL 2
-
182RD-13973-00-00 PIPE, FUEL 3PIPE, FUEL 3
-
193HT-14389-R0-00 NIPPLE ASSYNIPPLE ASSY
-
2090467-12003-00 CLIPCLIP
-
215JW-1479J-01-00 COVER 2COVER 2
