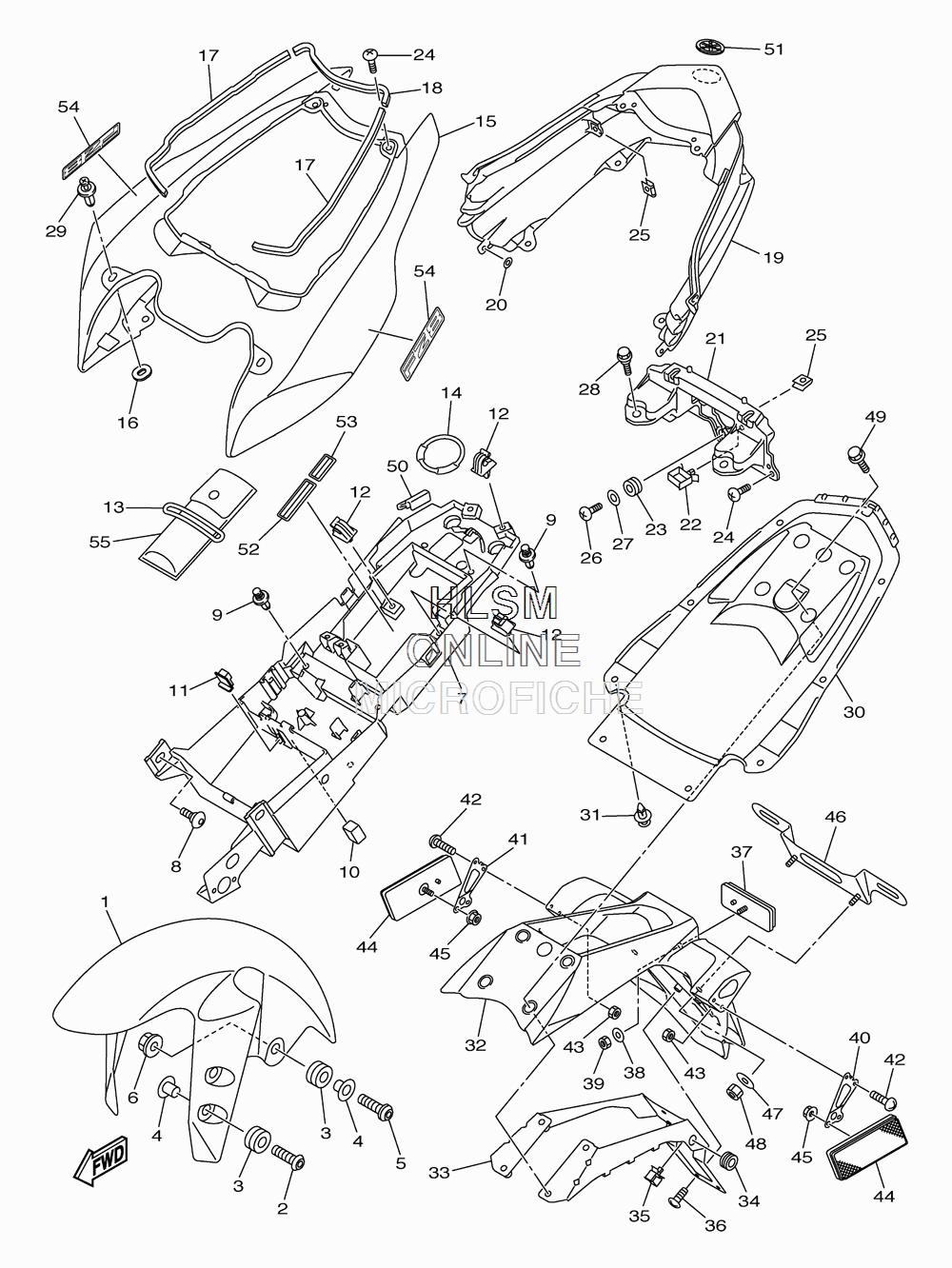

FENDER - FRONT / REAR для Yamaha FZ8 - 2012 года выпуска`
-
№АртикулНазвание
-
15PW-21511-01-PH FENDER, FRONT (MAT BLACK 2)FENDER, FRONT (MAT BLACK 2)
-
290149-06302-00 SCREWSCREW
-
390480-12072-00 GROMMETGROMMET
-
490387-065J6-00 COLLARCOLLAR
-
590111-06030-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
695702-06500-00 NUT, FLANGENUT, FLANGE
-
72D1-8212B-02-00 BOX, BATTERY 1BOX, BATTERY 1
-
890109-06253-00 BOLTBOLT
-
990269-07077-00 RIVETRIVET
-
102D1-216A2-00-00 SEAL, 2SEAL, 2
-
112D1-216A3-00-00 SEAL, 3SEAL, 3
-
1290464-07259-00 CLAMPCLAMP
-
134XV-21376-00-00 BAND, TOOLBAND, TOOL
-
142D1-21646-00-00 BANDBAND
-
1539P-21651-00-P3 COVER, REAR FENDER (MAT GRAY METALLIC 3)COVER, REAR FENDER (MAT GRAY METALLIC 3)
-
165PW-2174X-00-00 DAMPERDAMPER
-
1790520-05014-00 DAMPER, PLATEDAMPER, PLATE
-
1890520-05013-00 DAMPER, PLATEDAMPER, PLATE
-
1939P-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
2090183-05M02-00 NUT, SPRINGNUT, SPRING
-
2139P-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2290464-16021-00 CLAMPCLAMP
-
2390480-18276-00 GROMMETGROMMET
-
2497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2590183-05042-00 NUT, SPRINGNUT, SPRING
-
2697702-50014-00 SCREW, TRUSSSCREW, TRUSS
-
2790201-05036-00 WASHER, PLATEWASHER, PLATE
-
2890109-06172-00 BOLTBOLT
-
2990269-07076-00 RIVETRIVET
-
3039P-21611-00-00 FENDER, REARFENDER, REAR
-
3190269-07077-00 RIVETRIVET
-
322D1-21629-10-00 GUARD, MUDGUARD, MUD
-
332D1-21688-02-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
3490480-13004-00 GROMMETGROMMET
-
3590464-16021-00 CLAMPCLAMP
-
3690160-05012-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
373Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3890201-05043-00 WASHER, PLATEWASHER, PLATE
-
3995602-05100-00 NUT, UNUT, U
-
405VY-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
415VY-21689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
4290150-04041-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
4395602-04100-00 NUT,U (6E8)NUT,U (6E8)
-
443Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4595702-05500-00 NUT, FLANGENUT, FLANGE
-
4639P-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
4790201-06088-00 WASHER, PLATEWASHER, PLATE
-
4895602-06100-00 NUT, UNUT, U
-
4990105-08180-00 BOLT, FLANGEBOLT, FLANGE
-
5039P-24785-00-00 MOLD, SEATMOLD, SEAT
-
514KN-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
523JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
533TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
5439P-2163G-20-00 EMBLEM 1EMBLEM 1
-
5539P-28100-01-00 TOOL KITTOOL KIT
