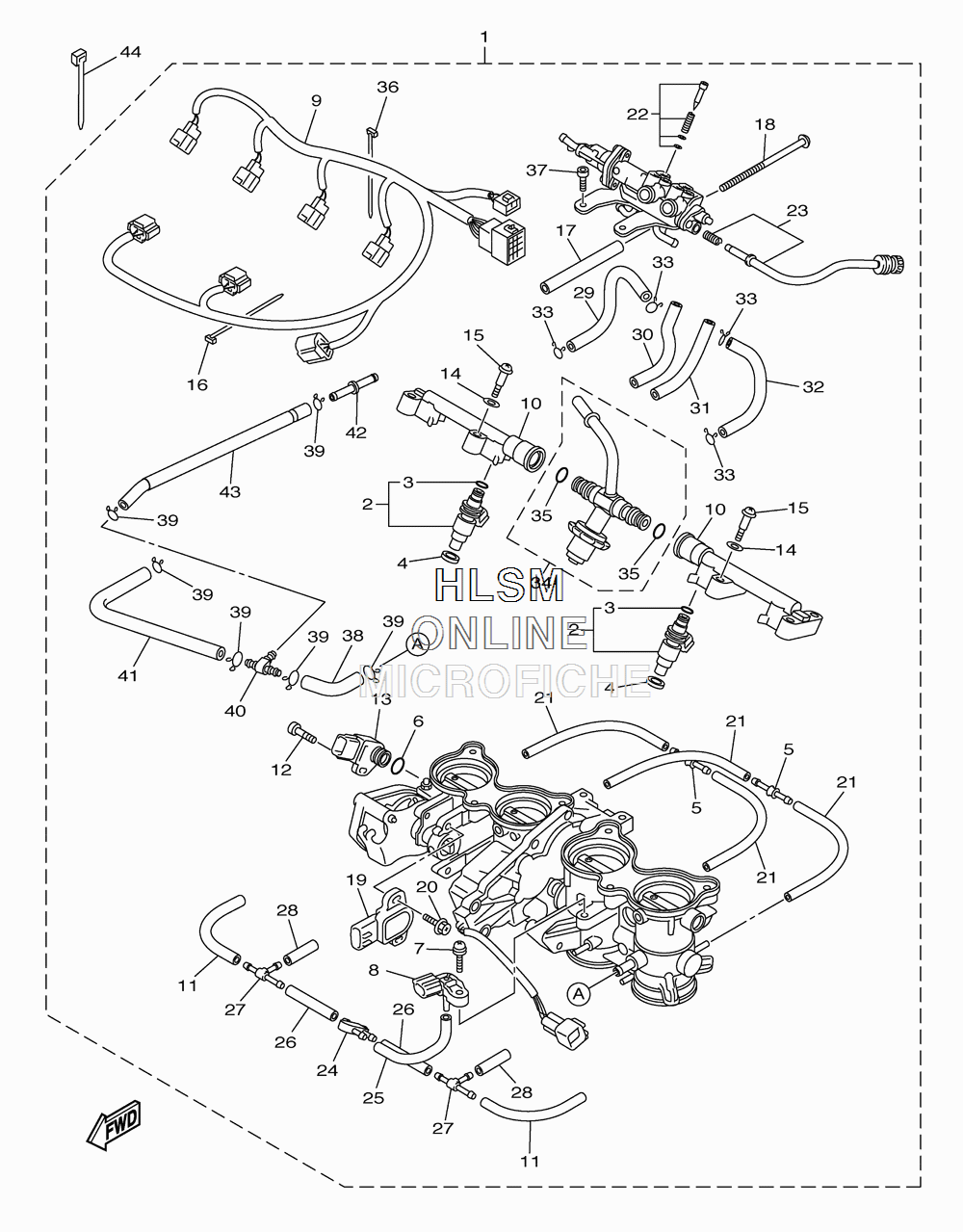

THROTTLE BODY ASSY. для Yamaha FZ8 - 2012 года выпуска`
-
№АртикулНазвание
-
139P-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
139P-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
239P-13761-00-00 ...INJECTOR...INJECTOR
-
35PS-14147-00-00 ......O-RING......O-RING
-
48FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
55PW-14251-00-00 ...NIPPLE...NIPPLE
-
65YP-14561-00-00 ...O-RING...O-RING
-
72C0-14216-00-00 ...SCREW...SCREW
-
85S7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
939P-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
1039P-1393A-00-00 ...PIPE, INL....PIPE, INL.
-
1169J-13532-00-00 ...HOSE, VACUUM SENSING 3...HOSE, VACUUM SENSING 3
-
128CC-14216-10-00 ...SCREW...SCREW
-
135P0-H5885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
14363-14198-00-00 ...GASKET...GASKET
-
1514B-13573-00-00 ...BOLT 1...BOLT 1
-
1639P-14137-00-00 ...CLIP...CLIP
-
175VX-14149-00-00 ...PIPE...PIPE
-
185VX-14565-00-00 ...SCREW...SCREW
-
198GL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
205FL-14216-00-00 ...SCREW...SCREW
-
215JW-14349-00-00 ...PIPE...PIPE
-
225JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
2339P-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
243XV-14251-00-00 ...NIPPLE...NIPPLE
-
255JW-14349-10-00 ...PIPE...PIPE
-
268FP-14349-20-00 ...PIPE...PIPE
-
2768V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
285FL-14348-10-00 ...PIPE 1...PIPE 1
-
2939P-14807-00-00 ...HOSE COMP....HOSE COMP.
-
3039P-14987-00-00 ...HOSE...HOSE
-
3131H-14987-00-00 ...HOSE...HOSE
-
3239P-14396-00-00 ...PIPE...PIPE
-
333UH-14937-00-00 ...CLIP...CLIP
-
3439P-13795-00-00 ...JOINT, THROTTLE BODY 1...JOINT, THROTTLE BODY 1
-
3539P-14147-00-00 ......O-RING......O-RING
-
3690464-23003-00 ...CLAMP...CLAMP
-
3739P-14592-00-00 ...SCREW...SCREW
-
3839P-14465-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
3990467-100A1-00 ...CLIP (CALIF ONLY)...CLIP (CALIF ONLY)
-
4090413-06031-00 ...WAY 3 (CALIF ONLY)...WAY 3 (CALIF ONLY)
-
4139P-14466-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
424XY-14568-00-00 ...JOINT (CALIF ONLY)...JOINT (CALIF ONLY)
-
4339P-1443J-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
4490465-13M11-00 CLAMPCLAMP
