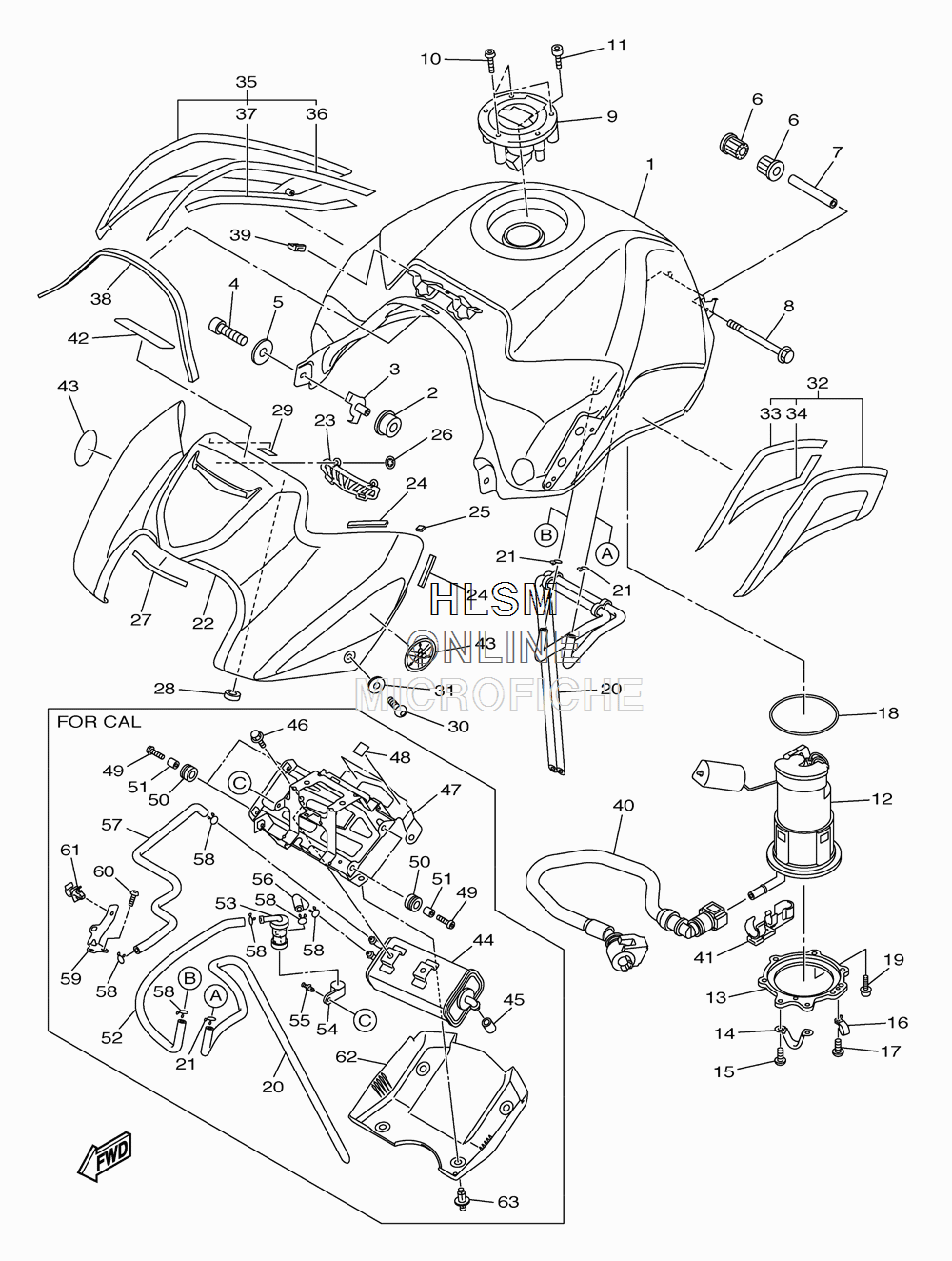

FUEL TANK для Yamaha FZ8 - 2012 года выпуска
-
№АртикулНазвание
-
139P-24110-00-P4 FUEL TANK COMP. (MAT GRAY METALLIC 3)FUEL TANK COMP. (MAT GRAY METALLIC 3)
-
25VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
32D1-2412G-00-00 COLLARCOLLAR
-
491312-06016-00 BOLTBOLT
-
590201-06086-00 WASHER, PLATEWASHER, PLATE
-
65SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
790387-06055-00 COLLARCOLLAR
-
895022-06090-00 BOLT, FLANGEBOLT, FLANGE
-
939P-24602-00-00 CAP ASSYCAP ASSY
-
1090110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1191312-05010-00 BOLTBOLT
-
1239P-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
1339P-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
142D1-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
1598902-05008-00 SCREW, BINDSCREW, BIND
-
1690461-10010-00 CLAMPCLAMP
-
1790154-05035-00 SCREW, BINDINGSCREW, BINDING
-
1819B-24486-00-00 O-RINGO-RING
-
1990110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2039P-24317-00-00 PIPE 7 (EXCEPT CALIF)PIPE 7 (EXCEPT CALIF)
-
2039P-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
2190467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
2239P-2171A-10-P0 COVER, TOP (MAT BLACK 2)COVER, TOP (MAT BLACK 2)
-
2339P-241B1-00-00 COVER, TANKCOVER, TANK
-
244XV-2834E-00-00 DAMPER 3DAMPER 3
-
2514B-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2690183-05M02-00 NUT, SPRINGNUT, SPRING
-
2739P-28307-00-00 SEALSEAL
-
284FM-28372-00-00 DAMPERDAMPER
-
294RR-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
3090111-05019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190202-05224-00 WASHER, PLATEWASHER, PLATE
-
3239P-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
3339P-241A3-00-00 ...SEAL 3...SEAL 3
-
3439P-241A5-00-00 ...SEAL 5...SEAL 5
-
3539P-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
3639P-241A4-00-00 ...SEAL 4...SEAL 4
-
3739P-241A6-00-00 ...SEAL 6...SEAL 6
-
382D1-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
395PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
4039P-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
4190464-16005-00 CLAMPCLAMP
-
425GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
435SL-2413B-00-00 EMBLEMEMBLEM
-
4439P-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
4590445-11418-00 HOSE (L18) (CALIF ONLY)HOSE (L18) (CALIF ONLY)
-
4695802-06010-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
4739P-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
485YU-21639-00-00 DAMPER 2 (CALIF ONLY)DAMPER 2 (CALIF ONLY)
-
4992012-06020-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
5090480-14030-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
5190387-065L7-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
5239P-24313-00-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
532C0-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
5490461-15139-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
5590269-05005-00 RIVET (CALIF ONLY)RIVET (CALIF ONLY)
-
5639P-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
5739P-1444J-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
5890467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5939P-24216-00-00 STAY (CALIF ONLY)STAY (CALIF ONLY)
-
6092012-06016-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
6190464-10125-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
625D0-2172W-00-00 COVER (CALIF ONLY)COVER (CALIF ONLY)
-
6390269-07077-00 RIVET (CALIF ONLY)RIVET (CALIF ONLY)
