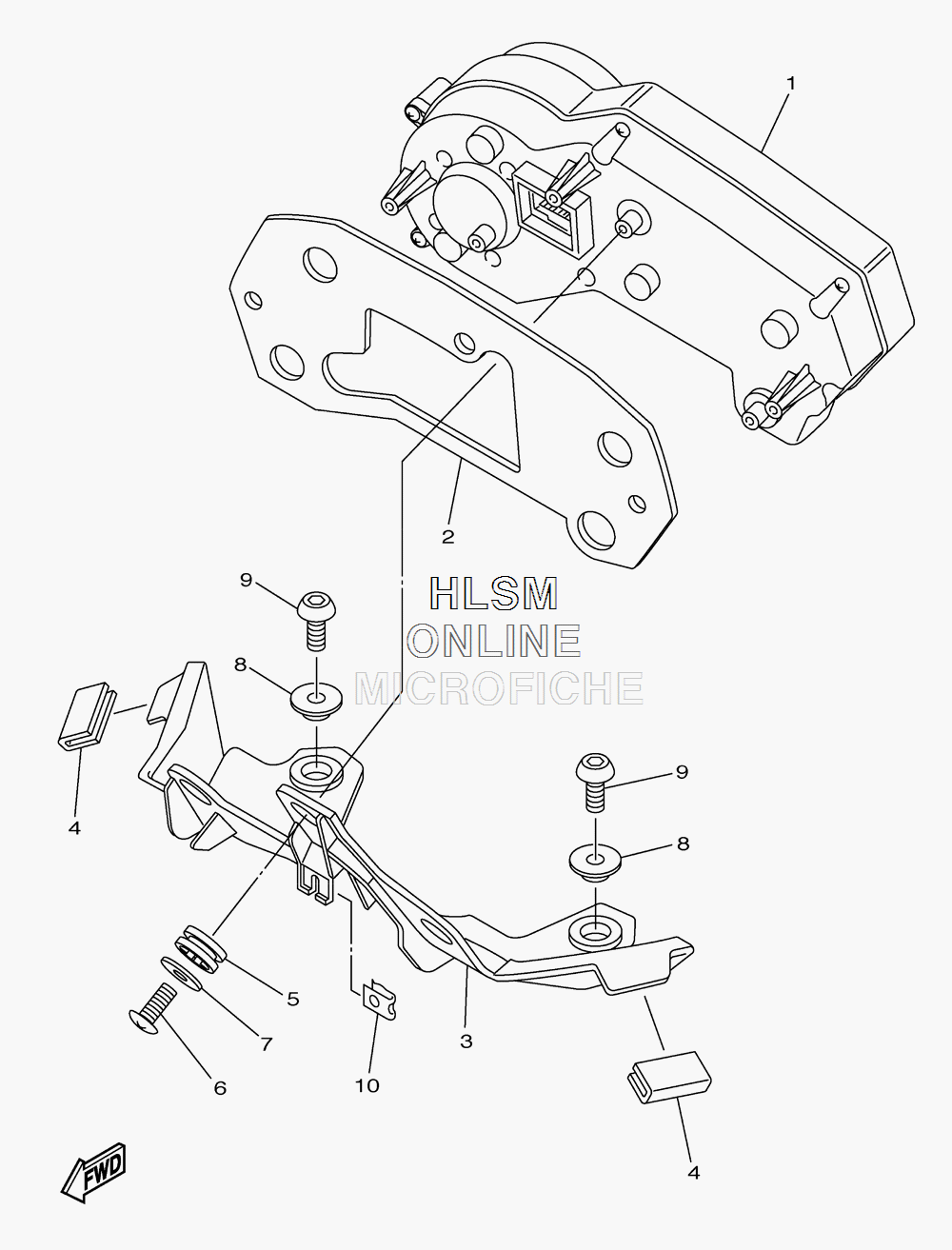

INSTRUMENT PANEL для Yamaha FZ8 - 2012 года выпуска`
-
№АртикулНазвание
-
139P-83500-20-00 METER ASSY (MPH)METER ASSY (MPH)
-
239P-83615-00-00 BLIND, METERBLIND, METER
-
339P-24881-00-00 BRACKET, METERBRACKET, METER
-
490520-05017-00 DAMPER, PLATEDAMPER, PLATE
-
54XV-83513-00-00 DAMPERDAMPER
-
690160-05012-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
790201-05036-00 WASHER, PLATEWASHER, PLATE
-
890387-06170-00 COLLARCOLLAR
-
990111-06059-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090183-05074-00 NUT, SPRINGNUT, SPRING
