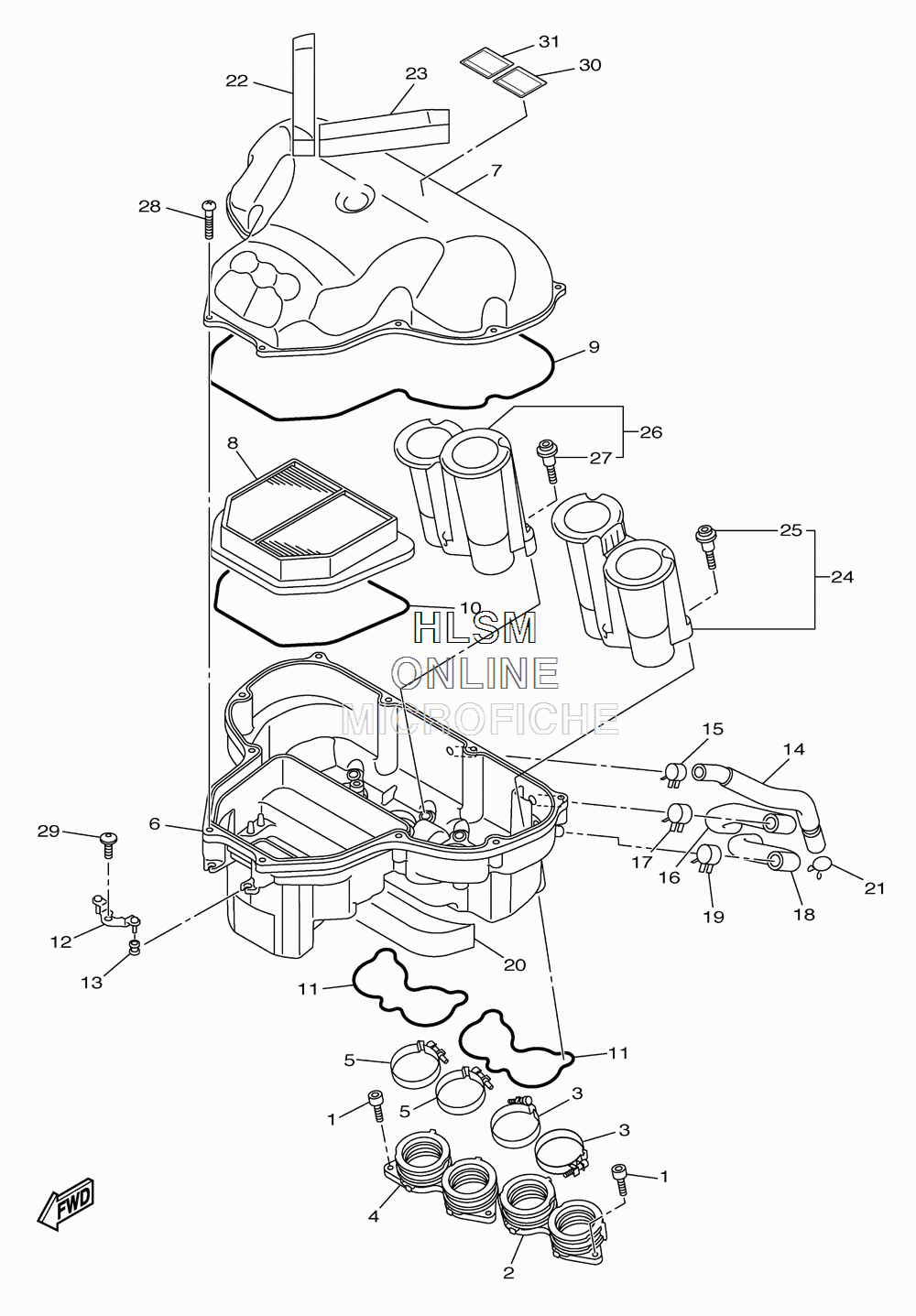

AIR CLEANER W/ INTAKE для Yamaha FZ8 - 2012 года выпуска`
-
№АртикулНазвание
-
191312-06016-00 BOLTBOLT
-
239P-13595-00-00 JOINTJOINT
-
390450-56007-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
439P-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
590450-56007-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
639P-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
739P-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
82D1-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
92D1-14452-00-00 SEALSEAL
-
102D1-14462-00-00 SEALSEAL
-
1139P-14457-00-00 SEALSEAL
-
122D1-14498-00-00 STAY 1STAY 1
-
1390480-08264-00 GROMMETGROMMET
-
1439P-15393-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
1590467-14171-00 CLIPCLIP
-
1639P-14148-00-00 PIPEPIPE
-
1790467-17003-00 CLIPCLIP
-
1839P-14149-00-00 PIPEPIPE
-
1990467-17003-00 CLIPCLIP
-
202D1-14409-00-00 DAMPERDAMPER
-
2190467-14015-00 CLIPCLIP
-
2239P-14425-00-00 DAMPER 1DAMPER 1
-
2339P-14426-00-00 DAMPER 2DAMPER 2
-
2439P-1440B-00-00 JOINT ASSYJOINT ASSY
-
2590109-05005-00 ...BOLT...BOLT
-
2639P-1440C-00-00 JOINT ASSY 2JOINT ASSY 2
-
2790109-05005-00 ...BOLT...BOLT
-
2890160-05013-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2990111-06038-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
3039P-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
3113S-21684-10-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
