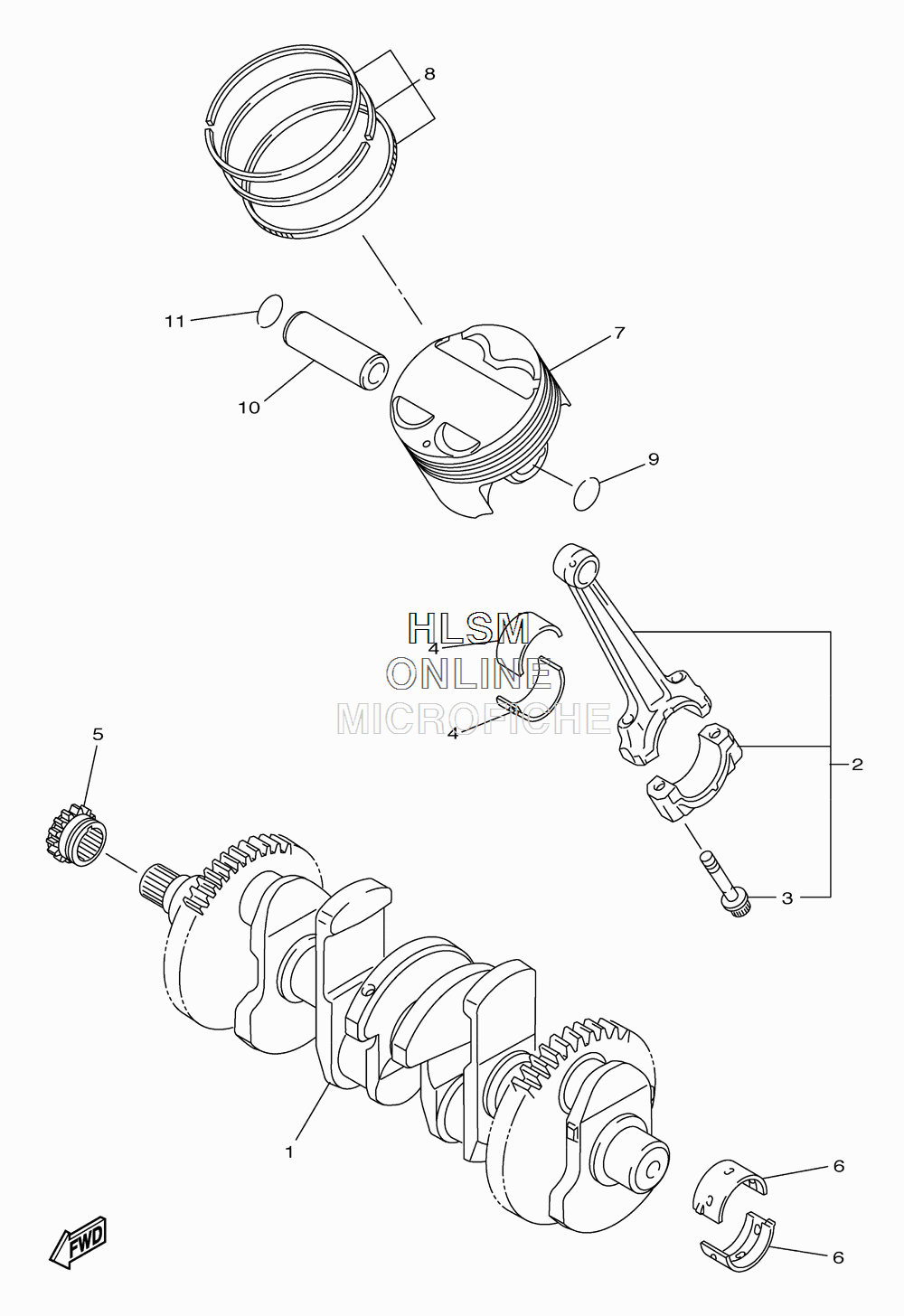

CRANKSHAFT - PISTON для Yamaha FZ8 - 2012 года выпуска`
-
№АртикулНазвание
-
14C8-11411-00-00 CRANKSHAFTCRANKSHAFT
-
214B-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35VY-11654-01-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
42D1-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
42D1-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
42D1-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
42D1-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
539P-11549-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
65VY-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
65VY-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
65VY-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
65VY-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
65VY-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
739P-11631-00-00 PISTON (STD)PISTON (STD)
-
839P-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
993450-18157-00 CIRCLIPCIRCLIP
-
1039P-11633-00-00 PIN, PISTONPIN, PISTON
-
1193450-18157-00 CIRCLIPCIRCLIP
