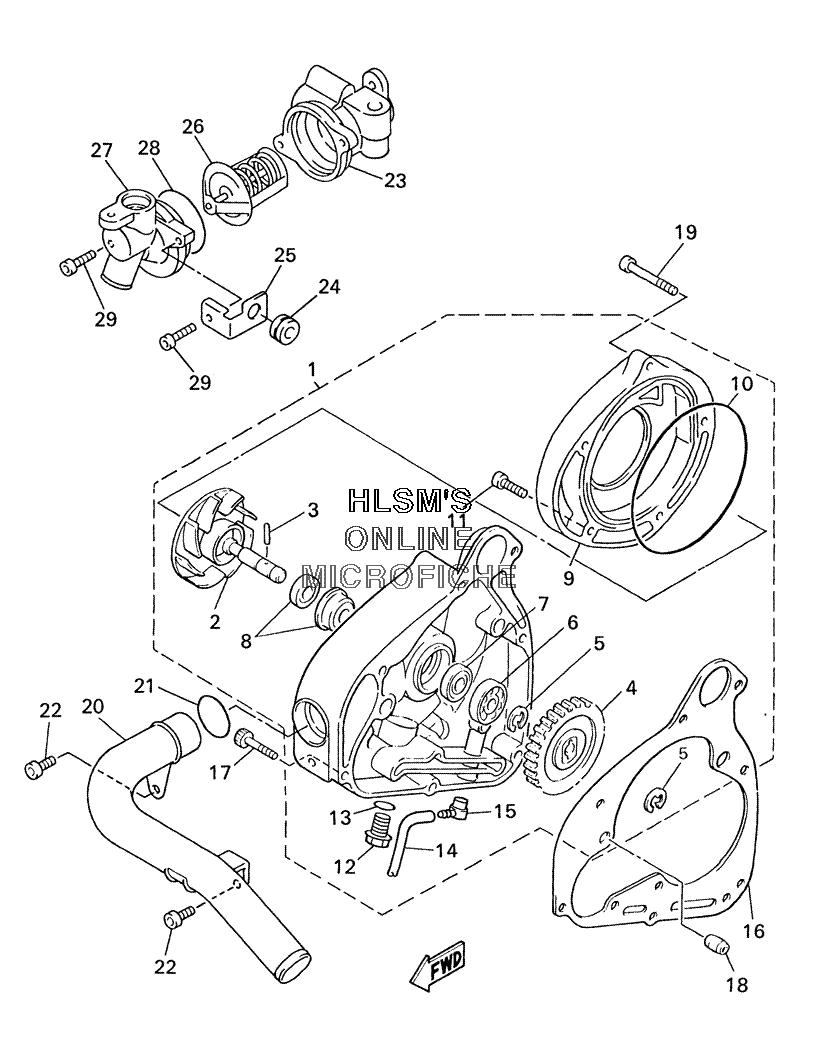

WATER PUMP для Yamaha ROYAL STAR VENTURE - 2005 года выпуска`
-
№АртикулНазвание
-
14NK-12420-03-00 WATER PUMP ASSY.WATER PUMP ASSY.
-
21FK-12450-00-00 ...IMPELLER SHAFT ASSY....IMPELLER SHAFT ASSY.
-
393603-14026-00 ...PIN, DOWEL...PIN, DOWEL
-
426H-12459-00-00 ...GEAR, IMPELLER SHAFT (31T)...GEAR, IMPELLER SHAFT (31T)
-
599009-10400-00 ...CIRCLIP...CIRCLIP
-
693306-00006-00 ...BEARING (B6000)...BEARING (B6000)
-
793101-10090-00 ...OIL SEAL, S-TYPE...OIL SEAL, S-TYPE
-
811H-12438-10-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
94NK-W1241-02-00 ...COVER, HOUSING...COVER, HOUSING
-
1093211-16591-00 ...O-RING...O-RING
-
1191314-06030-00 ...BOLT...BOLT
-
1290340-14132-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
13214-11198-01-00 ...GASKET...GASKET
-
1490445-05278-00 ...HOSE...HOSE
-
15353-13552-01-00 ...NOZZLE...NOZZLE
-
164NK-12449-00-00 GASKET, WATER PUMPGASKET, WATER PUMP
-
1791314-06025-00 BOLTBOLT
-
1899530-10114-00 PIN, DOWELPIN, DOWEL
-
1991314-06080-00 BOLTBOLT
-
204XY-12483-00-00 PIPE 3PIPE 3
-
2193210-23787-00 O-RINGO-RING
-
2291314-06014-00 BOLTBOLT
-
234XY-12417-00-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
2490480-10517-00 GROMMETGROMMET
-
254XY-1244E-00-00 BRACKET 1BRACKET 1
-
261AE-12410-00-00 THERMOSTAT ASSY.THERMOSTAT ASSY.
-
274XY-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
2893210-49046-00 O-RINGO-RING
-
2991317-06020-00 BOLTBOLT
