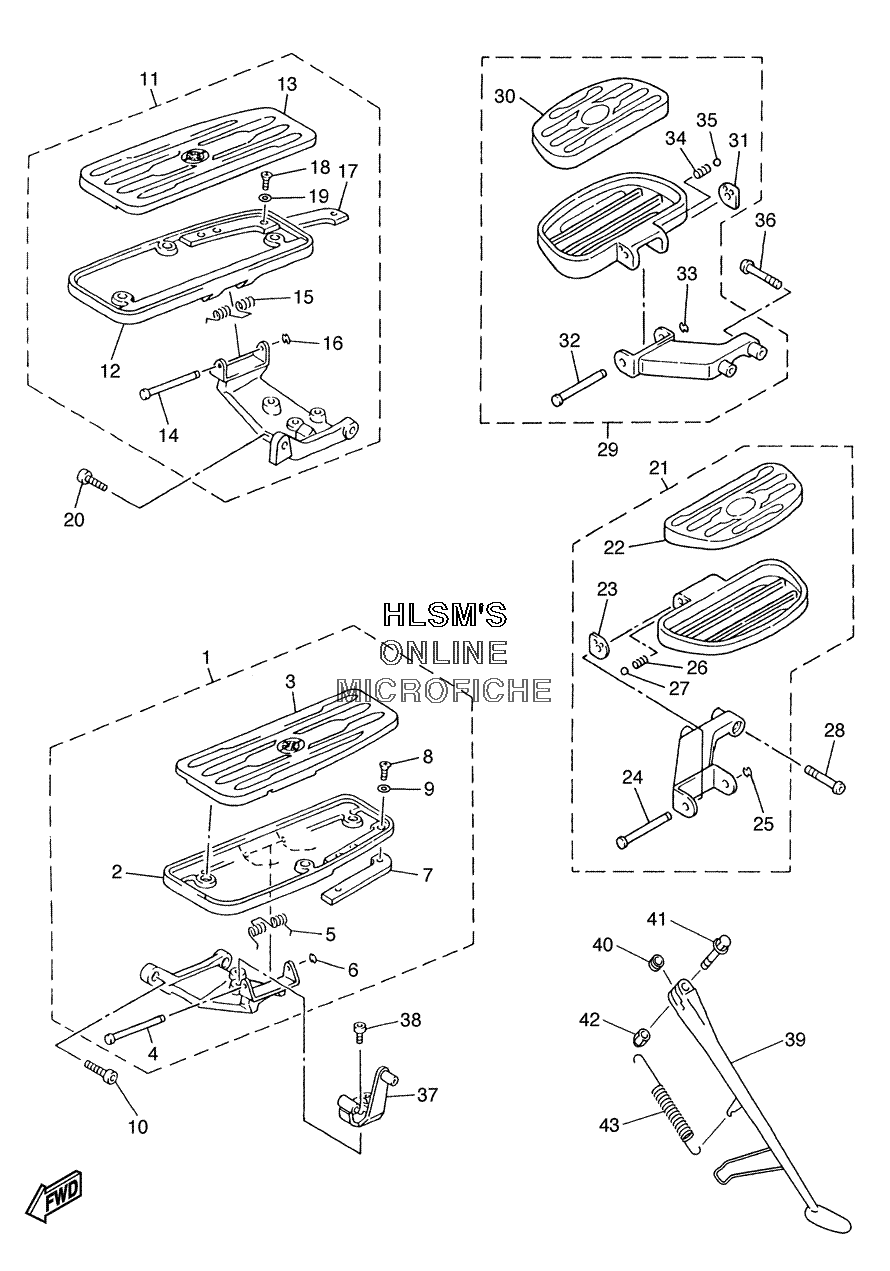

STAND W/ FOOTREST для Yamaha ROYAL STAR VENTURE - 2005 года выпуска`
-
№АртикулНазвание
-
14XY-27410-10-00 FRONT FOOTREST ASSY. (LEFT)FRONT FOOTREST ASSY. (LEFT)
-
24NK-27451-10-00 ...FOOTREST...FOOTREST
-
34XY-27413-01-00 ...COVER, FOOTREST...COVER, FOOTREST
-
44NK-27427-00-00 ...SHAFT...SHAFT
-
54NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
699001-06600-00 ...CIRCLIP...CIRCLIP
-
74NK-27496-00-00 ...MOLE 1...MOLE 1
-
890157-05095-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
992907-05200-00 ...WASHER...WASHER
-
1090110-10161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
114XY-27420-10-00 FRONT FOOTREST ASSY. (RIGHT)FRONT FOOTREST ASSY. (RIGHT)
-
124NK-27461-10-00 ...FOOTREST...FOOTREST
-
134XY-27423-01-00 ...COVER, FOOTREST...COVER, FOOTREST
-
144NK-27427-00-00 ...SHAFT...SHAFT
-
154NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
1699001-06600-00 ...CIRCLIP...CIRCLIP
-
174NK-27497-00-00 ...MOLE 2...MOLE 2
-
1890157-05095-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1992907-05200-00 ...WASHER...WASHER
-
2090110-10161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
214XY-27430-00-00 REAR FOOTREST ASSY. 1REAR FOOTREST ASSY. 1
-
224YE-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
234YE-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
244YE-27427-00-00 ...SHAFT...SHAFT
-
2599001-06600-00 ...CIRCLIP...CIRCLIP
-
2690501-13720-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2793501-04011-00 ...BALL 1/4...BALL 1/4
-
2892017-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
294XY-27440-00-00 REAR FOOTREST ASSY. 2REAR FOOTREST ASSY. 2
-
304YE-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
314YE-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
324YE-27427-00-00 ...SHAFT...SHAFT
-
3399001-06600-00 ...CIRCLIP...CIRCLIP
-
3490501-13720-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
3593501-04011-00 ...BALL 1/4...BALL 1/4
-
3692017-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
374NK-27443-00-00 BRACKET 3BRACKET 3
-
3891317-08014-00 BOLTBOLT
-
394XY-27311-00-00 STAND, SIDESTAND, SIDE
-
4090387-1215U-00 COLLARCOLLAR
-
4190105-12460-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4290185-12134-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4390506-35474-00 SPRING, TENSIONSPRING, TENSION
