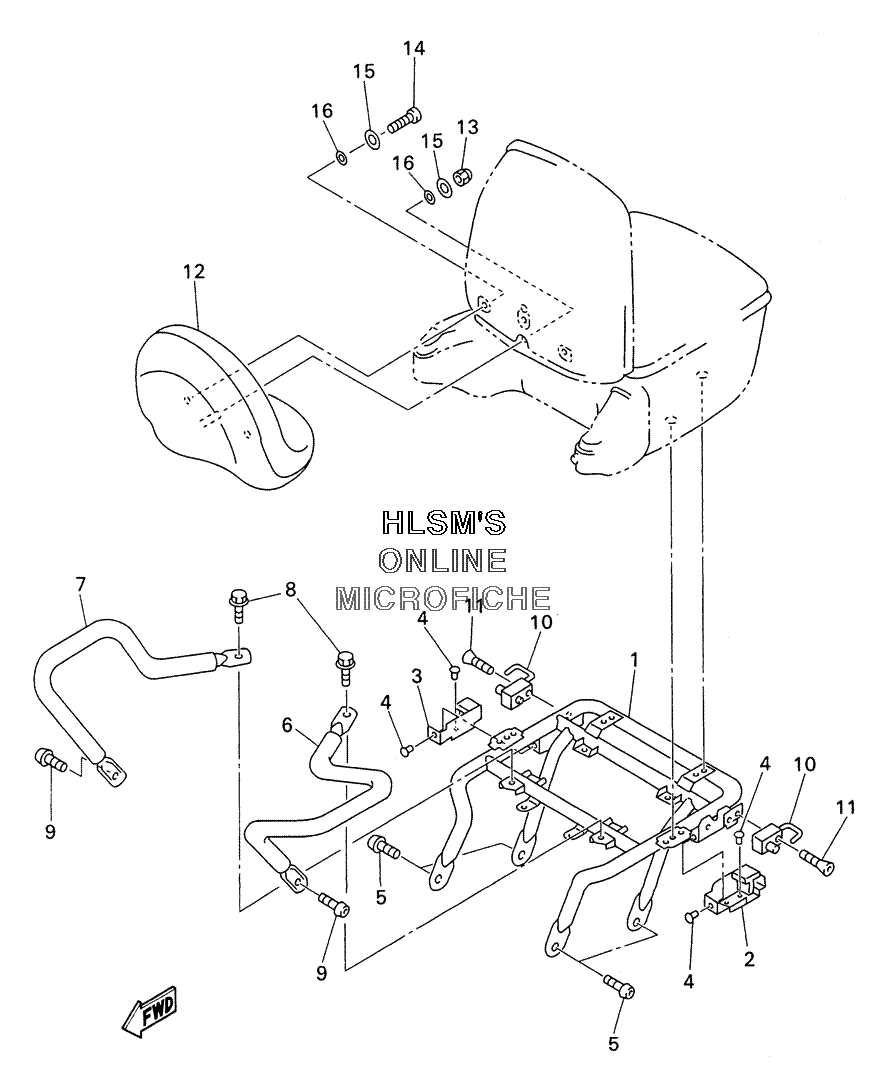

TRAVEL BAG 2 для Yamaha ROYAL STAR VENTURE - 2005 года выпуска`
-
№АртикулНазвание
-
14XY-28475-01-00 FRAME, TRAVEL TRUNKFRAME, TRAVEL TRUNK
-
24XY-2845K-00-00 PLATE, RUBBER 10PLATE, RUBBER 10
-
34XY-2846J-00-00 PLATE, RUBBER 6PLATE, RUBBER 6
-
490269-05039-00 RIVETRIVET
-
592014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
64XY-2474A-00-00 ASSIST, GRIPASSIST, GRIP
-
74XY-2474W-00-00 ASSIST, GRIP 2ASSIST, GRIP 2
-
895024-08020-00 BOLT, FLANGEBOLT, FLANGE
-
992014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
104R8-21398-00-00 HANGER, HELMETHANGER, HELMET
-
1190149-06154-00 SCREWSCREW
-
124XY-2840F-20-00 BACK REST ASSY.BACK REST ASSY.
-
1395307-06800-00 NUTNUT
-
1498907-06016-00 SCREW, BINDSCREW, BIND
-
1590201-065G8-00 WASHER, PLATEWASHER, PLATE
-
1690202-06058-00 WASHER, PLATEWASHER, PLATE
