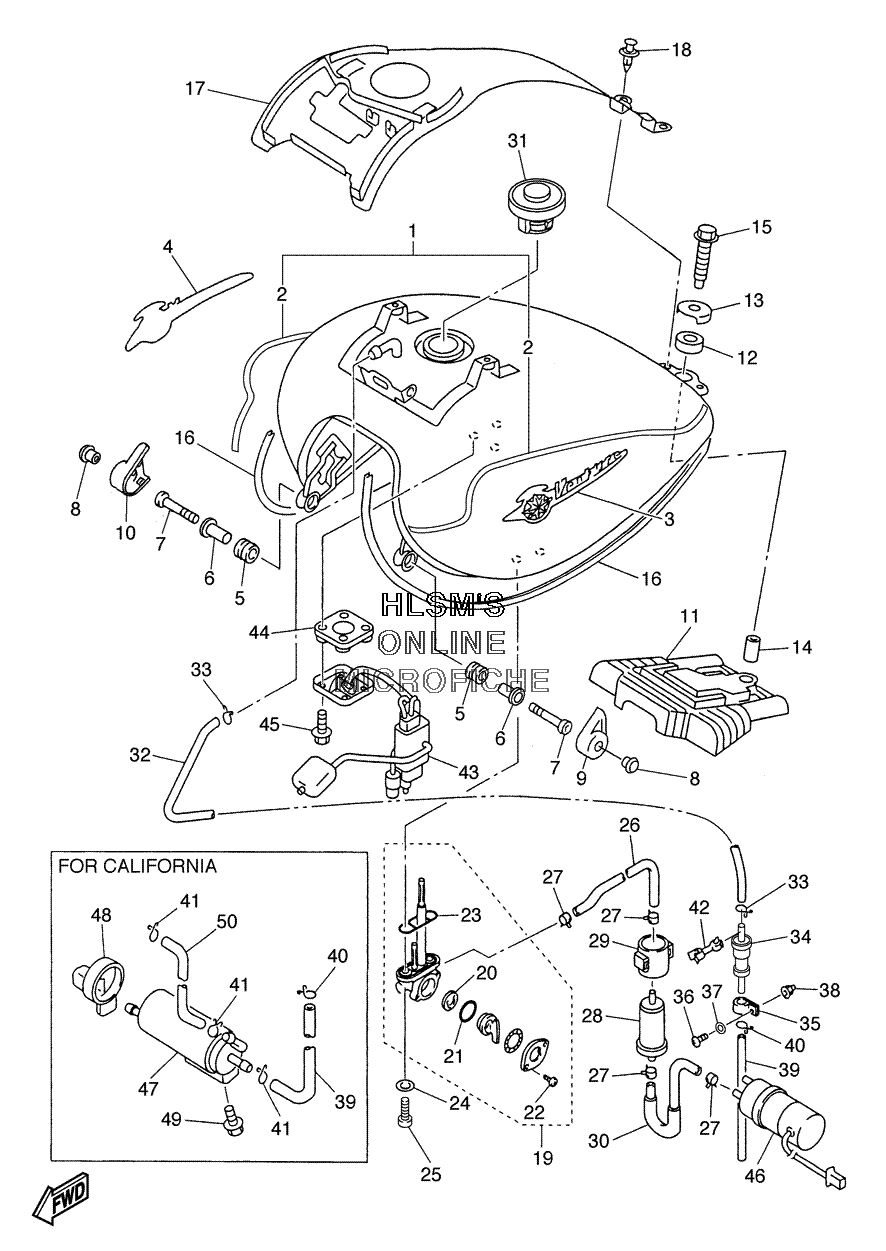

FUEL TANK для Yamaha ROYAL STAR VENTURE - 2005 года выпуска`
-
№АртикулНазвание
-
14XY-Y2410-10-X2 FUEL TANK COMP. (S3)FUEL TANK COMP. (S3)
-
24XY-24240-80-00 ...GRAPHIC SET...GRAPHIC SET
-
34XY-2416B-00-00 EMBLEMEMBLEM
-
44XY-2417B-00-00 EMBLEMEMBLEM
-
590480-18354-00 GROMMETGROMMET
-
690387-06091-00 COLLARCOLLAR
-
791317-06035-00 BOLTBOLT
-
82H9-23469-00-00 CAP, BOLTCAP, BOLT
-
91D6-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
101D6-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
114XY-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
124XY-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1342X-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1490387-0813V-00 COLLARCOLLAR
-
1590109-08002-00 BOLTBOLT
-
164XY-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
174XY-2171A-00-00 COVER, TOPCOVER, TOP
-
1890269-07076-00 RIVETRIVET
-
194WM-24500-02-00 FUEL COCK ASSY. 1FUEL COCK ASSY. 1
-
203AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
213AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
2297801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
234X8-24512-00-00 ...O-RING...O-RING
-
2490202-05193-00 WASHER, PLATEWASHER, PLATE
-
2590149-06011-00 SCREWSCREW
-
264XY-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2790467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
281FK-24560-10-00 FILTER ASSY.FILTER ASSY.
-
291FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
304NK-24312-00-00 PIPE 2PIPE 2
-
314NK-24602-10-00 CAP ASSY.CAP ASSY.
-
321D6-24321-00-00 PIPE 10PIPE 10
-
3390467-09002-00 CLIPCLIP
-
345PX-24180-00-00 ROLL OVER VALVE ASSY.ROLL OVER VALVE ASSY.
-
3590461-15100-00 CLAMPCLAMP
-
3698507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3792907-05600-00 WASHER, PLATEWASHER, PLATE
-
3890176-05054-00 NUT, CROWNNUT, CROWN
-
3990445-116K9-00 HOSEHOSE
-
4090467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
4190467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
4290464-13103-00 CLAMPCLAMP
-
434XY-85752-00-00 SENDER UNIT ASSY., FUEL METERSENDER UNIT ASSY., FUEL METER
-
445G3-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
4590119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
464NK-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
474XY-24170-00-00 CANISTER ASSY.CANISTER ASSY.
-
482JU-2419E-00-00 COVER, CANISTERCOVER, CANISTER
-
4995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
5090445-117K0-00 HOSEHOSE
