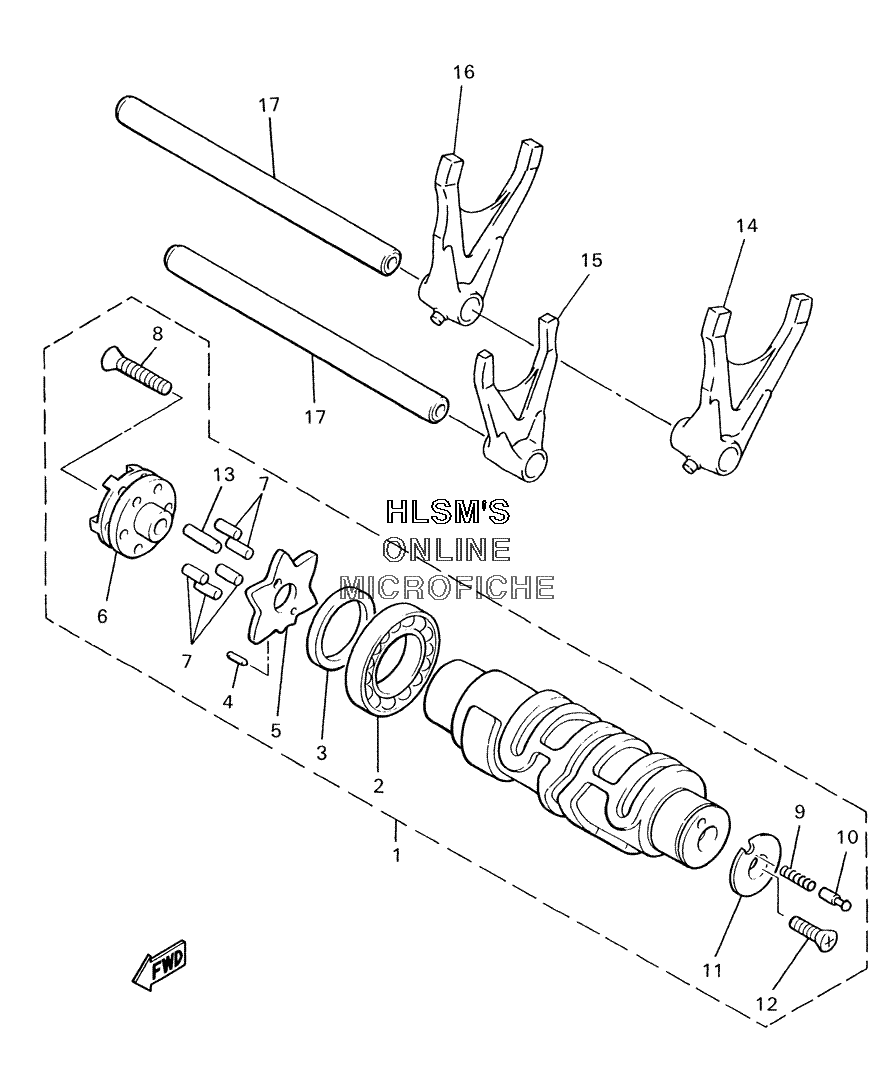

SHIFT CAM W/ FORK для Yamaha ROYAL STAR VENTURE - 2005 года выпуска`
-
№АртикулНазвание
-
14NK-18540-03-00 SHIFT CAM ASSY.SHIFT CAM ASSY.
-
293306-90602-00 ...BEARING...BEARING
-
390560-30234-00 ...SPACER...SPACER
-
493603-10049-00 ...PIN, DOWEL...PIN, DOWEL
-
54NK-18141-00-00 ...PLATE, STOPPER...PLATE, STOPPER
-
64NK-18185-00-00 ...SEGMENT...SEGMENT
-
793604-12037-00 ...PIN, DOWEL...PIN, DOWEL
-
890151-06013-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
990501-06022-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
104UN-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
114UN-18566-00-00 ...PLATE, SIDE 2...PLATE, SIDE 2
-
1290149-05321-00 ...SCREW...SCREW
-
1393604-16092-00 ...PIN, DOWEL...PIN, DOWEL
-
144NK-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
154NK-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
164NK-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
174NK-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
