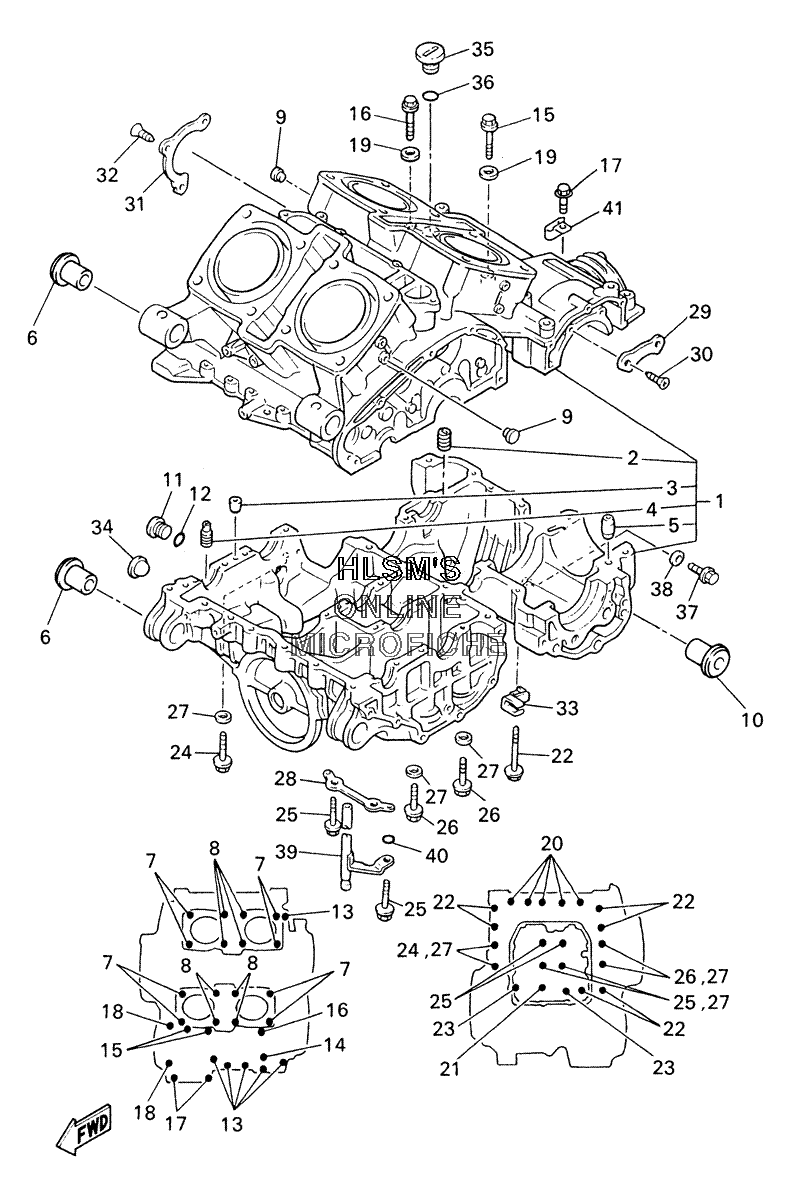

CRANKCASE для Yamaha ROYAL STAR VENTURE - 2005 года выпуска`
-
№АртикулНазвание
-
14XY-15100-20-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
226H-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
326H-15148-00-00 ...NOZZLE 2...NOZZLE 2
-
44G0-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
599530-10114-00 ...PIN, DOWEL...PIN, DOWEL
-
64XY-15541-00-00 COLLARCOLLAR
-
790116-10411-00 BOLT, STUDBOLT, STUD
-
890116-10429-00 BOLT, STUDBOLT, STUD
-
990338-11152-00 PLUGPLUG
-
104XY-15542-00-00 COLLAR 2COLLAR 2
-
114H7-15189-00-00 PLUGPLUG
-
1293210-22382-00 O-RINGO-RING
-
1395814-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1495814-06070-00 BOLT, FLANGEBOLT, FLANGE
-
1595814-06090-00 BOLT, FLANGEBOLT, FLANGE
-
1695817-06095-00 BOLT, FLANGEBOLT, FLANGE
-
1795814-08045-00 BOLT, FLANGEBOLT, FLANGE
-
1895814-08080-00 BOLT, FLANGEBOLT, FLANGE
-
1990430-06166-00 GASKETGASKET
-
2095817-08050-00 BOLT, FLANGEBOLT, FLANGE
-
2195817-08065-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2295814-08080-00 BOLT, FLANGEBOLT, FLANGE
-
2395817-08095-00 BOLT, FLANGEBOLT, FLANGE
-
2490109-103G0-00 BOLTBOLT
-
2590105-10248-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2690105-10249-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2790201-11597-00 WASHER, PLATEWASHER, PLATE
-
2826H-15113-00-00 PLATEPLATE
-
2926H-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3090149-08152-00 SCREWSCREW
-
3126H-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3290151-06041-00 SCREW, FLATHEADSCREW, FLATHEAD
-
3390465-08233-00 CLAMPCLAMP
-
342H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
354NK-15363-00-00 PLUG, OILPLUG, OIL
-
3693210-27370-00 O-RINGO-RING
-
3795807-12016-00 BOLT, FLANGEBOLT, FLANGE
-
3890201-12790-00 WASHER, PLATEWASHER, PLATE
-
3926H-15373-00-00 PIPE, BREATHERPIPE, BREATHER
-
4093210-06667-00 O-RINGO-RING
-
4190461-14150-00 CLAMPCLAMP
