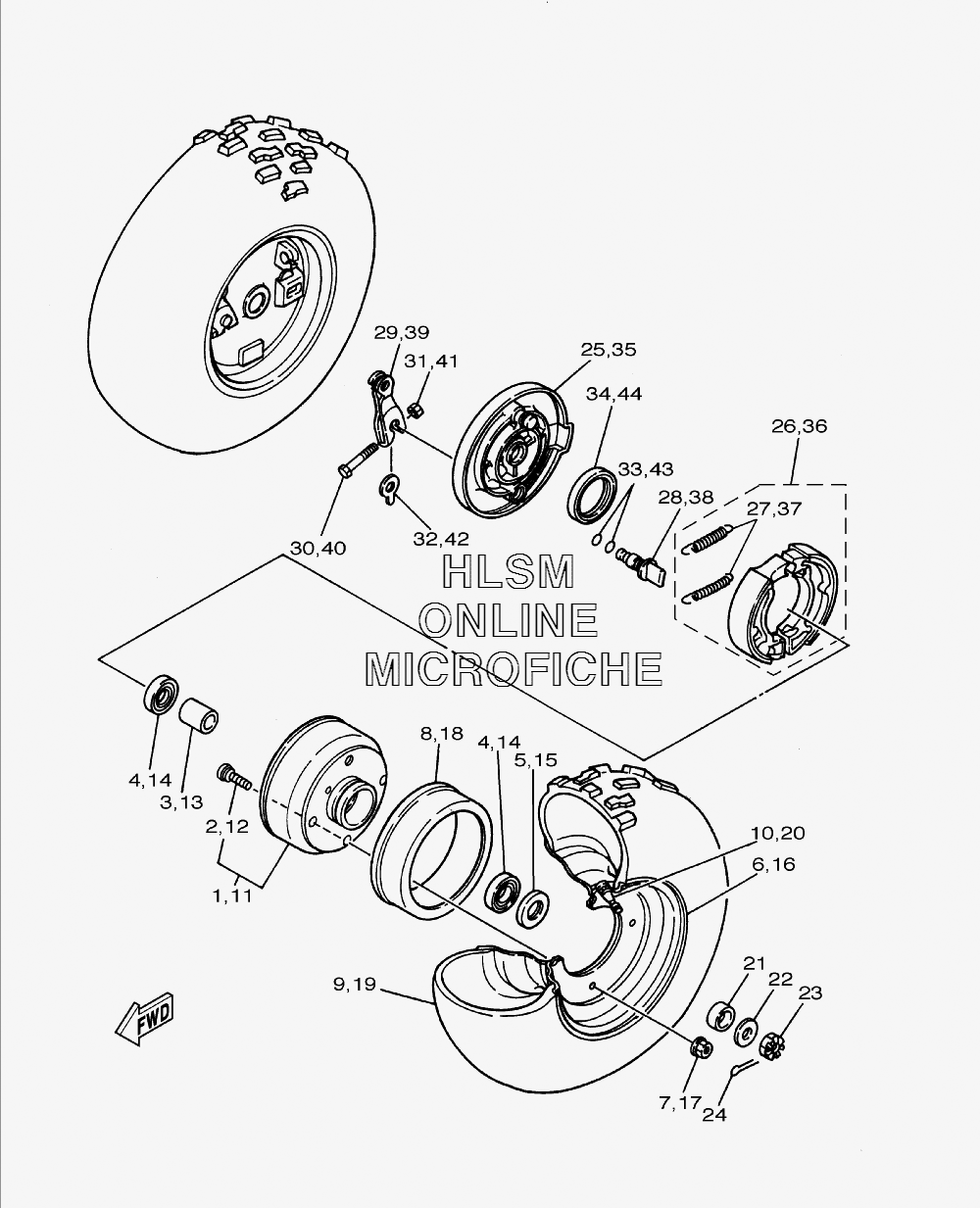

WHEEL - FRONT W/ AXLE ASSY для Yamaha RAPTOR 50 - 2007 года выпуска`
-
№АртикулНазвание
-
12FJ-25111-00-00 HUB, FRONTHUB, FRONT
-
290109-08745-00 ...BOLT...BOLT
-
33FA-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
493306-00308-00 BEARINGBEARING
-
593102-23275-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
62FJ-25180-00-35 WHEEL COMP. (SL FOR DPBSE, PGD)WHEEL COMP. (SL FOR DPBSE, PGD)
-
795707-08500-00 NUT, FLANGENUT, FLANGE
-
83GB-25185-00-00 RING 1RING 1
-
994107-07008-00 TIRE (AT16 X 7 KT145 TL) DUNLOPTIRE (AT16 X 7 KT145 TL) DUNLOP
-
1093900-00022-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
112FJ-25111-00-00 HUB, FRONTHUB, FRONT
-
1290109-08745-00 ...BOLT...BOLT
-
133FA-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1493306-00308-00 BEARINGBEARING
-
1593102-23275-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
162FJ-25180-00-35 WHEEL COMP. (SL FOR DPBSE, PGD)WHEEL COMP. (SL FOR DPBSE, PGD)
-
1795707-08500-00 NUT, FLANGENUT, FLANGE
-
183GB-25185-00-00 RING 1RING 1
-
1994107-07008-00 TIRE (AT16 X 7 KT145 TL) DUNLOPTIRE (AT16 X 7 KT145 TL) DUNLOP
-
2093900-00022-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
2190387-175R2-00 COLLARCOLLAR
-
2290201-14586-00 WASHER, PLATEWASHER, PLATE
-
2390171-14020-00 NUT, CASTLENUT, CASTLE
-
2491401-30025-00 PIN, SPLITPIN, SPLIT
-
252FJ-25121-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
264KN-W253E-11-00 BRAKE SHOE KITBRAKE SHOE KIT
-
2790506-15260-00 ...SPRING, TENSION...SPRING, TENSION
-
283GB-25151-00-00 CAMSHAFTCAMSHAFT
-
292FJ-25155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
3090101-06278-00 BOLTBOLT
-
3195307-06600-00 NUTNUT
-
3252H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
3393210-12327-00 O-RINGO-RING
-
3493102-40367-00 OIL SEALOIL SEAL
-
352FJ-25169-00-00 PLATE, BRAKE SHOE 2PLATE, BRAKE SHOE 2
-
364KN-W253E-11-00 BRAKE SHOE KITBRAKE SHOE KIT
-
3790506-15260-00 ...SPRING, TENSION...SPRING, TENSION
-
383GB-25151-00-00 CAMSHAFTCAMSHAFT
-
392FJ-25156-00-00 LEVER, CAMSHAFT 2LEVER, CAMSHAFT 2
-
4090101-06278-00 BOLTBOLT
-
4195307-06600-00 NUTNUT
-
4252H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
4393210-12327-00 O-RINGO-RING
-
4493102-40367-00 OIL SEALOIL SEAL
